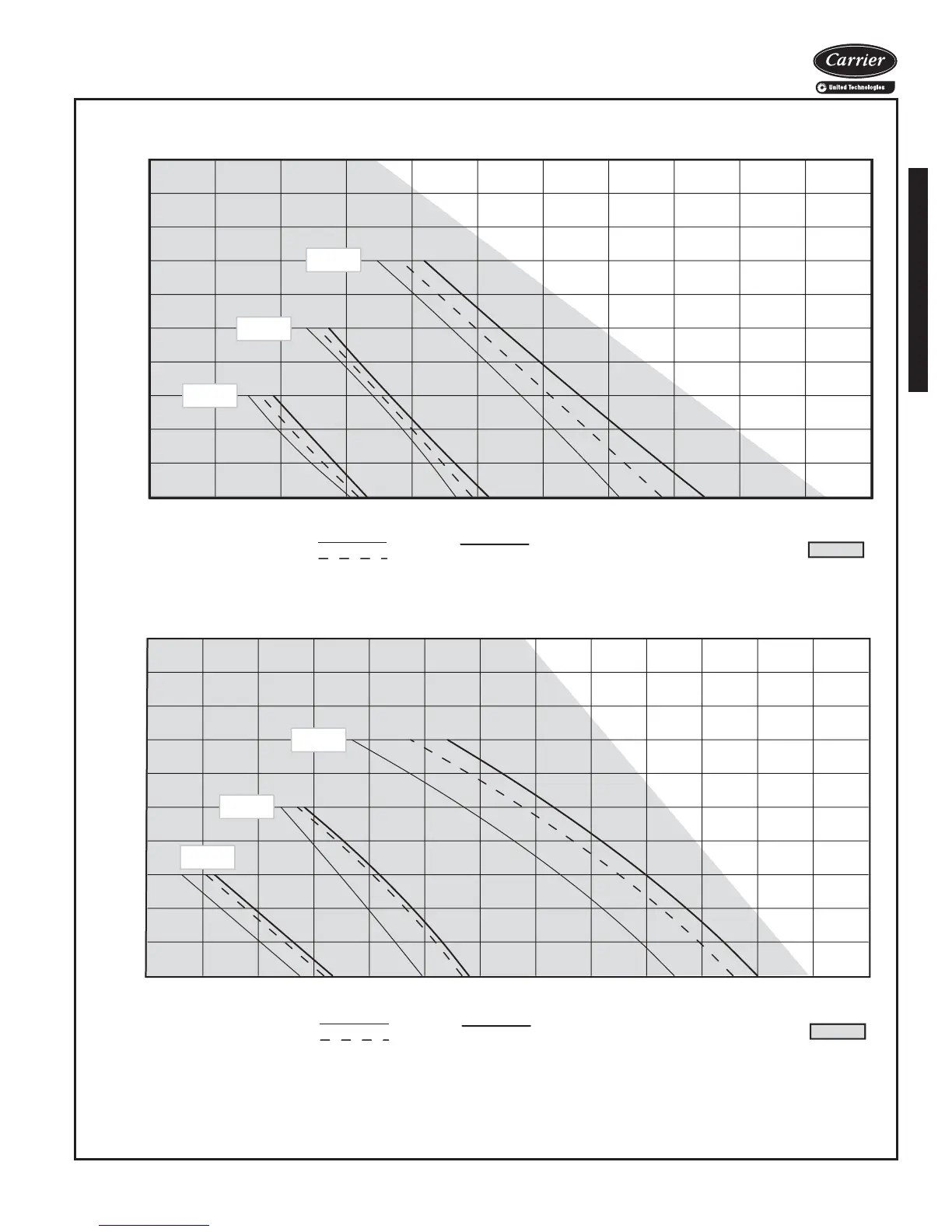

AIR DELIVERY FAN CURVES (cont)
42CE SERIES — 04 UNIT SIZE
42CE SERIES — 06 UNIT SIZE
0
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
0.50
100 150 200 250 300 350 400 450 500 550 600 650
ESP (in. wg)
SCFM
ECM Operating Range:
Low
Med
High
PSC Motor Fan Curve: 3-Row-5-Row
4-Row
SCFM
PSC Motor Fan Curve: 3-Row 5-Row
4-Row
0
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
0.50
100 150 200 250 300 350 400 450 500 550 600 650 700 750
ESP (in.wg)
ECM Operating Range:
Low
Med
High
LEGEND
ECM Electronically Commutated Motor
ESP External Static Pressure
PSC Permanent Split Capacitor
SCFM Square Cubic Feet per Minute
