Table 7.1: Other Regions
Rated Current of
Appliance (A)
Nominal Cross-Sectional
Area (mm²)
6 0.75
6 - 10 1
10 - 16 1.5
16 - 25 2.5
25- 32 4
32 - 45 6
b. Using wire strippers, strip the rubber
jacket from both ends of signal cable
to reveal about 15cm (5.9”) of the
wires inside.
c. Strip the insulation from the ends of
the wires.
d. Using a wire crimper, crimp u-lugs on
the ends of the wires.
NOTE: While connecting the wires, please
strictly follow the wiring diagram (found
inside the electrical box cover).

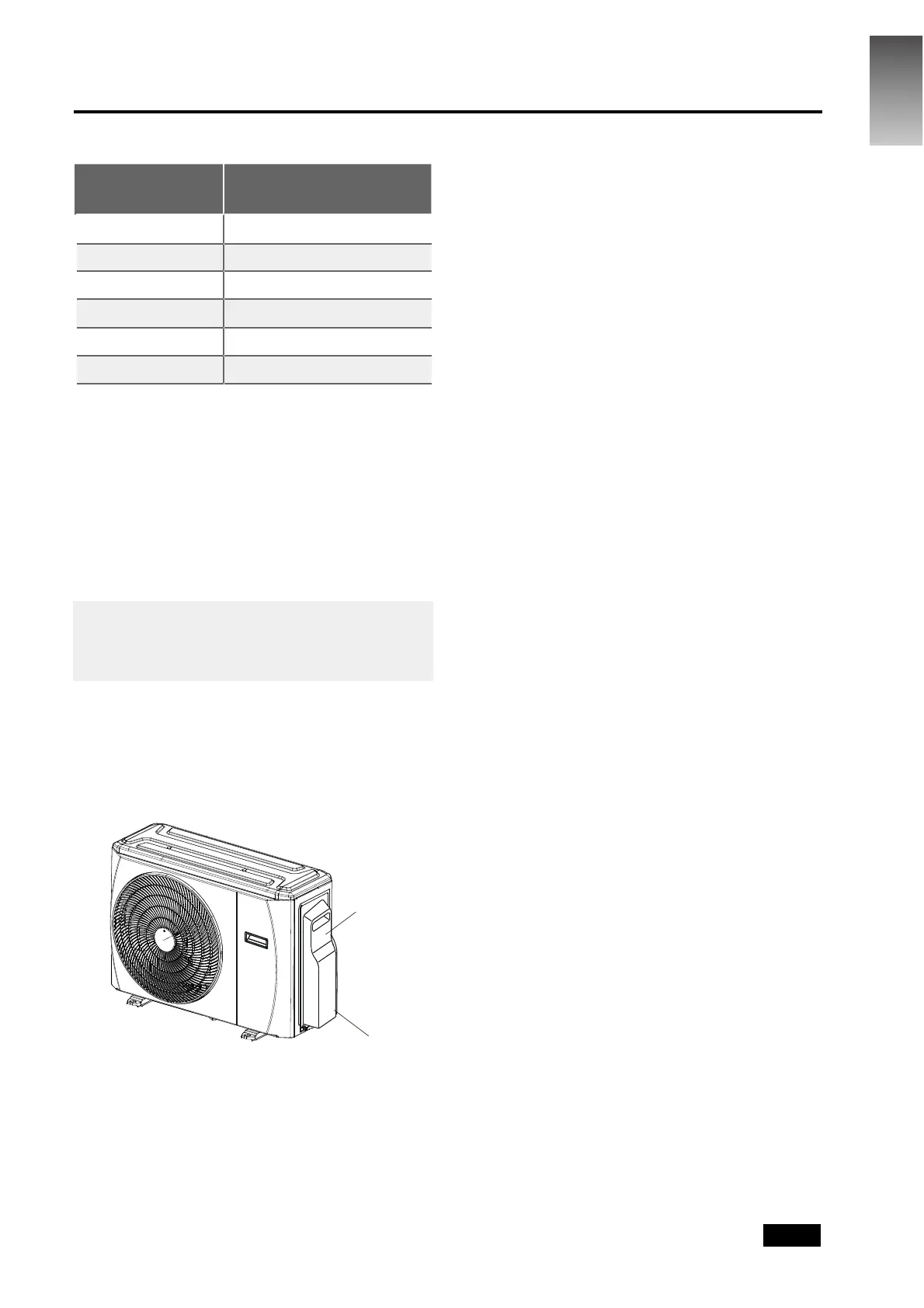

2.Remove the electric cover of the outdoor
unit. If there is no cover on the outdoor
unit, disassemble the bolts from the
maintenance board and remove the
protection board. (See Fig. 8.1)
Cover
Screw
Fig. 7.1
3. Connect the u-lugs to the terminals
Match the wire colors/labels with the
labels on the terminal block, and firmly
screw the u-lug of each wire to its
corresponding terminal.
4. Clamp down the cable with designated
cable clamp.
5. Insulate unused wires with electrical tape.
Keep them away from any electrical or
metal parts.
6. Reinstall the cover of the electric control
box.
7. WIRING
GB
To Next Page
