6
12
43
x
y
C00070

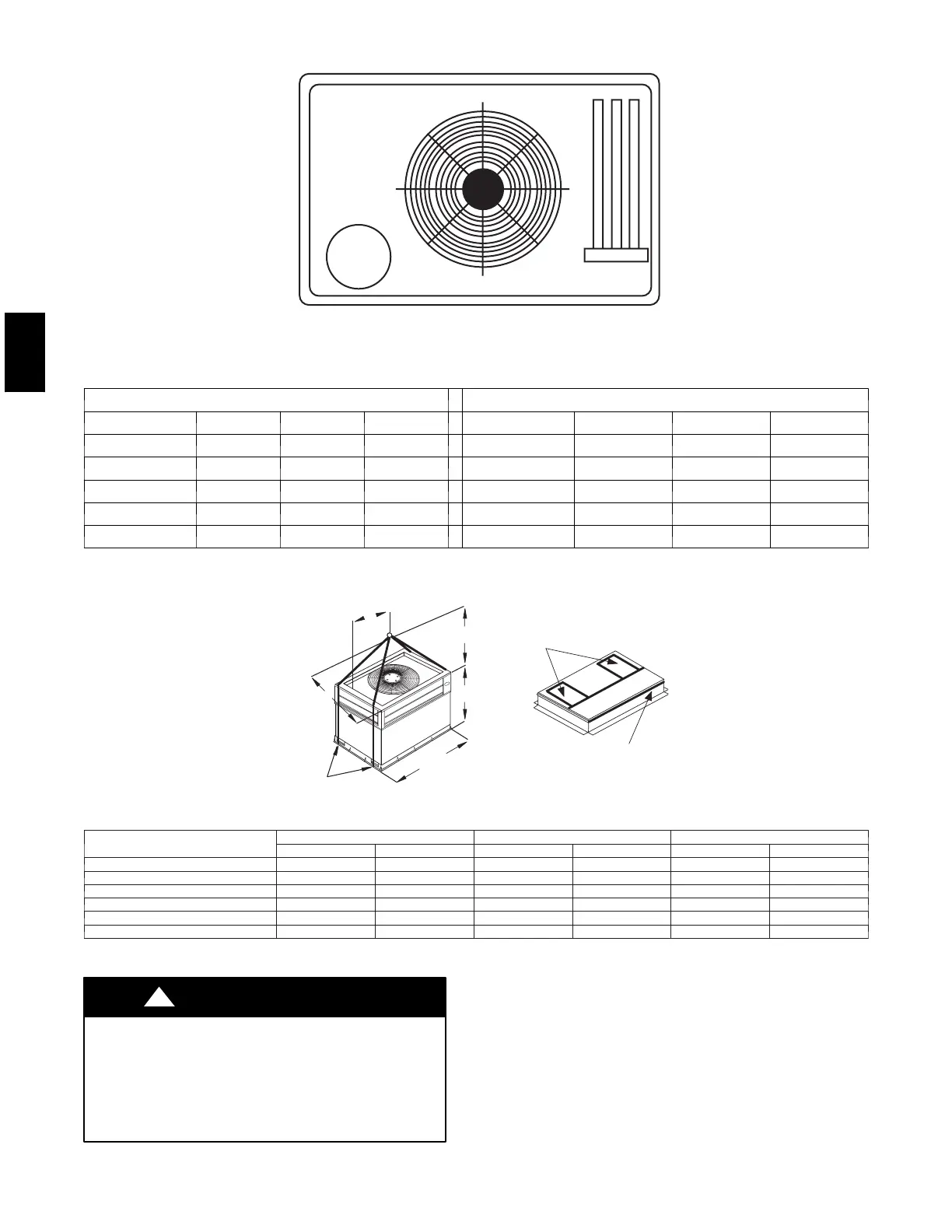

CORNER WEIGHTS (SMALL CABINET) CORNER WEIGHTS (LARGE CABINET)
Unit 024 030 036 Unit 042 048 060
Total Weight 350 350 388 Total Weight 440 463 499
Corner Weight 1 70 70 78 Corner Weight 1 88 92 100
Corner Weight 2 54 54 60 Corner Weight 2 68 72 78
Corner Weight 3 84 84 94 Corner Weight 3 106 111 120
Corner Weight 4 141 141 156 Corner Weight 4 177 188 201
Fig. 5 -- 48XP Corner Weights
A
1226.3
(48.28”)
914-1371
(36”-54”)
927.57
(36”-52”)
PLACE RIGGING STRAPS IN
BASEPAN SLOT (BELOW HANDHOLDS)
BEFORE RIGGING
SEAL STRIP MUST BE IN
PLACE BEFORE PLACING
UNIT ON ROOF CURB
DUCTS
B
C99015
UNIT 48XP
MAXIMUM SHIPPING WEIGHT A B
lb kg in. mm in. mm
024 372 169 22.0 558.5 14.50 368.3
030 372 169 22.0 558.5 14.50 368.3
036 410 186 22.0 558.5 15.30 388.6
042 462 210 20.0 508.0 21.25 539.8
048 485 220 21.5 546.1 16.3 414.0
060 521 236 23.5 596.9 16.3 414.3
Fig. 6 -- Suggested Rigging
PERSONAL INJURY HAZARD
Failure to follow this warning could result in personal
injury/death.
Accessory lifting kit is only to be used with Small Packaged
units which have a composite unit base with molded rigging
holds.
!
WARNING
Step 6 — Connect Condensate Drain
NOTE: When installing condensate drain connection be sure to
comply with local codes and restrictions.
Model 48XP disposes of condensate water through a 3/4 in. NPT
fitting which exits through the compressor access panel (See Fig.
2 and 3 for location).
Condensate water can be drained directly onto the roof in rooftop
installations (where permitted) or onto a gravel apron in
groundlevel installations. Install a field--supplied condensate trap
at end of condensate connection to ensure proper drainage. Make
sure that the outlet of the trap is at least 1 in. lower than the
48XP
