Carrier 59SC2A - Page 26

59SC2A
PERFORATED
DISCHARGE DUCT
FLANGE
5/ 46%
(8mm)
ff
1 8/4"
(44mm)
UPFLOW DOWNFLOW. HORIZONTAL
YES YES
YES YES
NO NO NO
A10493
YES

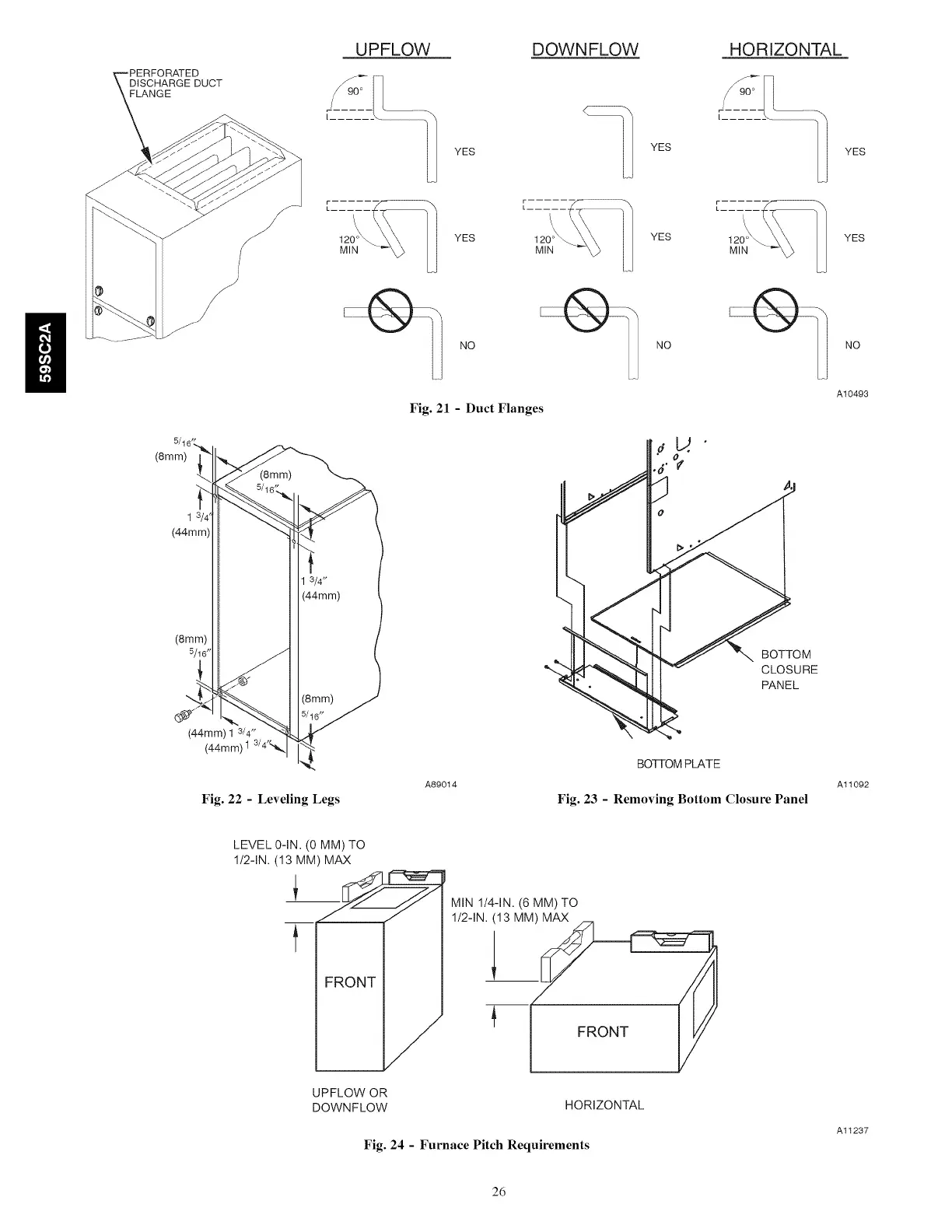

Fig. 21 - Duct Flanges
(8mm)
5/46”
BOTTOM
CLOSURE
y C PANEL
S<]
SF
(44mm) 1 3/4” kd
(44mm) 1 Sa ty
se BOTTOM PLATE
Aggo14 Ati092
Fig. 22 - Leveling Legs Fig. 23 - Removing Bottom Closure Panel
LEVEL 0-IN. (0 MM) TO
1/2-IN. (13 MM) MAX
1
CS)
ZO MIN 1/4-IN. (6 MM) TO
1/2-IN. (13 MM) MAX
FRONT
FRONT
UPFLOW OR
DOWNFLOW HORIZONTAL
A11287
Fig. 24 - Furnace Pitch Requirements
26
