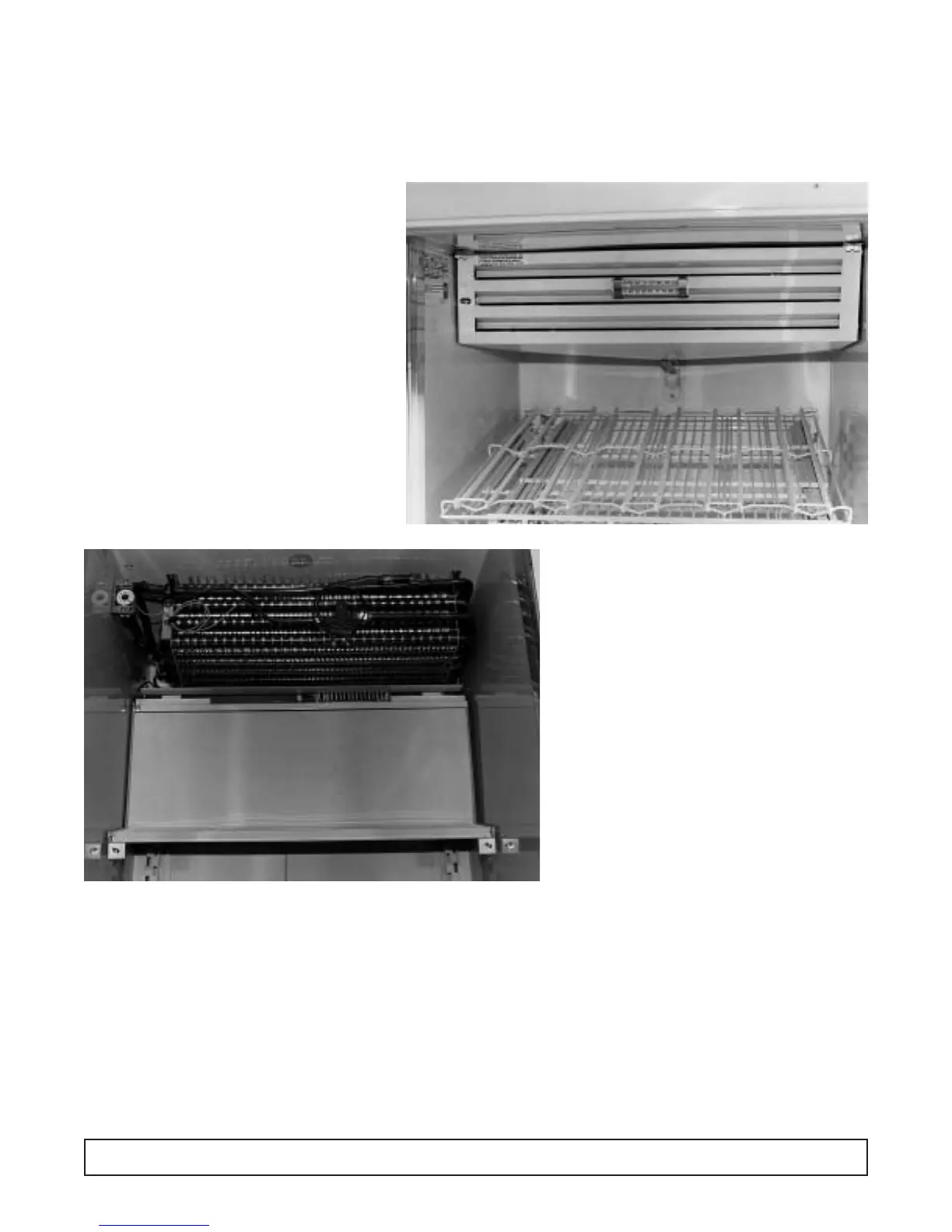

EVAPORATOR DRAIN PAN REPLACEMENT
The evaporator drain pan is located in the upper interior
of the cabinet. It pivots down for ease of accessibility.
1. Disconnect the power to the cabinet
2. Release R.H. and L.H. Lock screws.
3. Drop the front of the pan and swing it back.
4. Disconnect the ground wire.
5. Raise the pan, unhook from back.
6. Remove the drain line from the drain hole.
7. Remove the pan from the cabinet.
8. Reconnect the power to the cabinet.
54 MAINTENANCE & REPAIR
