71
CONNECTING ELECTRICAL WIRING
21-6 Ducted Split Systems – Medium Static Pressure
Cool Only – 220-240V / 1 Ph / 50Hz
53KDMT30N-718 53KDMT36N-718T

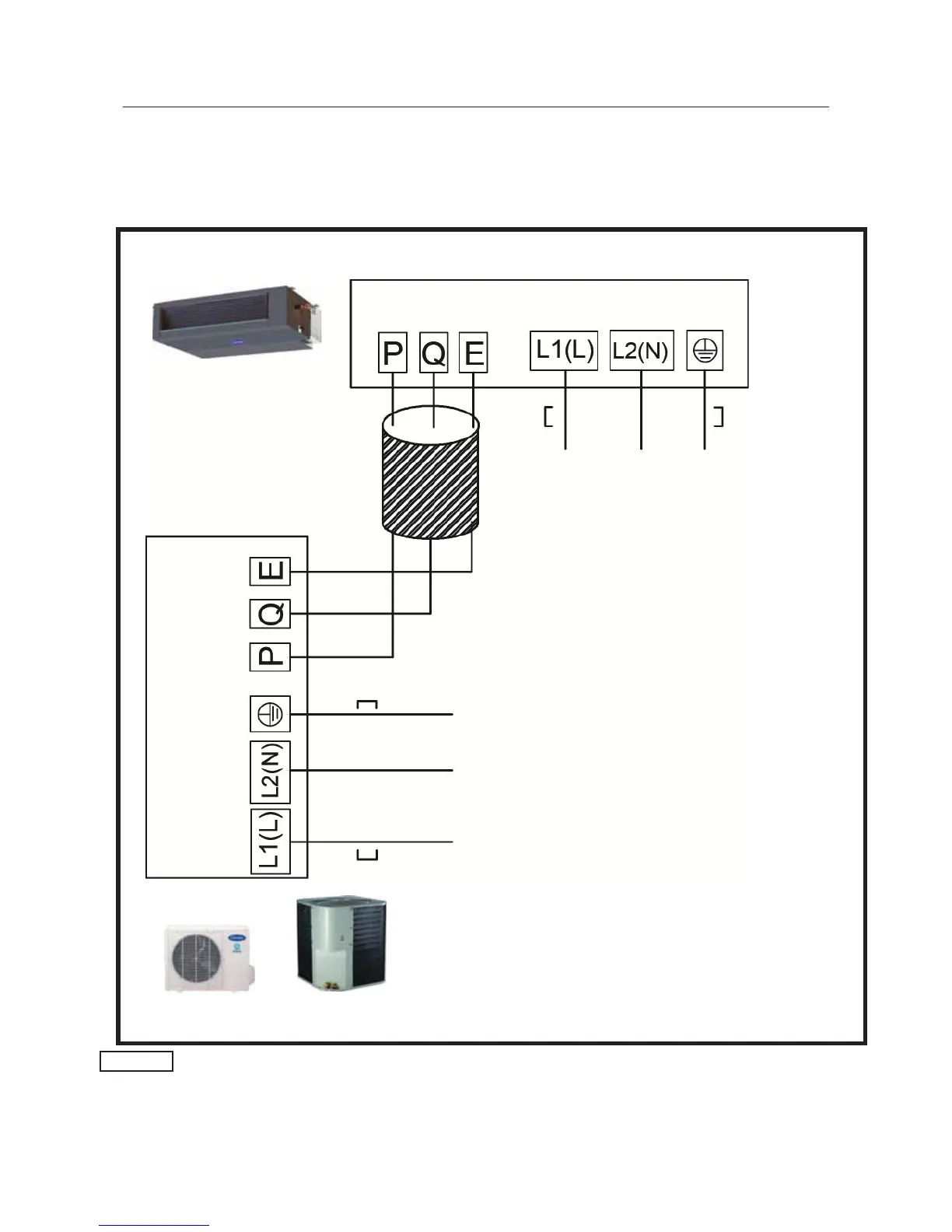

Caution – Field Electrical Wiring
NOTE
Refer to wiring diagrams and stickers-caution field electrical wiring sticked inside the outdoor and indoor units.
Outdoor Unit
38KDMT30N-718
Outdoor Unit
38KDMT36N-718T
Indoor Unit
Outdoor Unit
Use 3-core cable 3 x 0.2 mm
2
Power supply:
Single-
Phase 220~240V / 1Ph / 50Hz
Use 3-core cable 3 x 6 mm
2
Power supply:
Single-
Phase 220~240V / 1Ph / 50Hz
Use 3-core cable 3 x 1 mm
2
Indoor Units
42KDMT30N-718
42KDMT36N-718T
