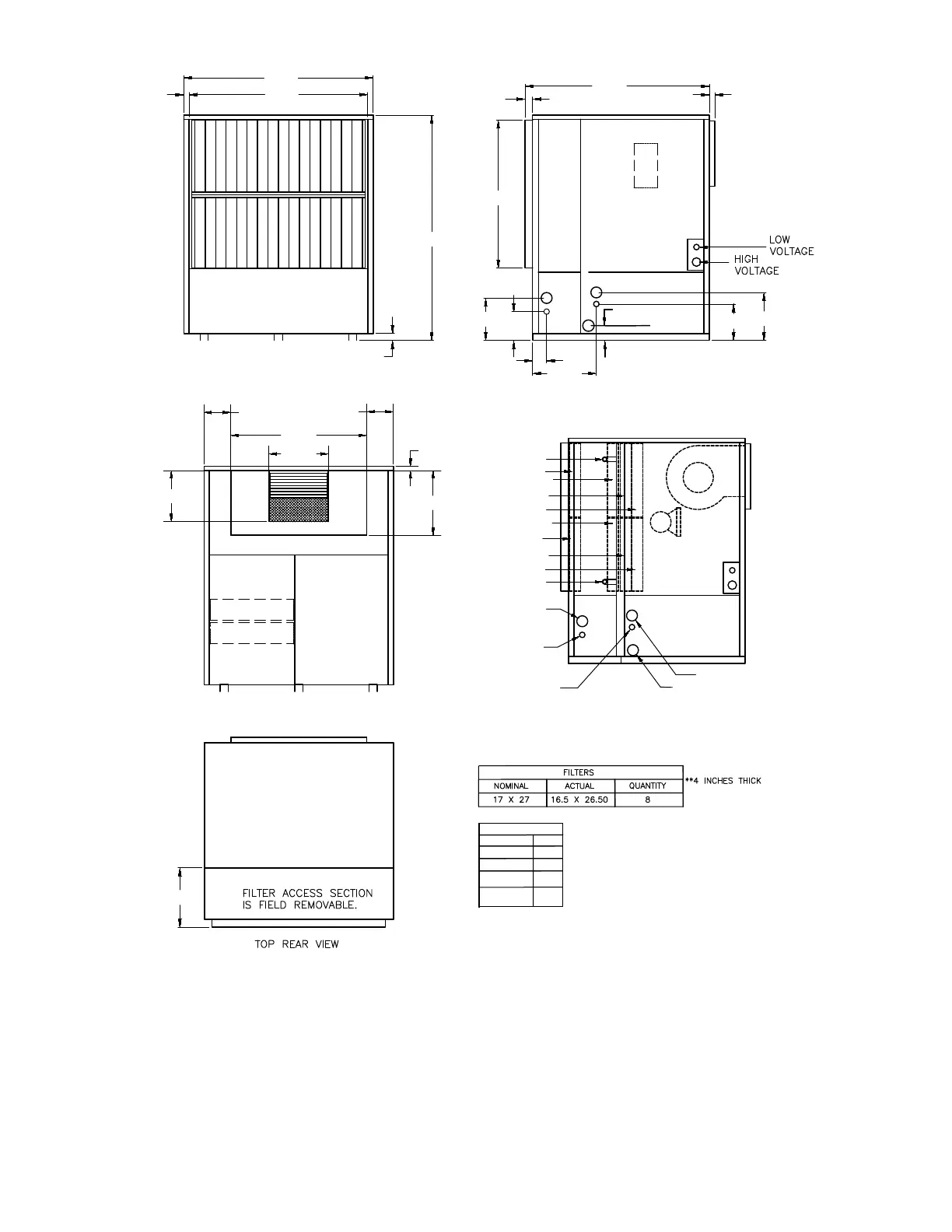

Fig. 9 — 50BVT, V, W034 (Low-Boy) Dimensions
Rear Return, Front Supply with Waterside Economizer
DRAIN*
PRE-COOLING
CONDENSATE*
H20 OUT*
H20 IN*
1.25
WATER CONNECTIONS
1.25
2.5
2.5
HW IN/OUT
(SWEAT)
1.38
REAR VIEW
RETURN AIR VIEW
LEFT SIDE VIEW
FRONT DISCHARGE
FRONT VIEW
LEFT SIDE VIEW
FRONT DISCHARGE
COMPRESSOR
ACCESS
EVAPORATOR
ACCESS
FILTER
ACCESS
VFD
BOX
BLOWER
SECTION
ACCESS
COMPRESSOR
ACCESS
*F.P.T. TYPE CONNECTION
CONTROL BOX
ELECTRICAL BOX
ELECTRICAL
BOX
ACCESS
HOT WATER OUT
FILTER ACCESS
ECONO COIL
DX EVAPORATOR
HOT WATER COIL
ECONO COIL
FILTER ACCESS
DX EVAPORATOR
HOT WATER COIL
HOT WATER IN
WATERSIDE ECONOMIZER
WATER IN
WATERSIDE ECONOMIZER
DRAIN
WATER OUT
CONDENSATE
DRAIN
64.75
65.50
81.50
3.75
13.00
15.00
10.75
8.75
1.50
21.75
WATER IN
65.50
69.50
2.00
9.88
49.75
2.88
23.25
1.50
21.75
18.75
5.00
2.00
23.75
9.88
NOTES:
1. Dimensions in inches [mm].
2. Recommended minimum service clearances are as
follows:
a. Front and rear — 30 [762]
b. Left or right side — 65 [1651] for coil removal
c. Side opposite coil removal — 20 [508]
3. For all other airflow configuration drawings see
SCUBuilder program.
