Carrier Omnizone 50BVC - Page 8

8

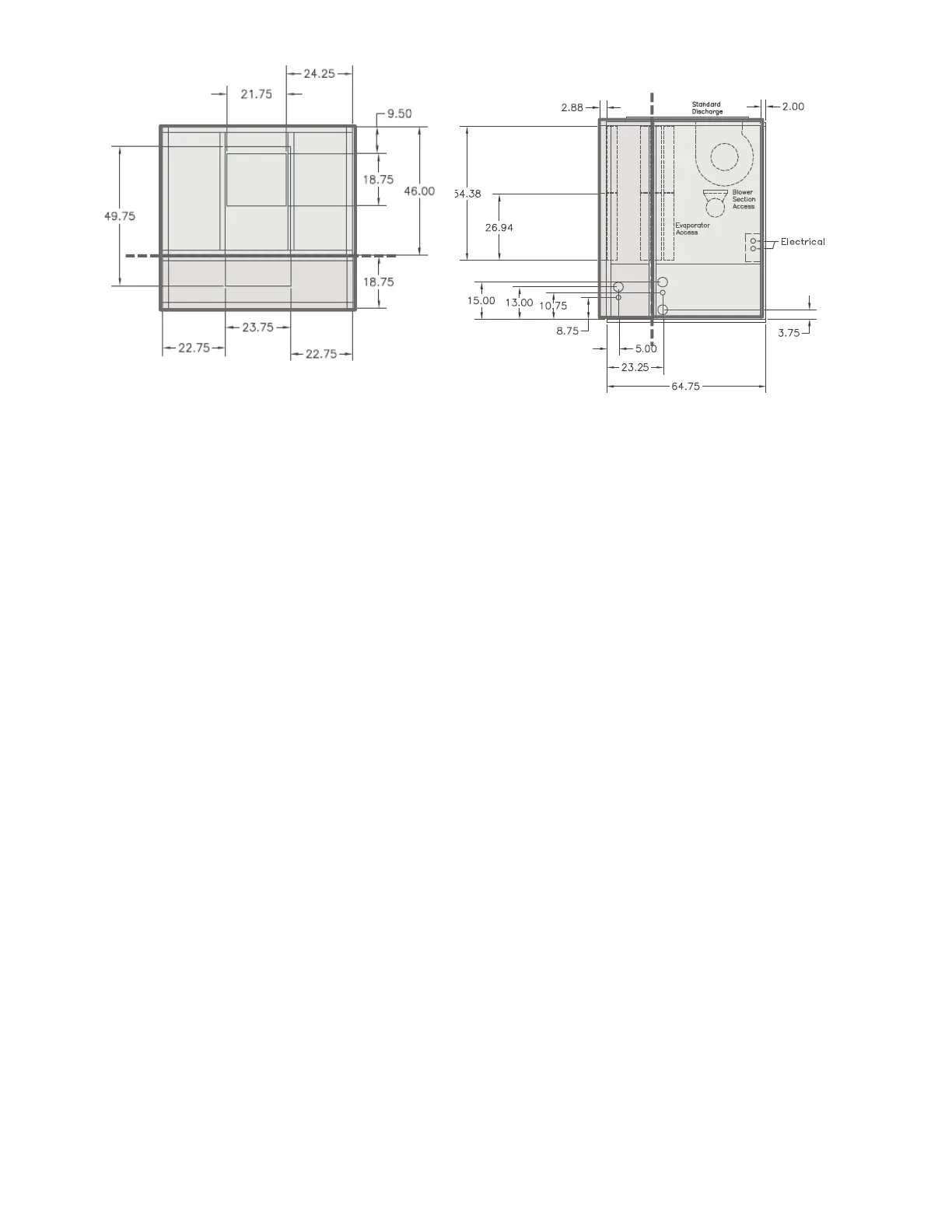

Fig. 4 — Low Boy Field Split - 30 Ton
1
1
2
2
NOTES:
1. The filter rack modules (item 2) can be field removed from the
compressor/ evaporator module to reduce unit size, as shown above.
2. Dimensions in inches.
