Carrier Omnizone 50BVC - Page 7

7

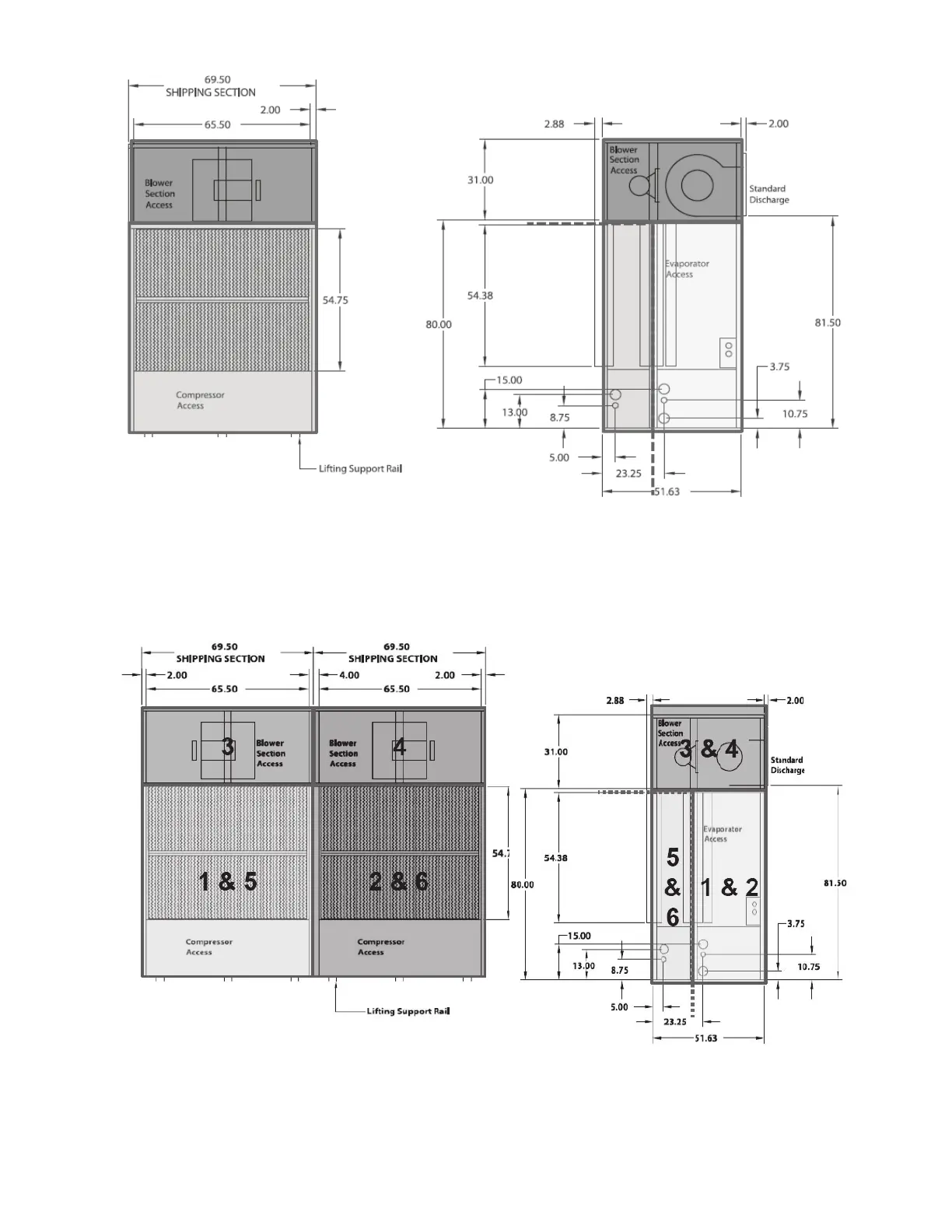

Fig. 2 — High Boy Field Split - 30 Ton
Fig. 3 — High Boy Field Split - 40-60 Ton
2
3
1&3
2
1
NOTES:
1. The filter rack modules (item 3) can be field removed from the
compressor/ evaporator module to reduce unit size, as shown above.
2. Dimensions in inches.
