GB - 2
Zone Manager
General information and characteristics
IMPORTANTE:
Read this instruction manual thoroughly before starting
the installation.
• For trouble-free installation, which should be carried out by a
qualified installer, follow the installation chart sequence.
• Follow all current national safety code requirements. In particular
ensure that a properly sized and connected ground wire is in place.
• After installation thoroughly test the system operation and
explain all system functions to the owner.
• Leave this manual with the owner for consultation during
future periodic maintenance.
• Dispose of packaging material in accordance with local
requirements.
• The manufacturer denies any responsibility and warranty shall
be void if these installation instructions are not observed.
• Inspect equipment for damage due to improper transportation
or handling: file an immediate claim with the shipping company.
Do not install or use damaged units.
• In case of any malfunctioning turn the unit off, disconnect the
mains power supply and contact a qualified service engineer.
Models
There is only 1 model, which is easily configurable for all installations.
Products that the Zone Manager can Interface
40 GKX and 40 QKX CASSETTE
42 HWX and 42 HWX HI-WALL
42 VKX CONSOLE
Wiring
• The Zone Manager can be connected to one unit (that is the
first in the network).
• Each unit must be connected one after the other (daisy chain).
• If the Zone Manager is to use its room sensor the controller has to
be located in the same area as the addressed unit(s) number 1.
Power
Note that the Zone Manager requires no batteries and is not
"power stealing". It requires 12 VDC to be connected for proper
operation, which is easily obtained from any of the unit.
The Zone Manager will not operate without this connection.

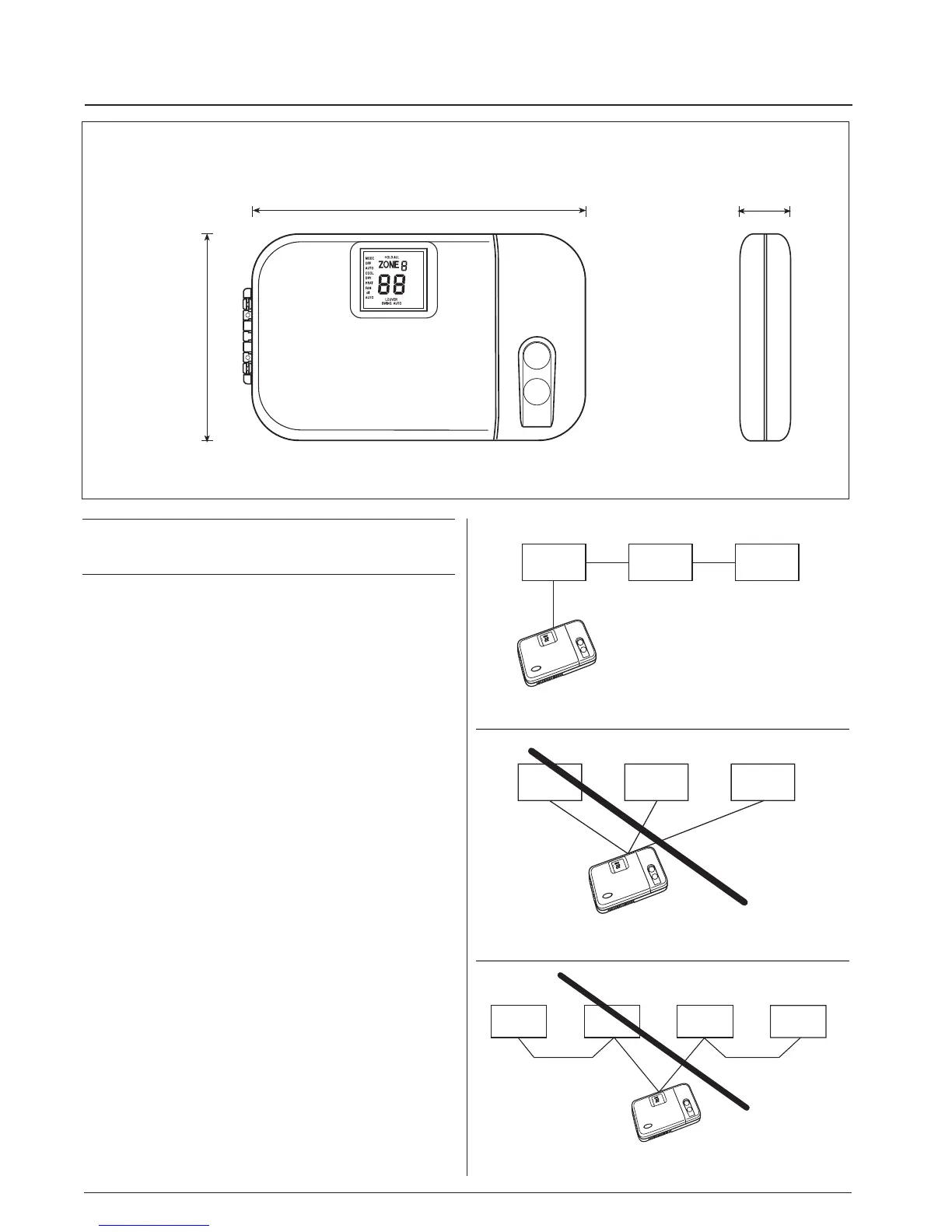

Dimensions (mm)
Unit 1
Unit 2
Unit 3
Zone Manager
Unit 1
Unit 2
Unit 3
Zone Manager
Unit 1
Unit 2
Unit 3
Zone Manager
Unit 4
Not recommended TEE connection
Incorrect layout must not be used Start Layout
Correct layout Daisy chain
107,9
190,5
39
