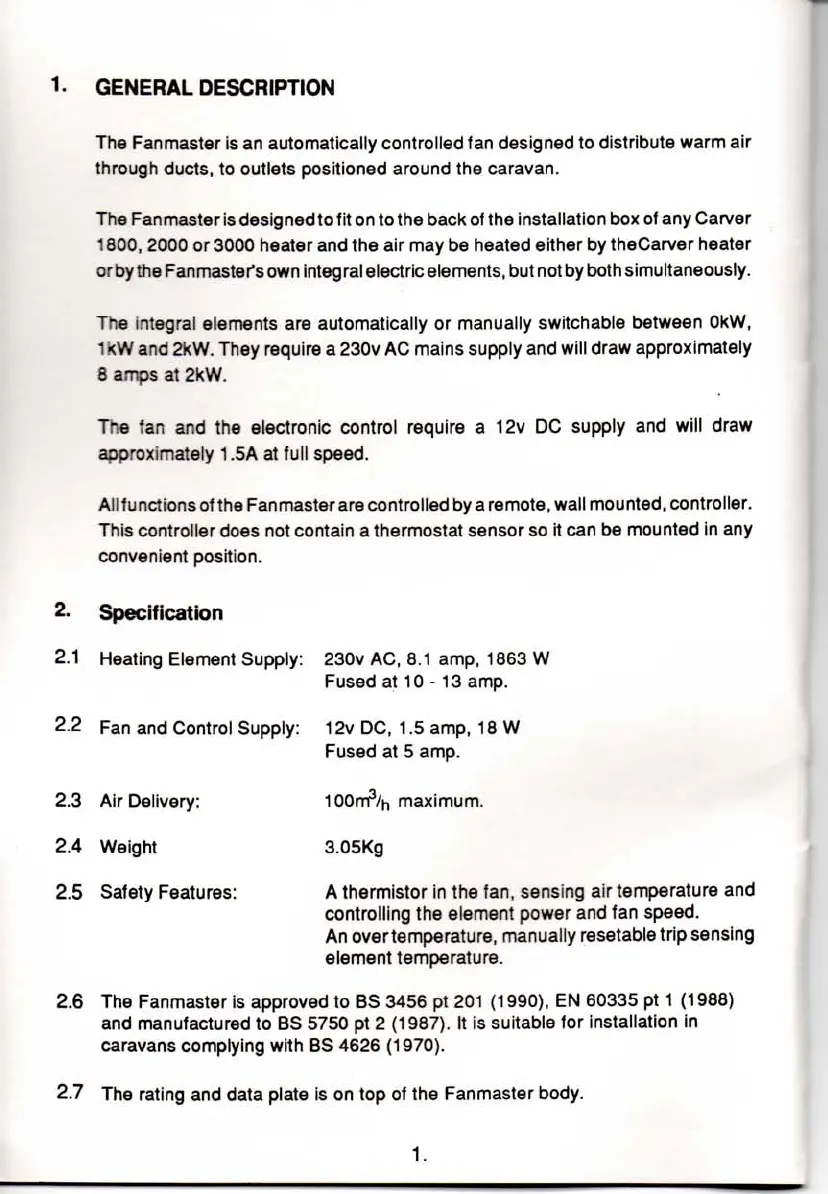

1- GENERAL
DESCRIPTION
The Fanmaster is an automatically controlled fan designed to distribute warm air
through ducts, to outlets positioned around the caravan.
The Fanmaster is designedto fit on to the back of the installation box of any Carver
1800,
2000 or 3000 heater and the air may be heated either by theCarver heater
orbytheFanmaster'sownintegralelectricelements.butnot by
both
simultaneously.
The integral elements are automatically or manually switchable between OkW,
1
<W and 2kW. They require a 230v AC mains supply and
will
draw approximately
8 amps at 2kW.
Tr.e fan and the electronic control require a 12v DC supply and
will
draw
aooi-oximately 1.5A at
full
speed.
All
f unctions of the Fanmaster are controlled by a remote, wall mounted, controller.
This
controller does not contain a thermostat sensor so it can be mounted in any
convenient position.
2-
Specification
2.1 Heating Element Supply:
2.2 Fan and Control Supply:
2.3 Air Delivery:
230v AC, 8.1 amp, 1863 W
Fused
at 10 - 13 amp.
12v DC, 1.5 amp, 18 W
Fused
at 5 amp.
100m3/h maximum.
2.4 Weight 3.05Kg
2.5 Safety Features: A thermistor in the fan, sensing air temperature and
controlling the element power and fan
speed.
An
overtemperature, manually resetable
trip
sensing
element temperature.
2.6 The Fanmaster is approved to BS 3456 pt 201 (1990), EN 60335 pt 1 (1988)
and manufactured to BS 5750 pt 2 (1987). It is suitable for installation in
caravans
complying
with
BS 4626 (1970).
2.7 The rating and data plate is on top of the Fanmaster body.
