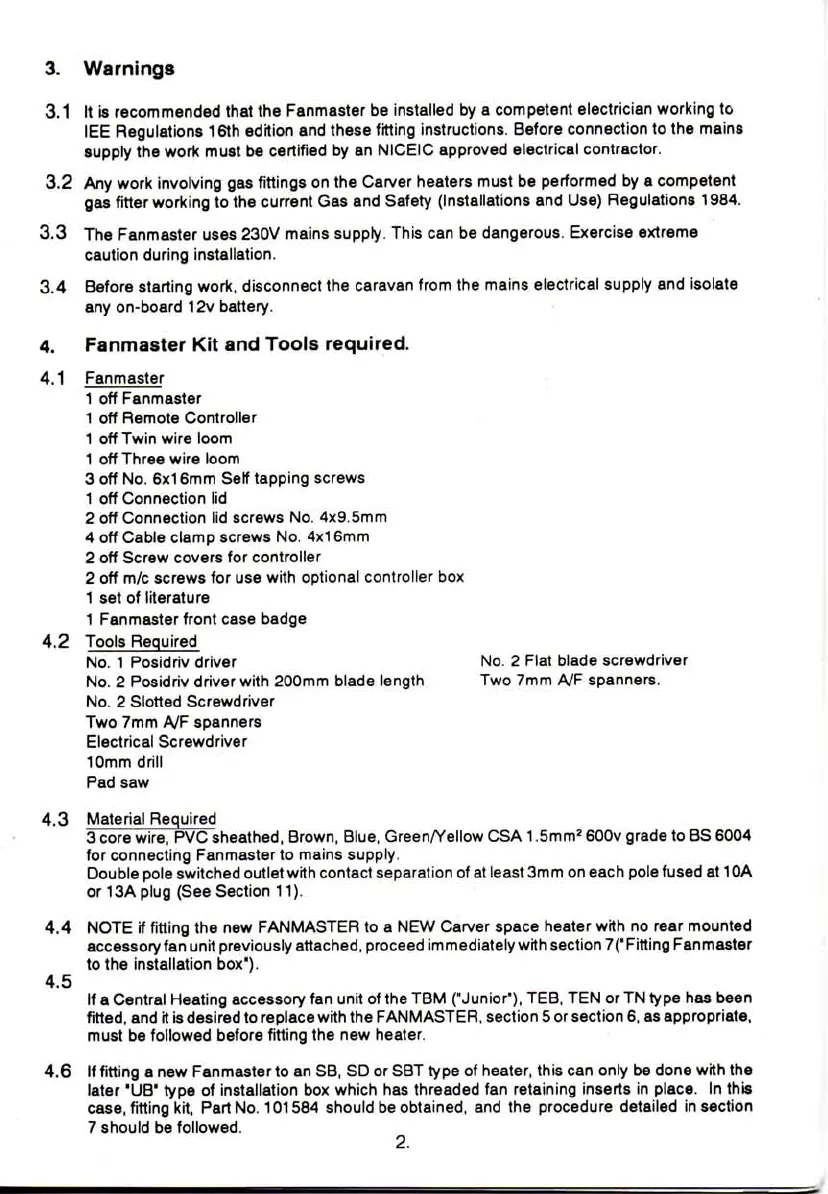

3.
Warnings
3.1 It is recommended
that
the Fanmaster be installed by a competent electrician working to
IEE
Regulations 16th edition and these
fitting
instructions. Before connection to the mains
supply the
work
must be certified by an NICEIC approved electrical contractor.
3.2 Any
work
involving gas
fittings
on the Carver heaters must be performed by a competent
gas
fitter
working to the current Gas and Safety (Installations and Use) Regulations 1984.
3.3 The Fanmaster uses 230V mains supply. This can be dangerous. Exercise extreme
caution during installation.
3.4 Before starting
work,
disconnect the caravan
from
the mains electrical supply and isolate
any on-board 12v battery.
4.
Fanmaster
Kit and Tools
required.
4.1 Fanmaster
1 off Fanmaster
1 off Remote Controller
1 off Twin wire loom
1 off Three wire loom
3
off No. 6x16mm Self tapping screws
1 off Connection lid
2
off Connection lid screws No. 4x9.5mm
4 off Cable clamp screws No. 4x16mm
2
off Screw covers for controller
2
off m/c screws for use
with
optional controller box
1 set of
literature
1 Fanmaster
front
case
badge
4.2 Tools Required
No.
1 Posidriv driver
No.
2 Posidriv driver
with
200mm blade length
No.
2 Slotted Screwdriver
Two 7mm A/F spanners
Electrical
Screwdriver
10mm
drill
Pad
saw
4.3 Material Required
3
core wire,
PVC
sheathed, Brown, Blue, Green/Yellow
CSA
1.5mm2 600v grade to BS 6004
for connecting Fanmaster to mains supply.
Double pole switched
outlet
with
contact separation of at least 3mm on each pole fused at 10A
or 13A plug (See Section 11).
4.4
NOTE
if
fitting
the new
FANMASTER
to a NEW Carver space heater
with
no rear mounted
accessory
fan
unit
previously attached, proceed immediately
with
section 7(" Fitting Fanmaster
to the installation box").
4.5
If a Central Heating accessory fan
unit
of the
TBM
("Junior"),
TEB,
TEN or TN type has been
fitted,
and it is desired to replace
with
the
FANMASTER,
section 5 or section 6, as appropriate,
must be followed before
fitting
the new heater.
4.6 If
fitting
a new Fanmaster to an
SB,
SD or SBT type of heater, this can only be done
with
the
later "UB" type of installation box which has threaded fan retaining inserts in place. In this
case,
fitting
kit, Part No. 101584 should be obtained, and the procedure detailed in section
7 should be followed.
2.
No.
2 Flat blade screwdriver
Two 7mm A/F spanners.
