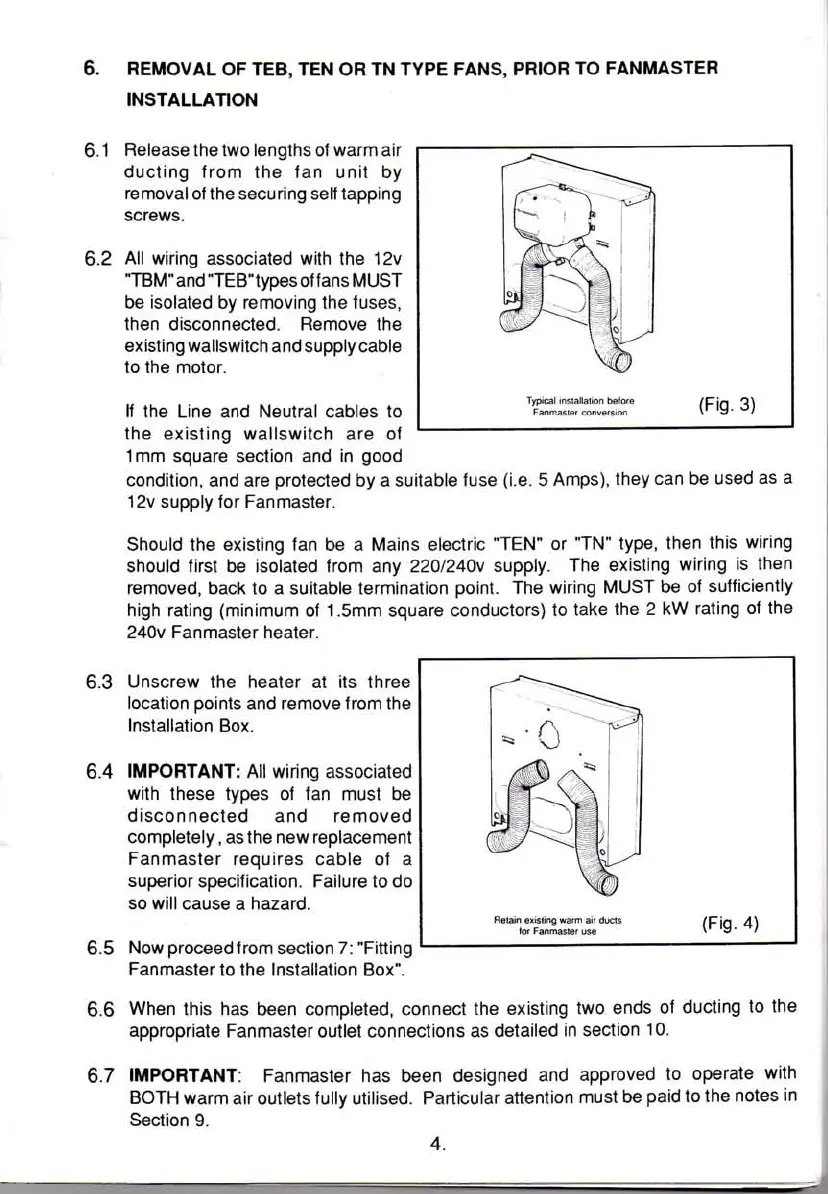

6. REMOVAL OF TEB, TEN OR TN TYPE FANS, PRIOR
TO
FANMASTER
INSTALLATION
6.1
Release the two lengths
of
warm
air
ducting from
the fan
unit
by
removal
of
the securing self tapping
screws.
6.2 All
wiring associated with
the 12v
"TBM"
and "TEB"types of fans MUST
be isolated
by
removing
the
fuses,
then disconnected. Remove
the
existing wallswitch and supply cable
to
the
motor.
If
the
Line
and
Neutral cables
to
the existing wallswitch
are of
1mm square section
and in
good
condition,
and are
protected
by a
suitable fuse
(i.e. 5
Amps), they
can be
used
as a
12v supply
for
Fanmaster.
Should
the
existing
fan be a
Mains electric
"TEN" or "TN"
type, then this wiring
should first
be
isolated from
any
220/240v supply.
The
existing wiring
is
then
removed,
back
to a
suitable termination point.
The
wiring MUST
be of
sufficiently
high rating (minimum
of 1.5mm
square conductors)
to
take
the 2 kW
rating
of the
240v Fanmaster heater.
6.3
Unscrew
the
heater
at its
three
location points
and
remove from
the
Installation
Box.
6.4 IMPORTANT: All
wiring associated
with these types
of fan
must
be
disconnected
and
removed
completely, as the new replacement
Fanmaster requires cable
of a
superior specification. Failure
to do
so will cause
a
hazard.
6.5
Now proceed from section
7:
"Fitting
Fanmaster
to the
Installation
Box".
6.6
When this
has
been completed, connect
the
existing
two
ends
of
ducting
to the
appropriate Fanmaster outlet connections
as
detailed
in
section
10.
6.7 IMPORTANT:
Fanmaster
has
been designed
and
approved
to
operate with
BOTH warm
air
outlets fully utilised. Particular attention must
be
paid
to the
notes
in
Section
9.
4.
(Fig.
3)
