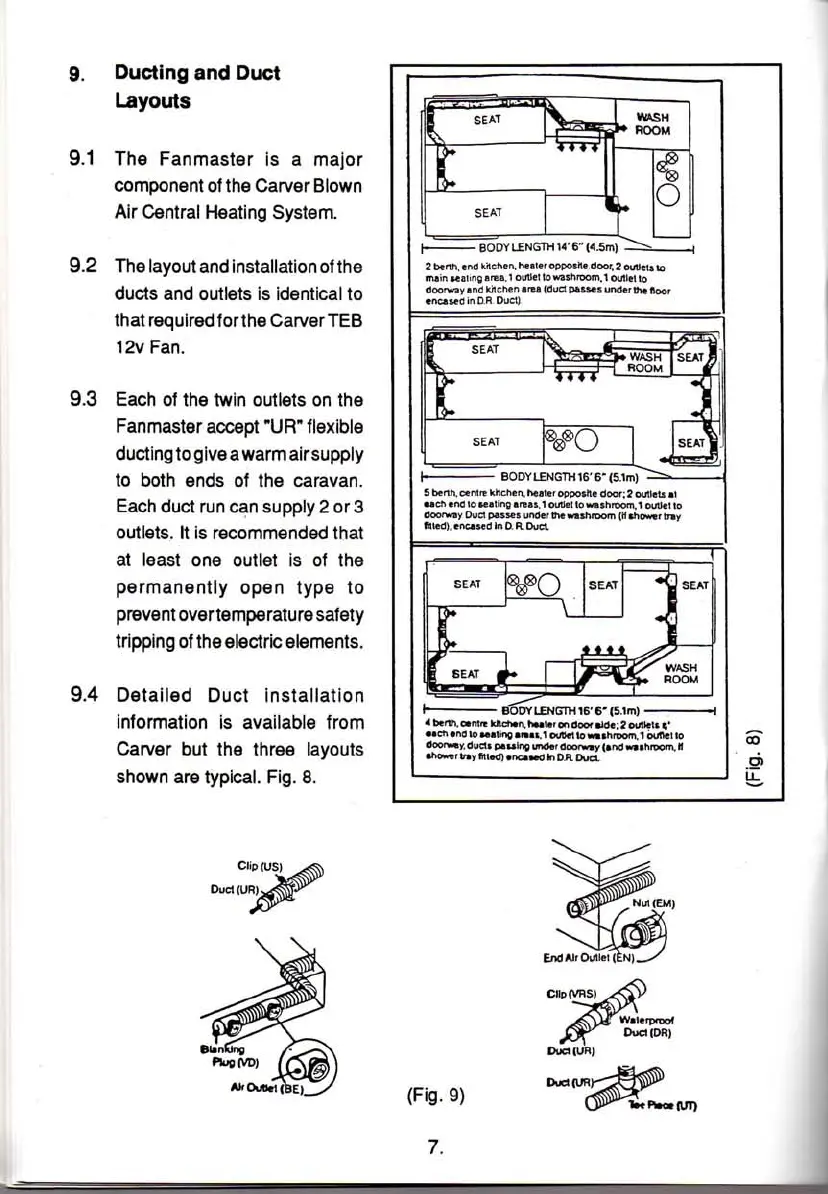

9.
Ducting
and
Duct
Layouts
9.1
The
Fanmaster
is a
major
component of the Carver Blown
Air
Central Heating System.
9.2
The layout and installation of the
ducts and outlets
is
identical
to
that
requiredforthe
Carver
TEB
12v Fan.
9.3
Each
of
the
twin
outlets on
the
Fanmaster
accept
"UR"
flexible
ducting to give
a
warm air supply
to both ends
of the
caravan.
Each
duct run can supply 2 or 3
outlets.
It is
recommended
that
at least
one
outlet
is of the
permanently open type
to
prevent overtemperature safety
tripping of the electric elements.
9.4
Detailed Duct installation
information
is
available from
Carver
but the
three layouts
shown are typical. Fig.
8.
SEAT
WASH
J»
ROOM
V •••4
V
®
o
SEAT
1
t
®
o
r
2
berth,
end
kitchen,
heater
opposite
door, 2
outlets
lo
main
seating
area.
1
outlet
to
washroom.
1
outlet
to
doorway
and
kitchen
area
(duct
passes
under
the
floor
encased in DR
Duct)
5
berth,
centre
krichen,
heater
opposite
door; 2
outlets
at
each
end to
seating
areas,
1
outlet
to
washroom,
1
outlet
to
doorway
Duct
passes
under
the
washroom
(it
shower
tray
fitted),
encased
In
D. R.
Dud
BODY LENGTH
16' 6' (5.1m) -
4
berth,
centre
kitchen,
heater
on door
aide;
2
outlets
•ach and lo
seating
araas.l
outet
to
washroom.
1
outlet
to
doorway,
ducts
passing
under
doorway
(and
washroom,
W
shower
tray
fitted)
encased in D.R
Duct
LL
Blanl
Plug
(VD)
Air
Outtoi
(j
(Fig.
9)
7.
