3. Input Channel section
1. 48V PHANTOM POWER SWITCH
This switch provides phantom power for condenser mics in groups of 8 channels. This allows other channel groups to remain
non-powered for instruments and dynamic mics that don’t require phantom power. The 48V switch should not be engaged when
using sources that do not use phantom power.
2. CHANNEL DIRECT OUT
The DIRECT OUT is a 1/4” TRS (Tip/Ring/Sleeve) balanced output. The DIRECT OUT provides an output of the channel (post
fader) unaffected by the pan or assignments. This is typically used for multi-track recording where each channel feeds a track
on the recorder. The DIRECT OUT can also be used for sending a channel to an effects unit and to return the effects unit to
another channel for mixing.
3. CHANNEL TAPE IN
The TAPE IN is a 1/4” TRS (Tip/Ring/Sleeve) balanced input. The TAPE IN input jack makes up the alternate input path in the
dual in-line format of the S/L series consoles. This is typically used as a return from a multi-track recorder. The TAPE IN signal
can be accessed via the tape switch, through the Aux 7-8 tape switch or through the Aux 5-6 tape switch.
4. LINE IN
The LINE IN is a 1/4” TRS (Tip/Ring/Sleeve) balanced input. The LINE IN connectors are for connecting balanced and unbal-
anced instruments, mics and line level sources such as drum machines or keyboards.

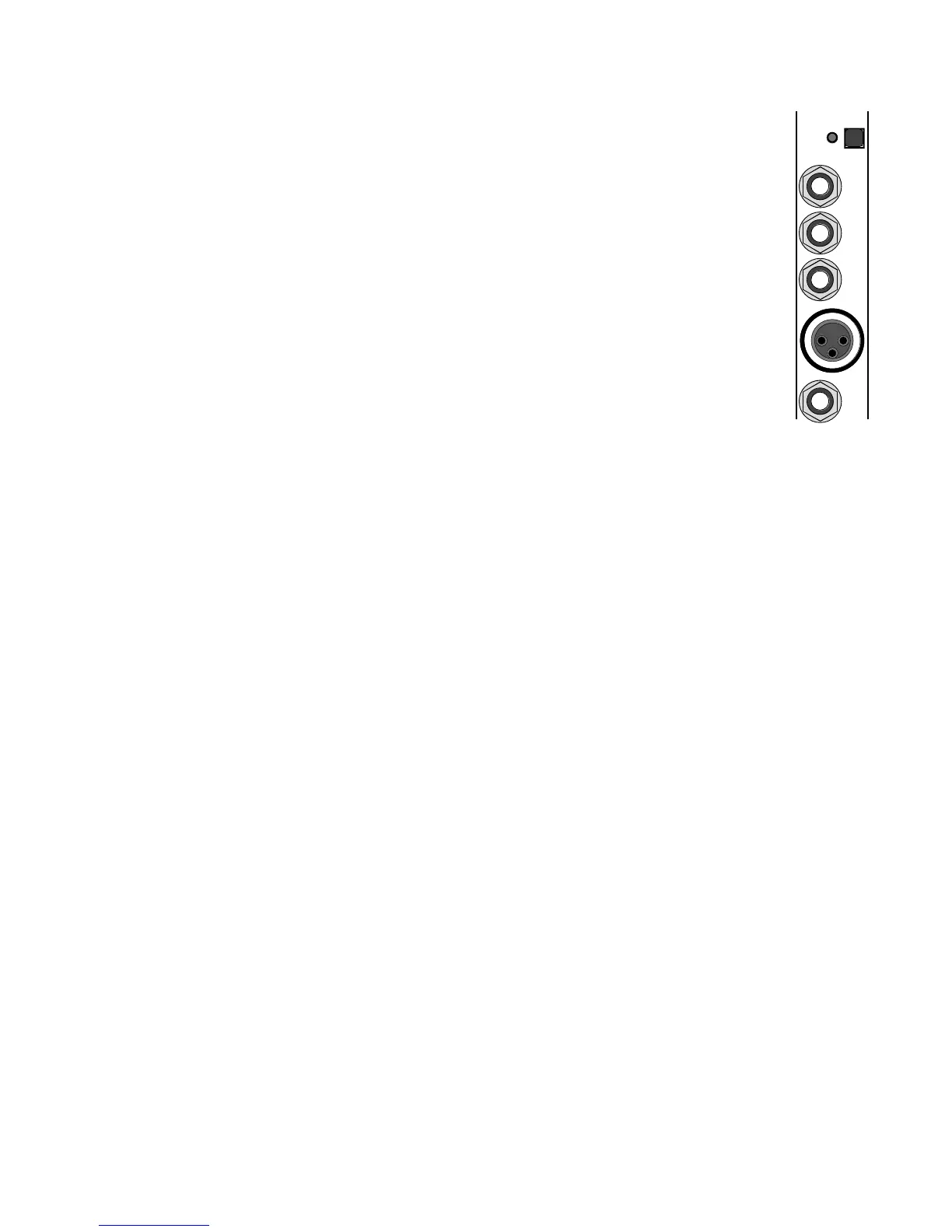

5. MIC IN
The MIC IN is an XLR balanced input. These Mic inputs are for connecting professional low impedance microphones. +48V Phantom power is
provided via the grouped phantom power switch for condenser mics requiring phantom power.
6. INSERT
The INSERT is a 1/4” TRS (Tip/Ring/Sleeve) Tip send and a ring return break point. The INSERT jack is typically used for inserting an effects
unit, compressor and/or equalizer at the beginning of the channel’s signal path. In the S/L series, the insert point is located post mic pre-amp
and tape in (depending on the tape switch position) and before the EQ and AUX sends. With an insert cable (1/4” TRS on one end and dual 1/4”
TS “Tip/Sleeve” on the other ends), the TRS end is used at the mixer’s insert jack and the corresponding tip TS (Tip/Sleeve) plug goes to the
units input and the corresponding TS (Tip/Sleeve) plug goes in the units output. To use the INSERT jack as a direct output for an alternate multi-
track recording output, use a 1/4” TS (Tip/Sleeve) cable and insert to the first “click” (1/2 insert). Then connect the other end of the cable to an
input on a multi-track recorder. For detailed information on channel insert set up, please see section 7 Using the Insert Jacks on Pg 22
24
PHANTOM
POWER
17-24
TAPE
IN
MIC
LINE
IN
DIRECT
OUT
INSERT
T
T
