CARVIN SL User Manual

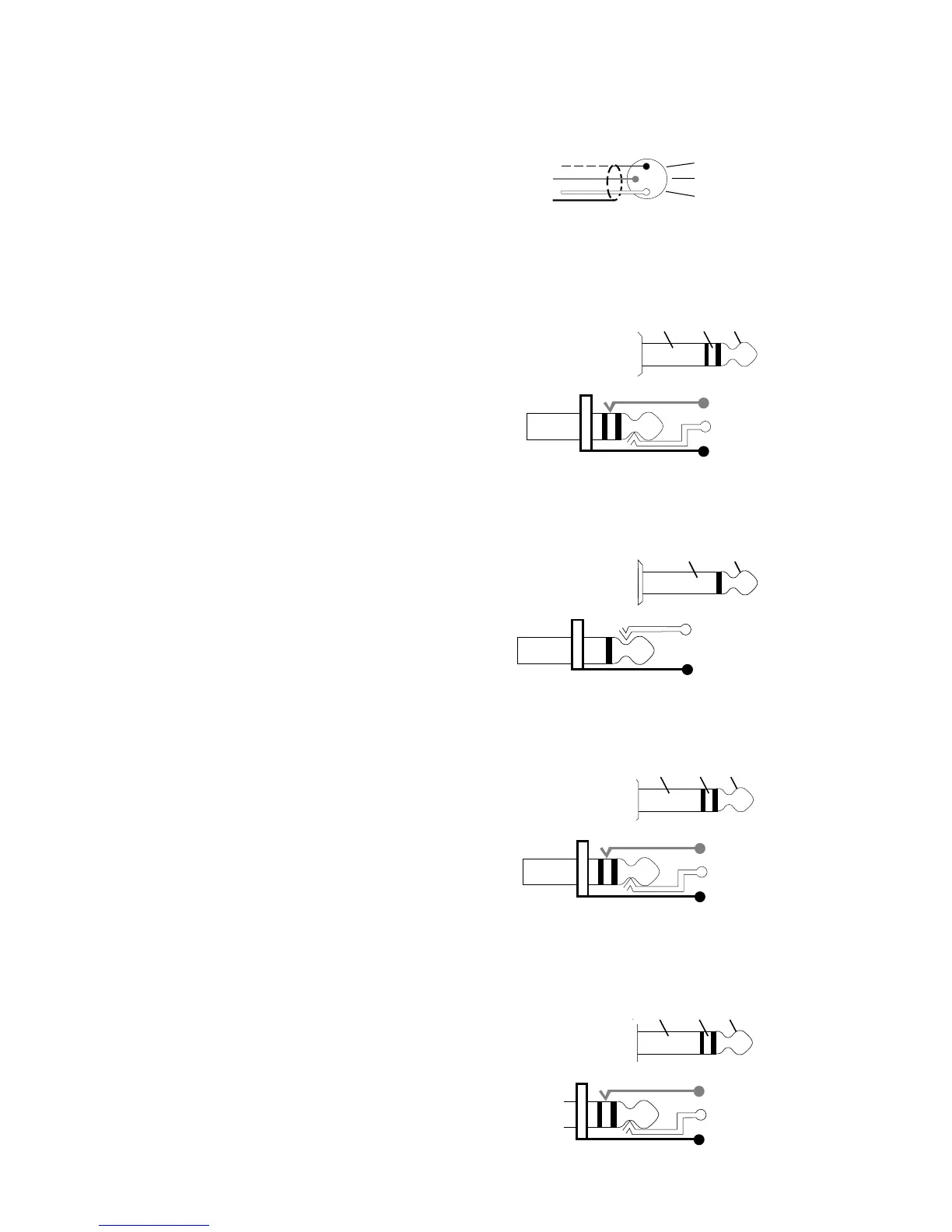

10. Cable connections used on the S/L series console
Balanced XLRs are used for the channel MIC
inputs, the group outputs and the master left
right outputs
These all follow the standard:
PIN 1 is ground
PIN 2 is positive (in phase)
PIN 3 is negative (out of phase or inverting)
Balanced 1/4” TRS phone jacks are used for the
channel direct outputs, the channel tape inputs,
and the channel line inputs.
These follow the standard of:
TIP is positive (in phase)
RING is negative (out of phase or inverting)
SLEEVE is ground
Unbalanced 1/4” TS phone jacks are used for
the master auxiliary send outputs, the left con-
trol room outputs, left studio output, the left
and right return inputs and the master left and
right 1/4” outputs.
These follow the standard of:
TIP is positive (in phase)
SLEEVE is ground
1/4” TRS phone jacks are used for the channel
inserts and the master/Group inserts.
These follow the standard of:
TIP is send (mixer output)
RING is return (mixer input)
SLEEVE is ground
1/4” TRS phone is used for the control room
right output and the studio right output. If the
left output is in use these right outputs will
function normal as TS outputs like the left out-
puts. If the left has nothing plugged into the
jack then these right jacks operate as head-
phones with:
TIP is right
RING is left
SLEEVE is ground
SLEEVE
RING TIP
SLEEVE
RING
TIP
SLEEVE
TIP
SLEEV
TIP
SLEEVE
RING TIP
SLEEVE
RING
TIP
SLEEVE
RING
TIP
SLEEVE
RING
TIP
PIN 1
PIN 2
PIN 3
25
