Step 3

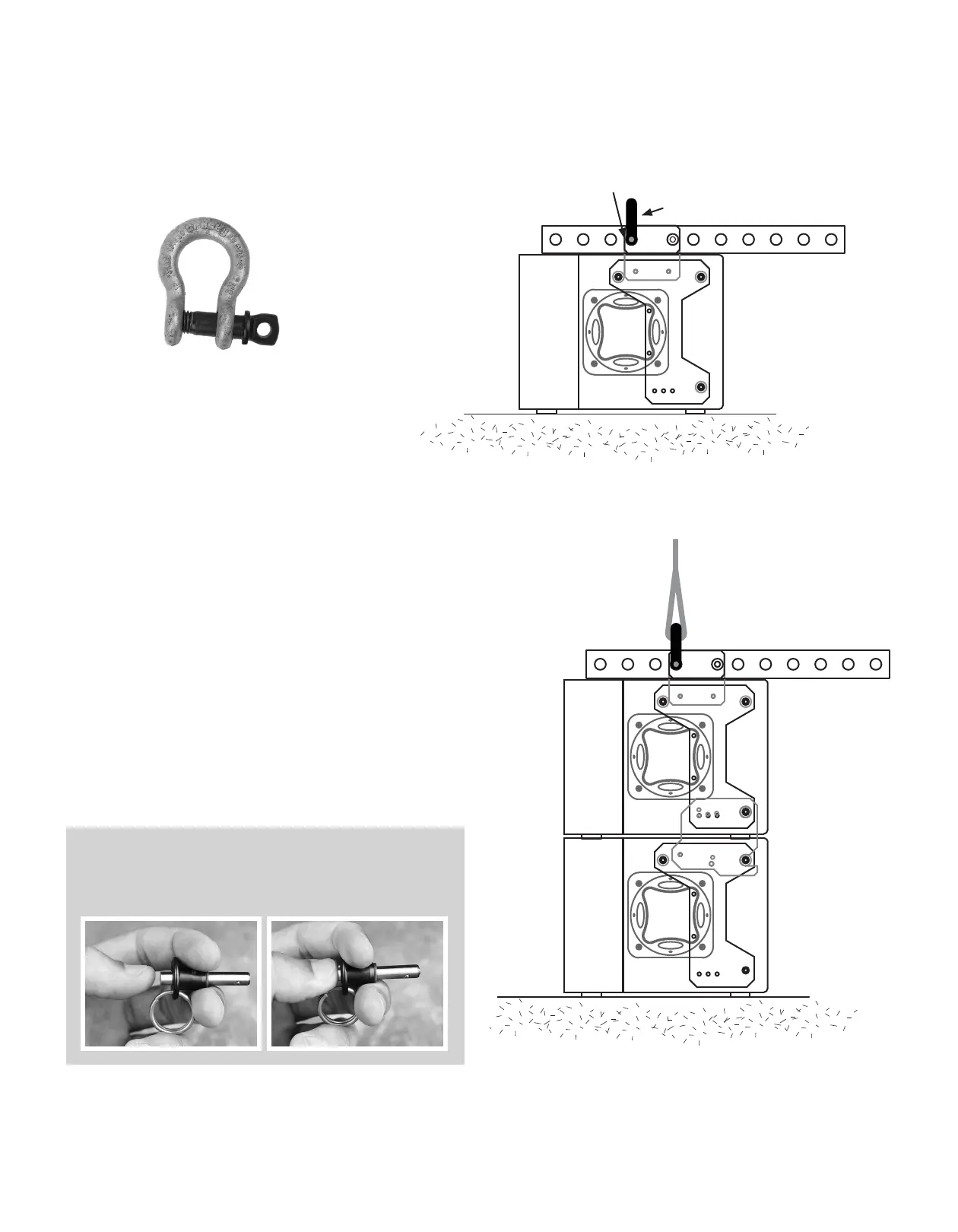

Installing the Shackle
Attach rated 5/8” shackle to lug # 4. Note:
this position sets a basic starting point for a
straight vertical hang.
GROUND
Attach to motor hoist
GROUND
Straight Vertical Hang
Shackle
Lug #4
1 2 3
GROUND
Attach to motor hoist
GROUND
Straight Vertical Hang
Shackle
Lug #4
1 2 3
Step 4
Adding additional enclosures
Attach a rated chain motor or hoist hook to the
shackle. Using the chain motor or hoist, li as-
sembly up to clear another array module. Place
an array module underneath the rst array
module assembly and lower suspended array
module. As you are lowering, align so feet mate
with foot receptacles on top of lower array mod-
ule. Side adjustment plates must insert between
the two plates of the array module hardware.
See Step 5 for adjustment plate.
5/8” Shackle
# TCSHK58
Finger tighten
shackle only.
Do not use a
tool to tighten
Quick Release Pin
Press the button on the top of the pin with thumb to
insert and remove pin.
