Cascade C Series User Manual

278305557-R2
BATTERIES
FK0557.eps

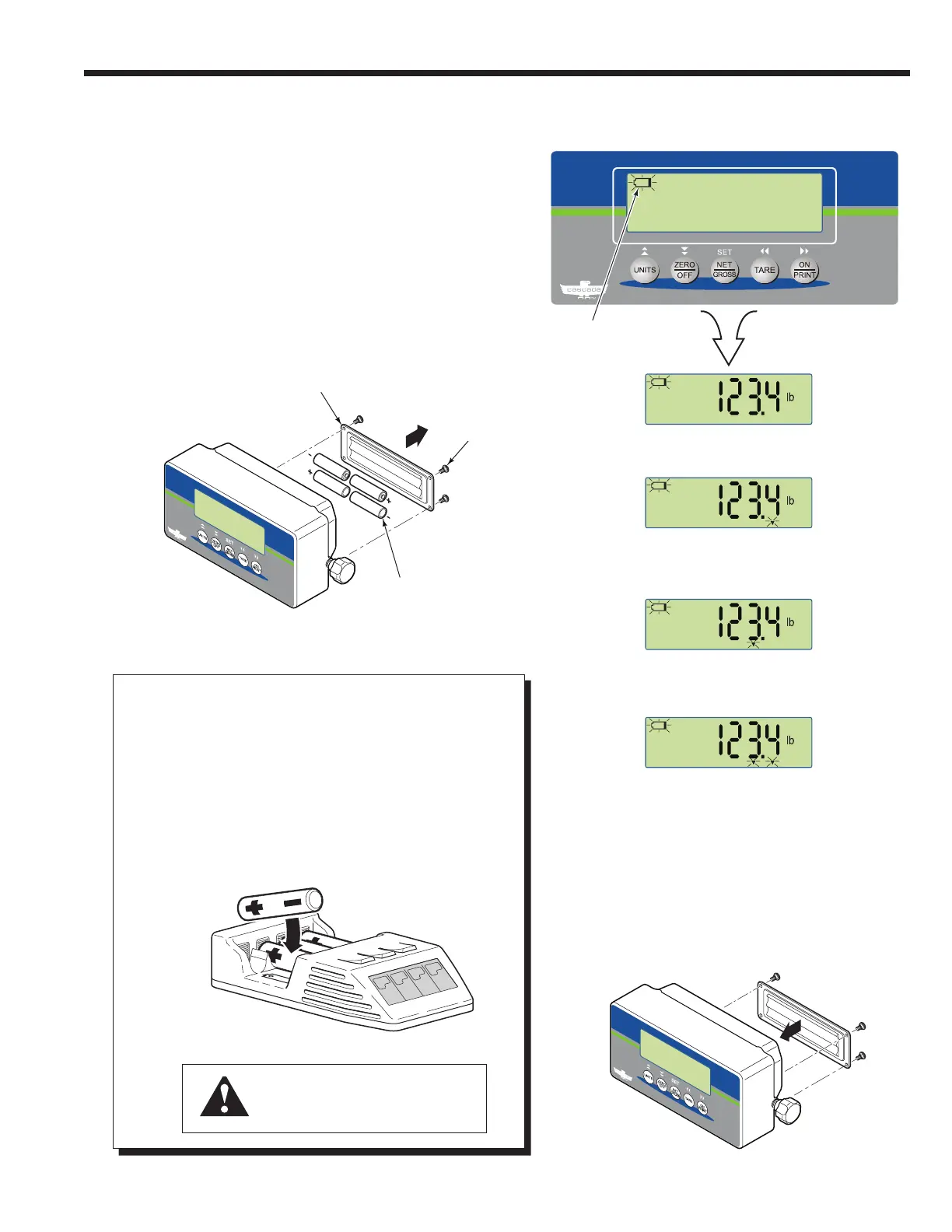

Indicator Batteries (if equipped)
Indicator's low
battery icon will flash
The indicator is equipped with four AA batteries.
1
2
3
Remove depleted batteries
Replace alkaline batteries or
charge rechargeable batteries
NOTE: Rechargeable batteries are NiMH with
a charge capacity of 2,000 mAh.
Install cover and tighten
thumbscrews
NOTE: Based on usage, indicator battery life is variable.
WARNING: Alkaline batteries are
not rechargeable and can cause
damage to the charger.
To recharge batteries:
A Place the batteries on the charger noting the
position and polarity.
B Plug the charger into a 110V source.
A Loosen back cover thumbscrews.
B Remove back cover.
C Remove depleted batteries.
NOTE: Take note of the position and polarity of
batteries.
Indicator's batteries are low
Indicator's batteries and
Fork 1 battery pack are low
Indicator's batteries and
Fork 2 battery pack are low
Indicator's batteries and
Fork 1 and 2 battery packs
are low
When any low battery icon blinks, replace or
recharge batteries.
c
FK0649.eps
c
FK0650.eps
DISPL
AY
MOD
E
CURRE
N
T
FK0206.eps
A
B
C
Back Cover
Thumbscrews
Batteries
