13 - SPECIFICATIONS
450

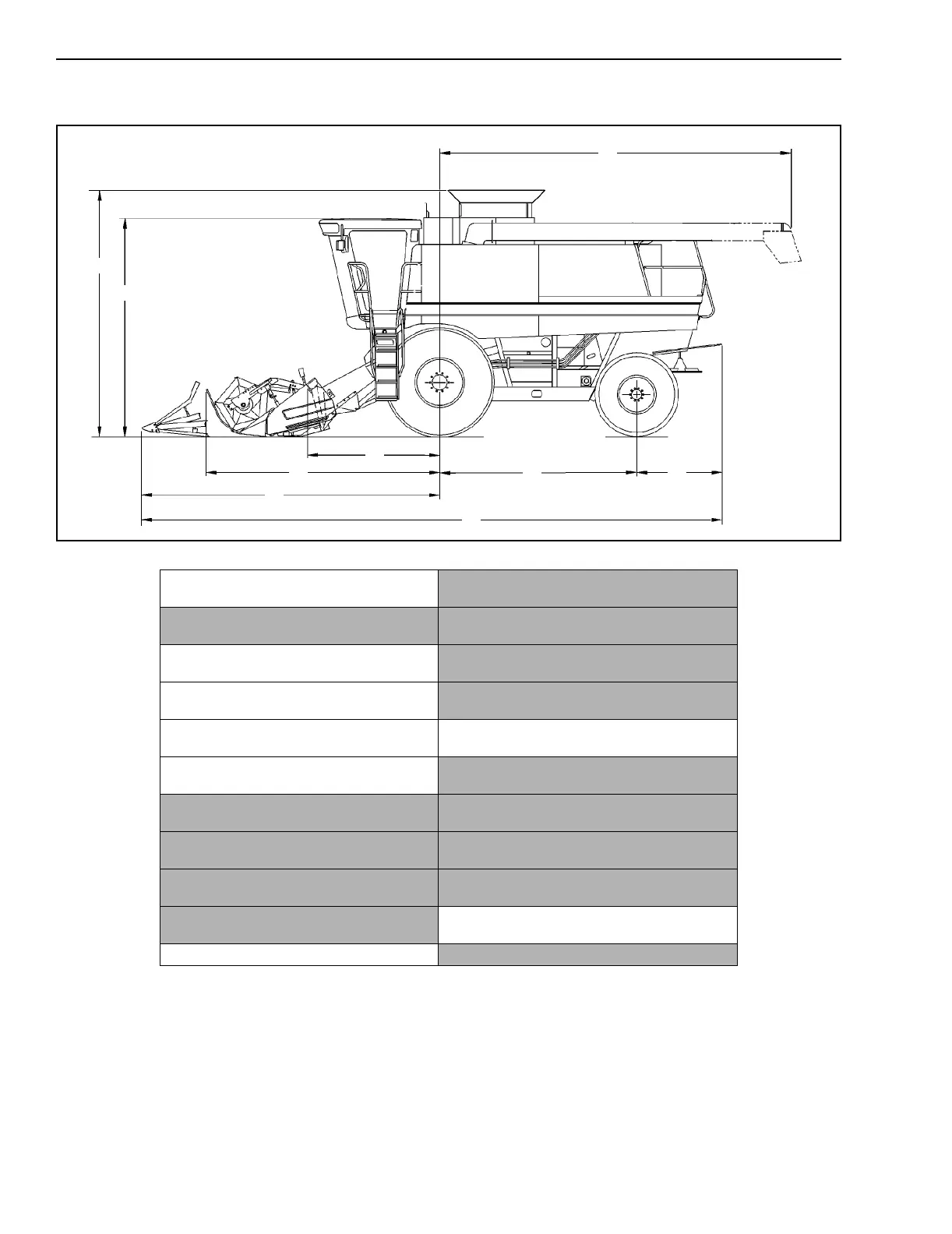

APPROXIMATE OVERALL MEASUREMENTS
RH06F284
NOTE: These dimensions are with the feeder lowered.
A. See Chart (Next Page) E.5117 mm (201.5 Inch) without Rock Trap, with Field
Tracker®
B. 3587 mm (141.2 Inch) E.5066 mm (199.4 Inch) without Rock Trap, without
Field Tracker®
C.2249 mm (88.5 Inch) without Rock Trap, with
Field Tracker®
E. 5213 mm (205.2 Inch) with Rock Trap, with Field
Tracker®
C. 2198 mm (86.5 Inch) without Rock Trap, with-
out Field Tracker®
E. 5162 mm (203.2 Inch) with Rock Trap, without Field
Tracker
C. 2345 mm (92.3 Inch) with Rock Trap, with Field
Tracker®
F. 1314 mm (51.7 Inch)
C. 2294 mm (90.3 Inch) with Rock Trap, without
Field Tracker®
G.9950 mm (391.7 Inch) without Rock Trap, with Field
Tracker®
D. 3929 mm (154.7 Inch) without Rock Trap, with
Field Tracker®
G. 9899 mm (389.7 Inch) without Rock Trap, without
Field Tracker®
D. 3878 mm (152.7 Inch) without Rock Trap, with-
out Field Tracker®
G. 10 046 mm (395.5 Inch) with Rock Trap, with Field
Tracker®
D. 4025 mm (158.5 Inch) with Rock Trap, with
Field Tracker®
G. 9995 mm (393.5 Inch) with Rock Trap, without
Field Tracker®
D. 3974 mm (156.5 Inch) with Rock Trap, without
Field Tracker®
H. 6242 mm (245.7 Inch) - for 5.5 m Unloader
H. 7136 mm (280.9 Inch) - Optional 6.4 m Unloader
X. See Maximum Height Note on Next Two Pages
A
B
C
D
E
F
G
H
X
To Next Page
