4 - INSTRUMENTS/CONTROLS
43

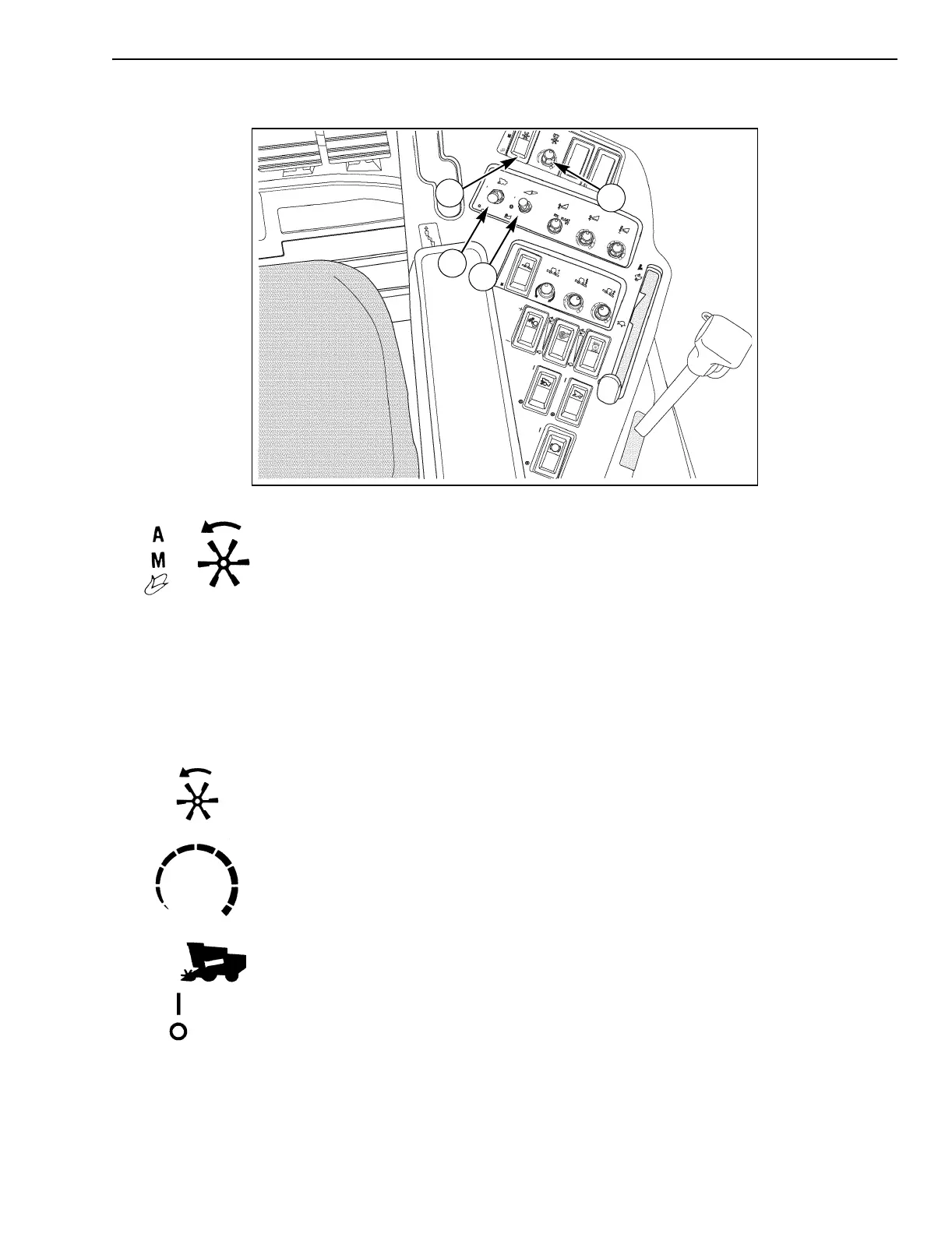

Right Console
RR05D014
1. REEL SPEED SELECTOR SWITCH - This is a three position rocker switch used to select
automatic or manual reel speed or corn head operation.
Automatic Position - Push the front of the switch to select automatic reel speed operation.
The reel speed will automatically increase or decrease with the Combine ground speed.
The ratio of reel speed to ground speed can be adjusted as needed.
Manual Position - To select manual reel speed operation, push the switch to the center
position. The reel speed will not be affected by ground speed. The reel speed can be
adjusted as needed.
Corn Head Position - Push the switch to the rear to select corn head operation. Reel
speed functions are disabled in this position.
2. REEL SPEED CONTROL - When the Reel Speed Selector Switch is in the MANUAL
position, it allows the operator to adjust the operating speed of the reel. The reel speed is
adjustable from zero (0) RPM to full speed. Turn the control clockwise to increase reel speed
or counterclockwise to decrease reel speed. The selected speed will remain constant.
When the Reel Speed Selector Switch is in the AUTOMATIC position, it allows the operator to
set the ratio of reel speed to ground speed. Turn the control clockwise to increase the ratio or
turn the control counterclockwise to decrease the ratio. The reel speed will automatically
increase or decrease with the Combine ground speed.
3. SEPARATOR CLUTCH SWITCH - This is a two position switch. Lifting and pushing the
switch forward to ON engages the separator drive. Pulling the switch rearward to OFF
disengages the separator drive.
NOTE: Engine RPM must be between 1000 RPM to 2000 RPM for the separator to engage.
NOTE: The separator clutch switch must be in the OFF position and the propulsion control lever must be in the
NEUTRAL position to start the engine.
1
4
2
3
