Case CX350B - Page 23

Lep SM350B370B1002-2EN Issued 04-2010
1002-14
Cushion Valve
Port size
A-P ports.............................................................................................................................................................G3/8
R-V ports ............................................................................................................................................................G1/4
Rotating Joint
Operating pressure
High pressure passage (ABCD) ............................................................................................... 34.3 MPa (4975 psi)
Drain port (T) ................................................................................................................................. 1.0 MPa (145 psi)
Pilot port (P)................................................................................................................................... 3.9 MPa (566 psi)
Flow
High pressure passage (ABCD) ............................................................................................ 360 L/min (95.10 gpm)
Drain port (T) ........................................................................................................................... 40 L/min (10.57 gpm)
Pilot port (P)............................................................................................................................... 30 L/min (7.93 gpm)
Port A; forward right ...................................................................................................................................................G1
Port B; forward left .....................................................................................................................................................G1
Port C; backward right................................................................................................................................................G1
Port D; backward left..................................................................................................................................................G1
Port T; drain port ....................................................................................................................................................G1/2
Port P; pilot port .....................................................................................................................................................G1/4
Solenoid Valve
Maximum flow ..........................................................................P -> B: 25 L/min (6.60 gpm) Other: 5 L/min (1.32 gpm)
Rated pressure ............................................................................................................................. 4.5 MPa (652.67 psi)
Port size
P, T, B port...........................................................................................................................................................G3/8
C1, C2, C3, C4, C5 ports....................................................................................................................................G1/4
Solenoid specifications
Operating voltage ................................................................................................................................DC 20 to 32 V
Power consumption .................................................................................................................................. 17 W max.
Hand control valve
Manufacturer ................................................................................................................................................... Kawasaki
Operating pressure .......................................................................................................................... 3.92 MPa (569 psi)

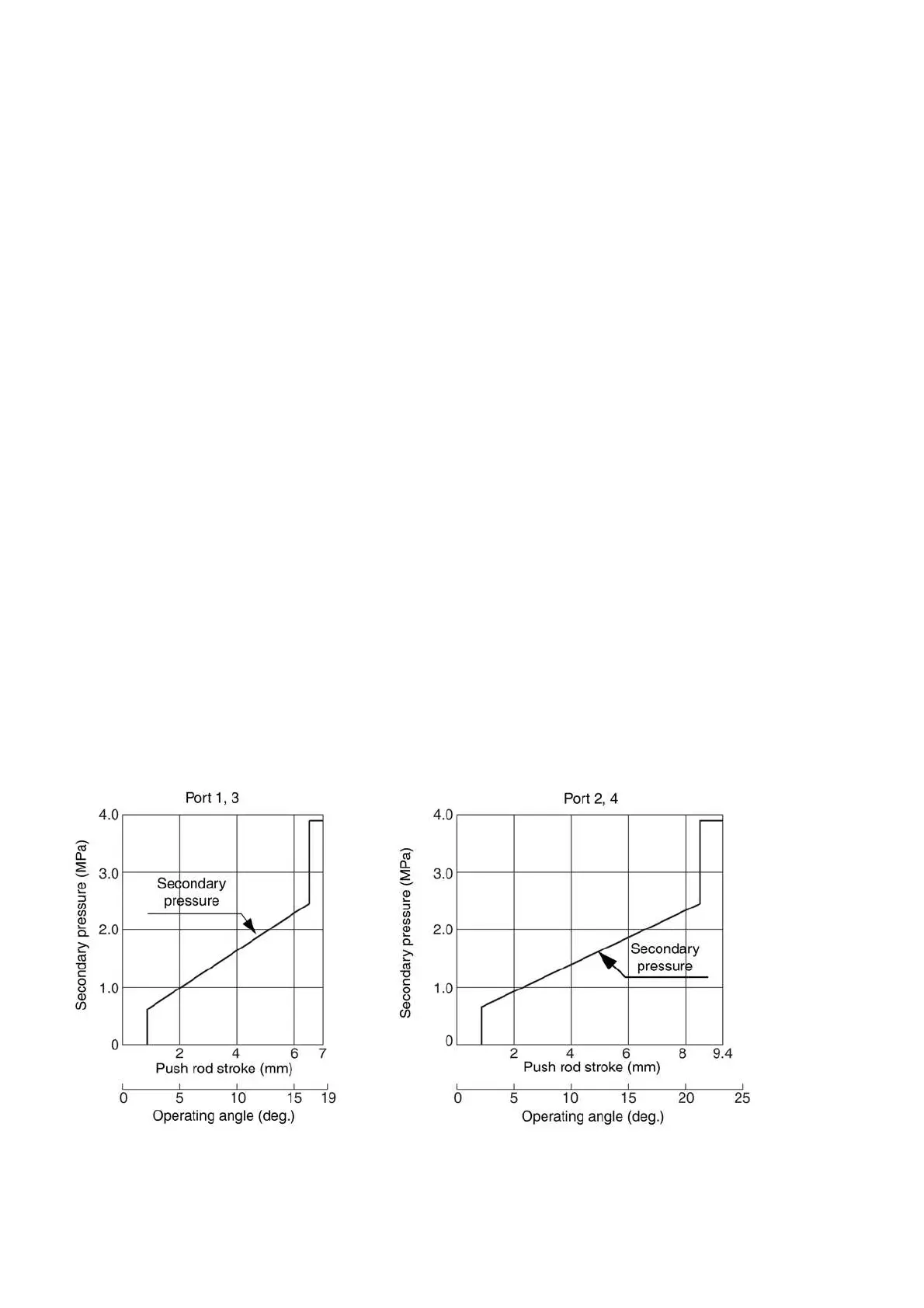

Secondary pressure, primary short type........................................................... 0.64 to 2.45 MPa (92.82 to 355.34 psi)
Operating angle
Ports 1, 3 .............................................................................................................................................................. 19°
Ports 2, 4 .............................................................................................................................................................. 25°
