Case CX350B - Dimensions and Wear Limit of the Track Assembly; Sprocket

Issued 04-2010
1002-25

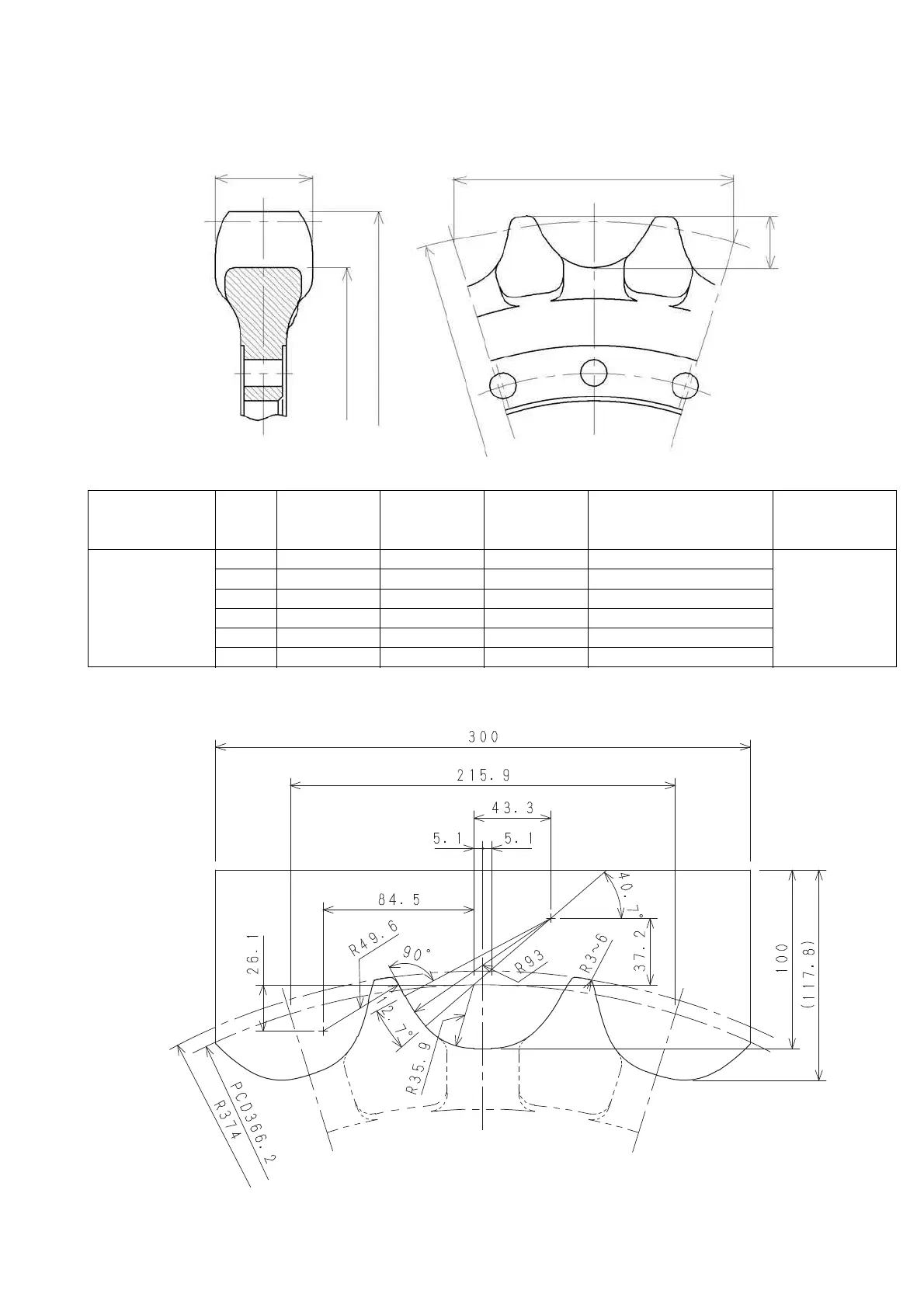

DIMENSIONS AND WEAR LIMIT OF THE TRACK ASSEMBLY
Sprocket
Gauge
unit in mm
Part name Code
Measured
dimensions
(mm)
Standard
value (mm)
Usage limit
(mm)
Judgment Solution
Sprocket
a 83 73 Acceptable/Unacceptable
Cladding by welding
or replacement
b Ø Ø660.7 Ø649.2 Acceptable/Unacceptable
c Ø Ø748 Ø738 Acceptable/Unacceptable
d Ø Ø732.5 - Acceptable/Unacceptable
e 40 45 Acceptable/Unacceptable
p 215.9 - Acceptable/Unacceptable
a
b c
d
p
e
300-6-10-03-03a
