Case CX350B - Track

Issued 04-2010
1002-29

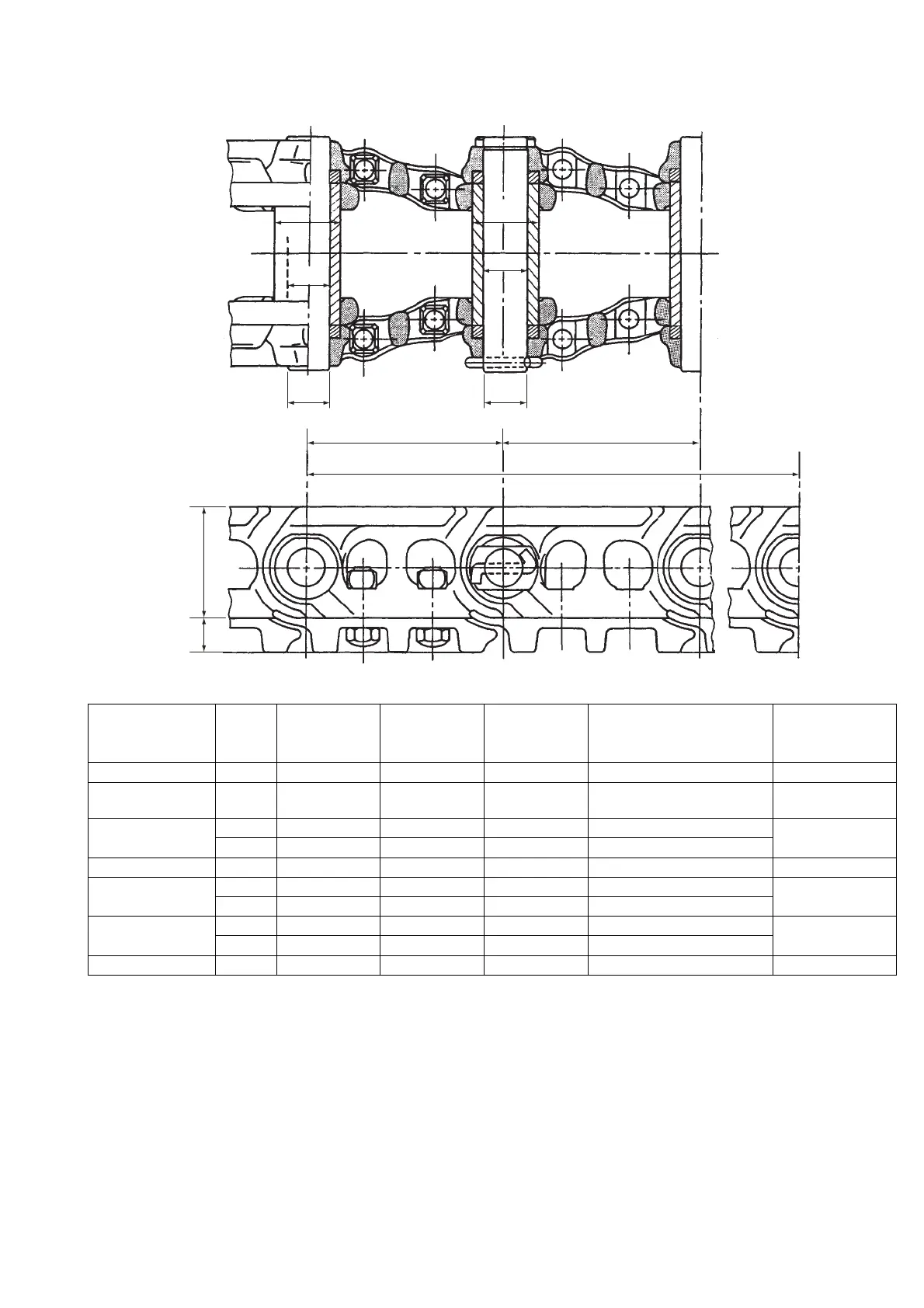

Track
Part name Code
Measured
dimensions
(mm)
Standard
value (mm)
Usage limit
(mm)
Judgment Solution
Shoe plate a 49 34 Acceptable/Unacceptable Replacement
Link b 129 124 Acceptable/Unacceptable
Cladding by welding
or replacement
Master bushing
c Ø Ø71 Ø67 Acceptable/Unacceptable
Replacement
d Ø Ø47 - Acceptable/Unacceptable
Master pin e Ø Ø46.83 - Acceptable/Unacceptable Replacement
Link pitch
f 215.9 220.2 Acceptable/Unacceptable
Replacement
f' 863.6 880.8 Acceptable/Unacceptable
Track bushing
c’ Ø Ø71 Ø67 Acceptable/Unacceptable
Replacement
d’ Ø Ø47 - Acceptable/Unacceptable
Track pin e’ Ø Ø47 - Acceptable/Unacceptable Replacement
a b
f f
f'
e'
d'
c'
d
c
e
