Case CX350B - Connecting Rod;Compensator;Bucket Cylinder Head

Issued 04-2010
1002-35

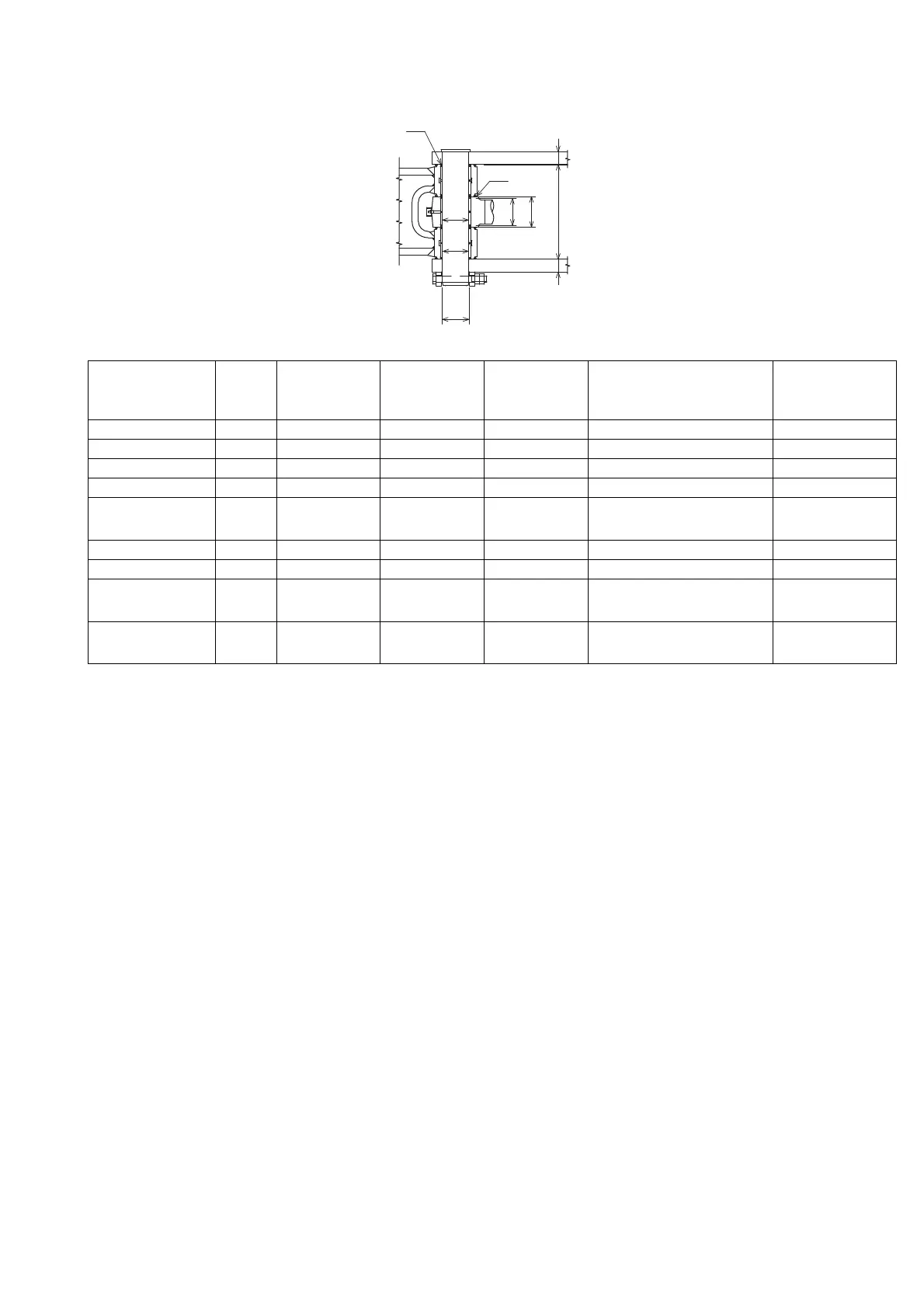

10. Connecting rod/Compensator/Bucket cylinder head
Part name Code
Measured
dimensions
(mm)
Standard
value (mm)
Usage limit
(mm)
Judgment Solution
Arm link a 50 48 Acceptable/Unacceptable Replacement
Bucket link b 375 371 Acceptable/Unacceptable Replacement
Clearance c 1.0 - 1.5 Adjust with shims Acceptable/Unacceptable Adjust with shims
Bucket link d 121 123 Acceptable/Unacceptable Replacement
Bucket cylinder
(top section)
e 120 118 Acceptable/Unacceptable Replacement
Clearance f 1.0 - 2.0 Adjust with shims Acceptable/Unacceptable Adjust with shims
Pin g Ø Ø105 Ø104 Acceptable/Unacceptable Replacement
Bushing
(bucket link)
h Ø Ø105 Ø106.5 Acceptable/Unacceptable Replacement
Bushing
(bucket cylinder)
i Ø Ø105 Ø106.5 Acceptable/Unacceptable Replacement
d
aab
e
h
g
i
f
c
SI14004-006
