Case CX350B - Dipper;Bucket

Issued 04-2010
1002-36

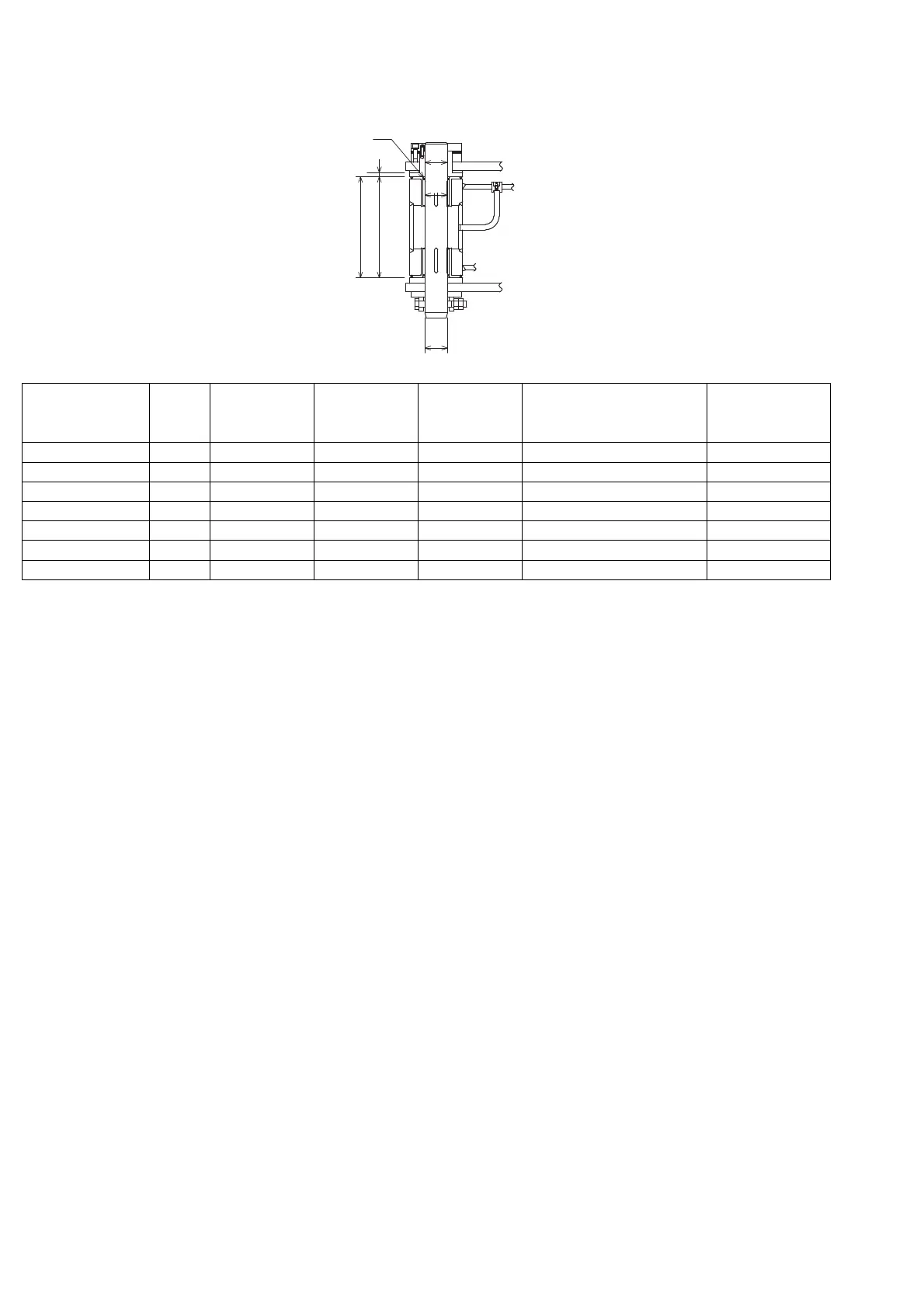

11. Dipper/Bucket
Part name Code
Measured
dimensions
(mm)
Standard
value (mm)
Usage limit
(mm)
Judgment Solution
Bucket a 401 406 Acceptable/Unacceptable -
Arm b 400 397 Acceptable/Unacceptable Replacement
Clearance c 0.8 - 3.7 Adjust with shims Acceptable/Unacceptable Adjust with shims
Bushing (bucket) d 16 10 Acceptable/Unacceptable Replacement
Pin e Ø Ø90 Ø89 Acceptable/Unacceptable Replacement
Bushing (arm) f Ø Ø90 Ø91.5 Acceptable/Unacceptable Replacement
Bushing (bucket) g Ø Ø90 Ø91.5 Acceptable/Unacceptable Replacement
d
b
a
c
g
f
e
