Case CX350B - Connecting Rod;Dipper; Compensator;Bucket

Issued 04-2010
1002-34

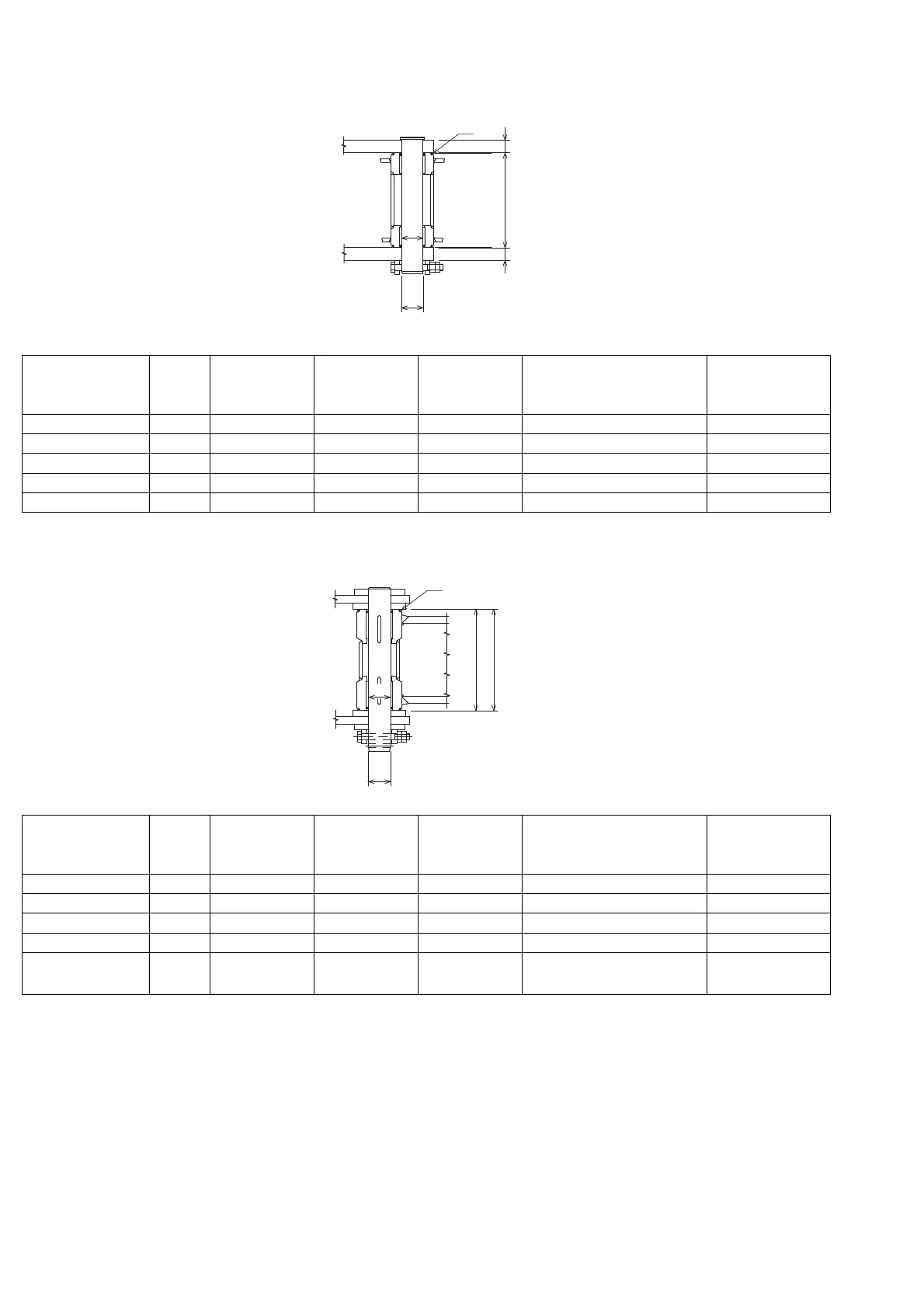

8. Connecting rod/Dipper
9. Compensator/Bucket
Part name Code
Measured
dimensions
(mm)
Standard
value (mm)
Usage limit
(mm)
Judgment Solution
Arm link a 50 47 Acceptable/Unacceptable Replacement
Arm b 375 371 Acceptable/Unacceptable Replacement
Clearance c 1.0 - 1.5 Adjust with shims Acceptable/Unacceptable Adjust with shims
Pin d Ø Ø85 Ø84 Acceptable/Unacceptable Replacement
Bushing (arm) e Ø Ø85 Ø86.5 Acceptable/Unacceptable Replacement
Part name Code
Measured
dimensions
(mm)
Standard
value (mm)
Usage limit
(mm)
Judgment Solution
Bucket a 401 406 Acceptable/Unacceptable Replacement
Bucket link b 400 397 Acceptable/Unacceptable Replacement
Clearance c 1.0 - 3.5 Adjust with shims Acceptable/Unacceptable Adjust with shims
Pin d Ø Ø90 Ø89 Acceptable/Unacceptable Replacement
Bushing
(bucket link)
e Ø Ø90 Ø91.5 Acceptable/Unacceptable Replacement
baa
d
e
c
SI14004-005-a
b a
d
c
e
SI14004-005-b
