E-50

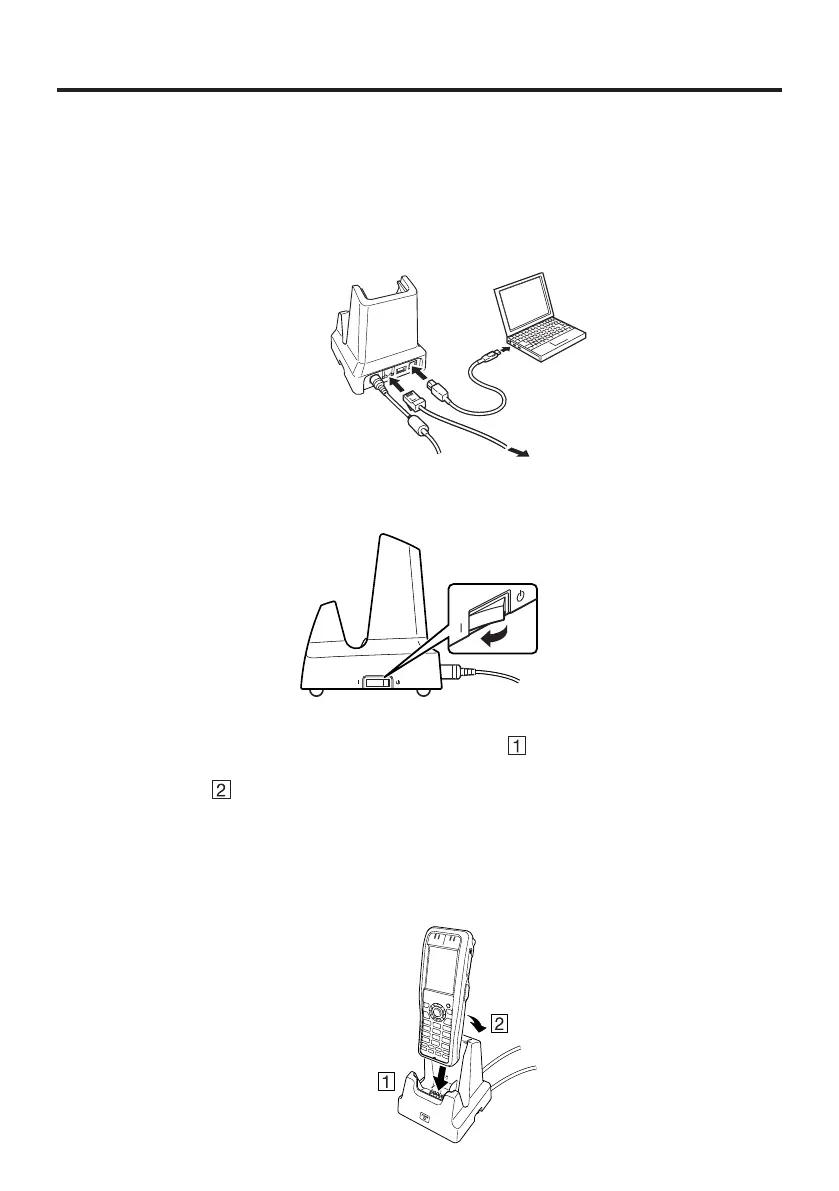

4. Before using the cradle ports, remove the caps from the ports.
When using a LAN, connect one end of the LAN cable to the LAN port and the other
end to the PC or hub.
When using a USB connection, connect one end of the USB cable (DT-380USB-A)
to the USB port and the other end to the PC.
The USB host port is used for connecting the cradle with other USB peripheral device.
PC
PC or hub
5. Turn on the power switch on the right side of the Ethernet Cradle. The power LED on
the front of the Ethernet Cradle lights red.
6.
Align the terminals on the bottom of the DT-X200 with the power supply terminals in
the Ethernet Cradle before inserting the DT-X200 (
). Push the DT-X200 fully into
the Ethernet Cradle until the mount hooks in the cradle engage the mount holes in the
DT-X200 (
).
Check that the power LED on the front of the Ethernet Cradle lights green and that
indicator 1 on the DT-X200 lights.
To remove the DT-X200 from the Ethernet Cradle, tilt the DT-X200 forward to
disengage the mount hooks from the mount holes and then lift the DT-X200 out of
the cradle.
To Next Page
