E-56

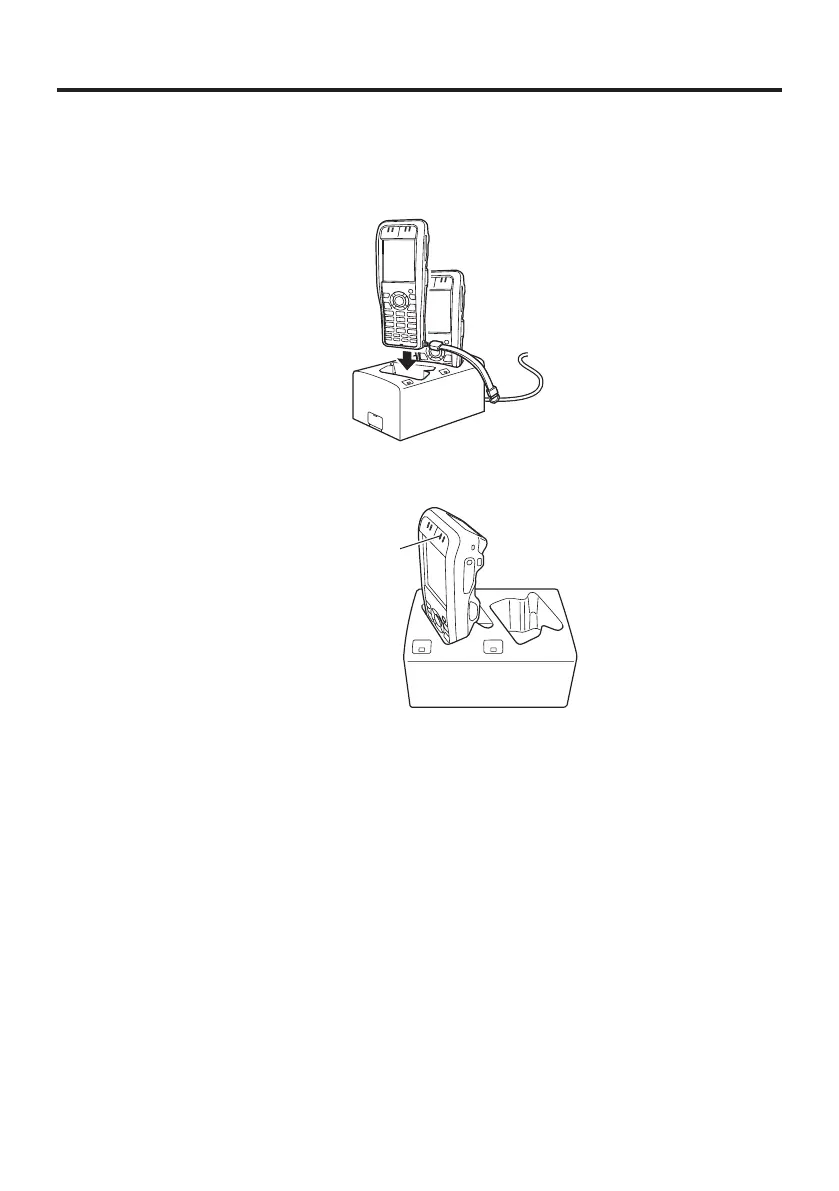

4. Place DT-X200 in the charger as illustrated so that the terminals on the bottom of the
DT-X200 make contact with the power contacts of the charger. Take care not to trap
objects such as the hand strap in the charger.
The power LEDs on the top of the charger light green and indicator 1 lights orange.
Indicator 1
Status of Indicator 1 on DT-X200:
Orange: Charging the battery pack.
Red Flashing: Standby due to battery pack error or the surrounding temperature is out
of the charging temperature range.
(charging begins when the temperature is within the charging temperature
range)
Green: Charging the battery pack is complete.
To Next Page
