E-46
Ethernet Cradle (HA-S62IO)
The optional Ethernet Cradle (HA-S62IO) makes it possible to transmit fi le data between
DT-X400 and a PC via a USB or LAN connection (download or upload). You can also use
the Ethernet Cradle to charge the battery pack installed in DT-X400.

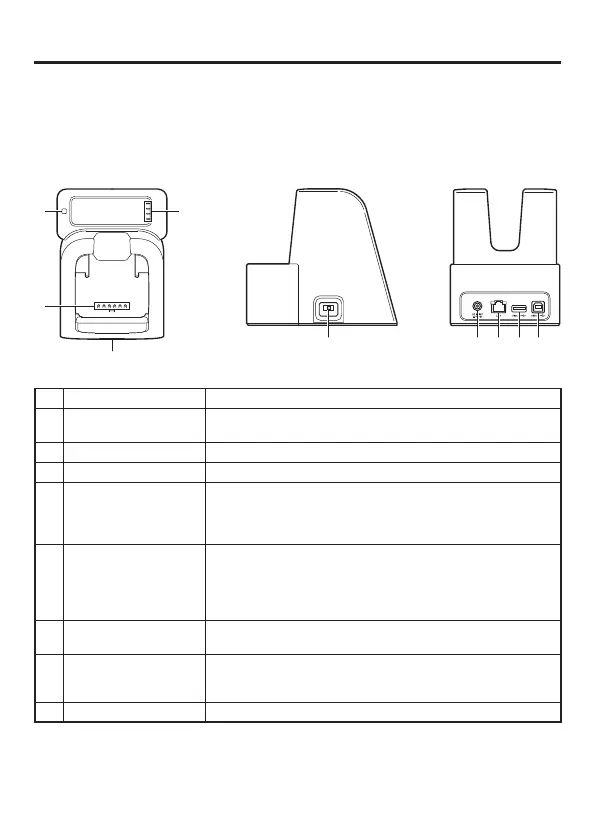

Part Names and Operation
<Top> <Left> <Back>
96
7
8
5
1234
1 AC Adaptor Jack Used to connect an AC adapter as a power supply.
2 LAN Port
Used to connect and transfer data to a computer or hub via a LAN cable
for data transfer.
3 USB Host Port Used to connect a corresponding USB peripheral device.
4 USB Client Port Used to connect to a computer.
5 Selector Switch
Used to switch between a USB connection and a LAN connection.
LAN: LAN
A: USB host
B: USB client
6
Charging Status LED
(Battery Pack)
Shows the charging status.
Red: Charging
Green: Charging complete
Flashing alternately red/green: Battery pack fault or outside charging
temperature range
7
Power Supply/Data
Communication Terminal
Used to supply power to the DT-X400 or for data communication.
8 Power Supply LED
Indicates the power status and the mounting status of the DT-X400.
Red: Power on, DT-X400 is not installed.
Green: Power on, DT-X400 mounted correctly.
9 Battery Pack Contacts Used to charge the battery pack.
