General Guide
General Guide
The numbers in parentheses indicate the pages where each item is explained.
1
[0] (Movie) button
(page 68)
2
Zoom controller
(pages 32, 52, 124)
3
Shutter button
(pages 29, 31)
4
[ON/OFF] (Power)
(pages 24, 29)
5
Flash (page 49)
6
Front lamp
(pages 41, 113)
7
Speaker
8
Lens
9
Microphone (page 69)
bk
Front shutter button
(pages 99, 127, 148)
bl
[MODE] button
(pages 31, 39, 68)
bm
Back lamp
(pages 21, 23, 29, 32,
49)
bn
Strap hole (page 2)
bo
Terminal cover
bp
[HDMI OUT]
HDMI output (micro)
(pages 94, 125)
bq
[USB] port
(pages 20, 22)
br
[MENU] button
(pages 68, 96)
bs
[p] (PLAY) button
(pages 29, 35)
bt
[SET] button
(pages 40, 68, 96)
ck
Control button
([8][2][4][6])
(pages 40, 68, 79, 96)
cl
Monitor screen
(pages 11, 31)
9 8
123
45 76
bk
btck bs br
bm
cl
bl bn bo
bp
bq

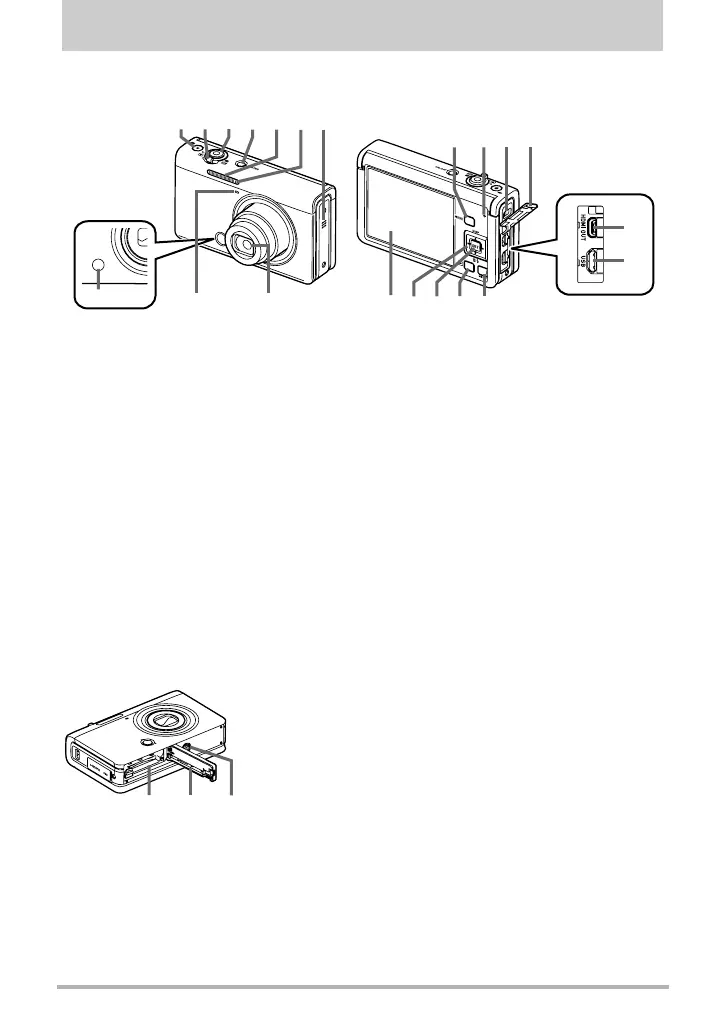

Front Back
co cmcn
Bottom
cm
Tripod hole
Use this hole when attaching to a tripod.
cn
Battery cover
co
Battery/memory card slots (pages 19, 27)
