Casio V-R200 User Manual

V-R200 / VER.1
– 49 –
E. Replacing the Motor
E-1. Remove the IOC ASSY.
Reference Procedure: C-1 to C-3

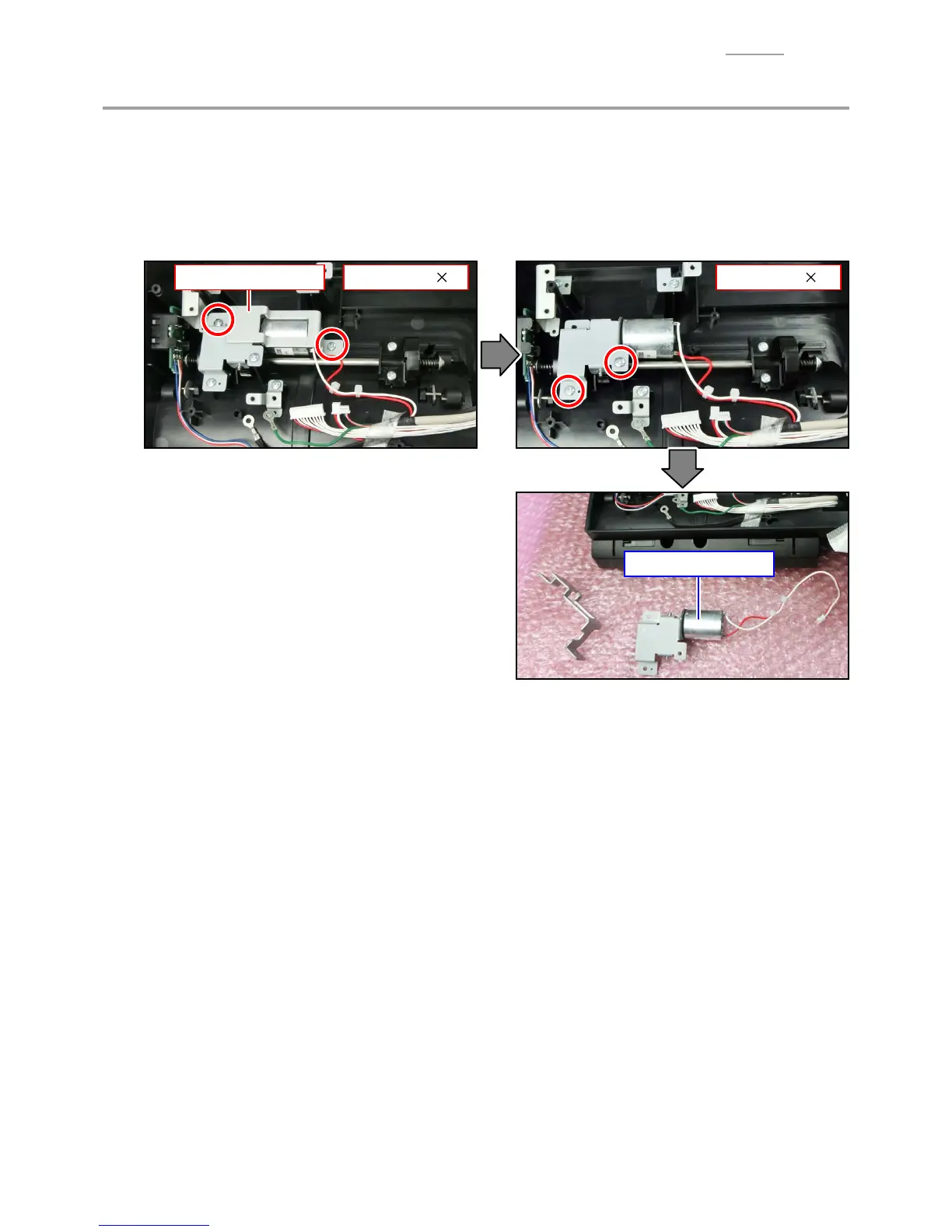

E-2. Undo two screws and remove the MOTOR SUPPORT.
E-3. Undo two screws and replace the motor (GEAR ASSY) with a new one.
MOTOR SUPPORT
GEAR ASSY
Screw (S11) 2 Screw (S4) 2
E-4. Assemble the parts in the reverse order of the disassembly procedure.
