1-4. Touch panel calibration
0
When the F case “CASE ASSY/FRONT” is replaced with a new one, be sure to carry out the touch panel
calibration.
TIPS: Same operation as Touch Screen Calibration in Settings mode.
1

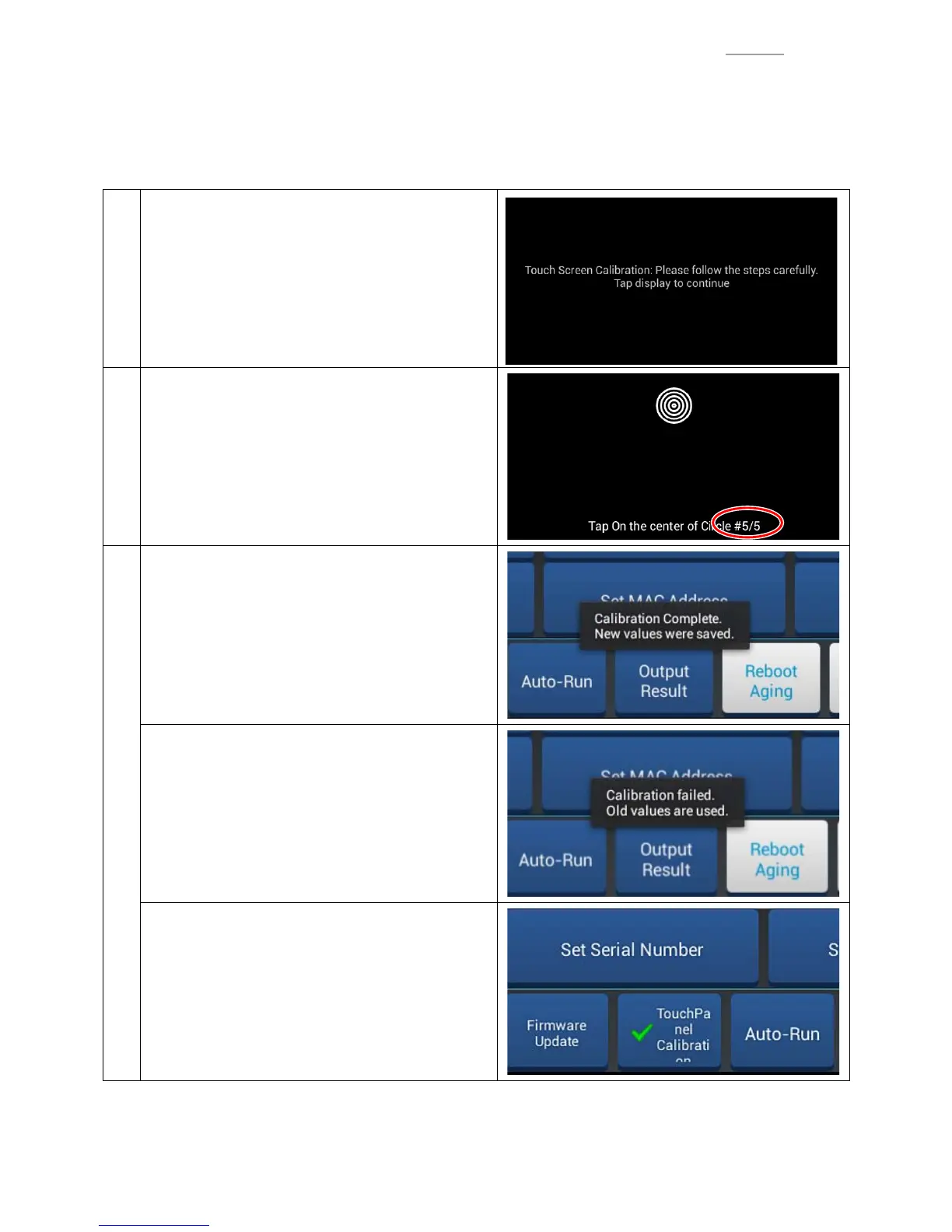

Tap “TouchPanel Calibration”.
Tap the screen, following the onscreen instructions.
2
When tapping the last screen (#5/5), the screen
returns to the menu screen.
3
When the calibration ends successfully.
• A success message is displayed for several
seconds.
• The set values are saved.
When the calibration fails.
• A failure message is displayed for several seconds.
• The set values are not saved.
Regardless of the calibration result (either success
or failure), test result “OK” is displayed.
TIPS: When the test result is displayed, the letters
“TouchPanel Calibration” are misaligned.
To Next Page
