G. Replacing the Cable
G-1. IOC PCB - E843-PR PCB
FFC-JOINER-E840PR
Note on replacing
0

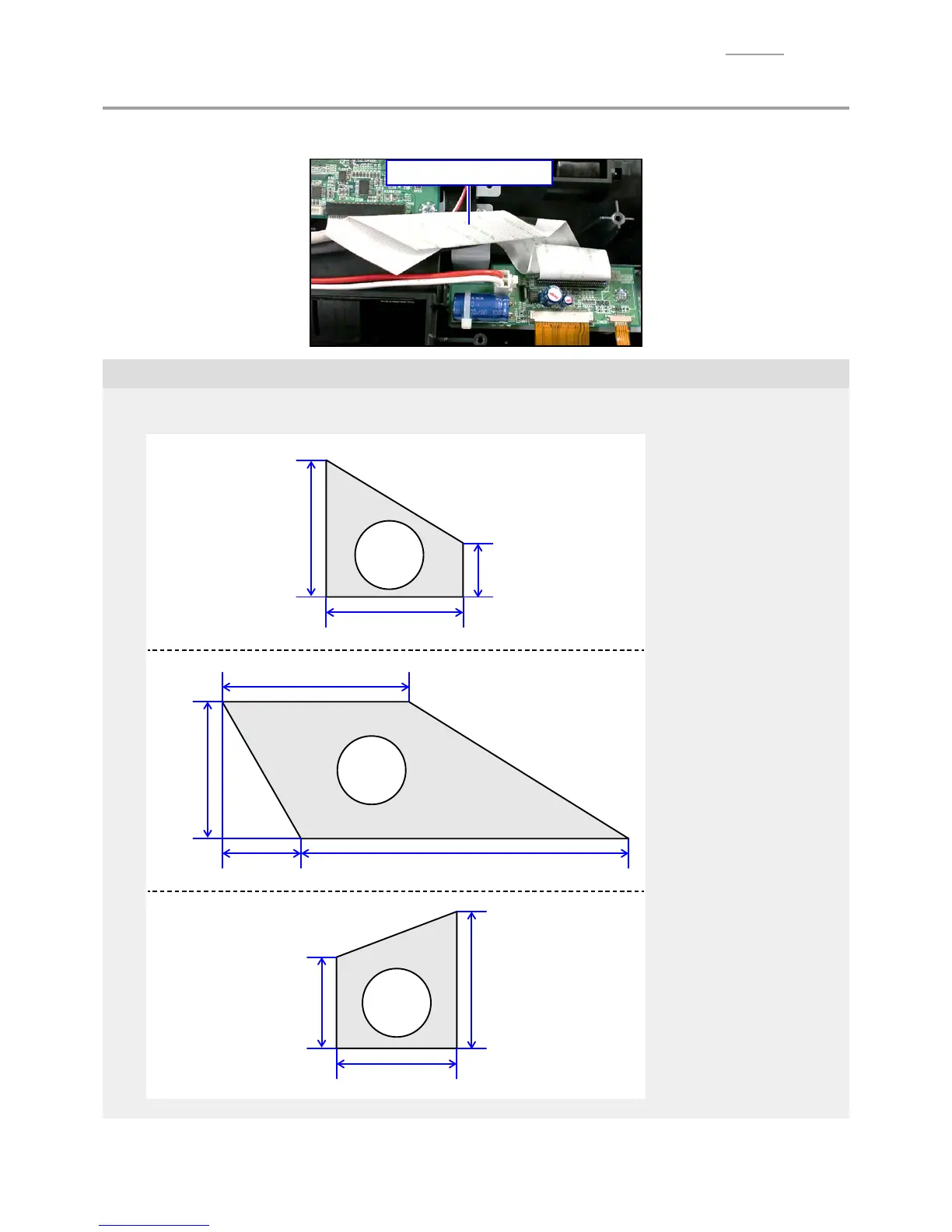

Form the FFC into shape by using the following jigs.
1
33 mm
13 mm
33 mm
2
33 mm
19 mm
48 mm
79 mm
3
33 mm
29 mm
22 mm
