V-R200 / VER.1
– 56 –

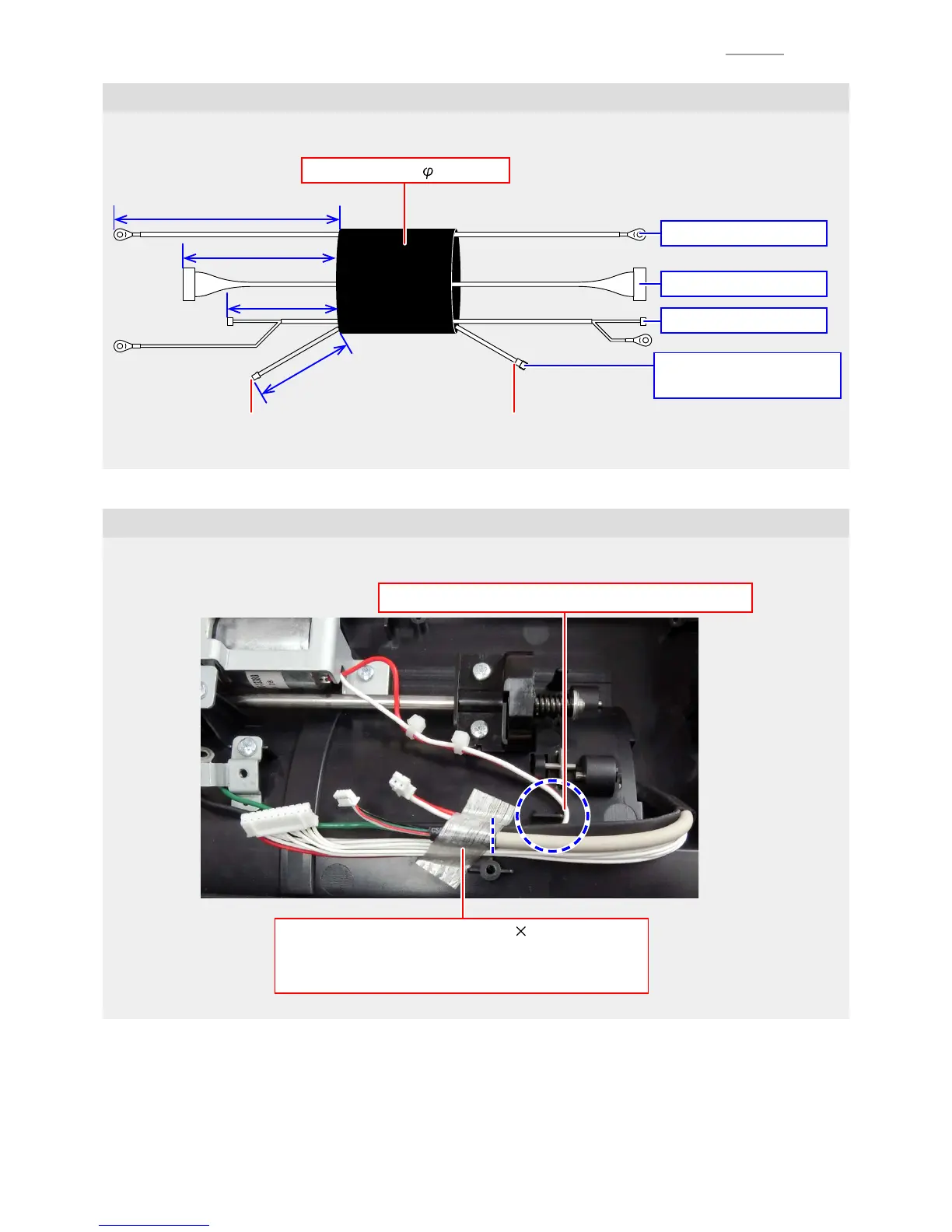

Note on replacing
0
Bundle the three or four cables with tube.
175 ± 5 mm
110 ± 5 mm
130 ± 5 mm
80 ± 5 mm
CABLE-SUBASSY/IOC
CABLE-SUBASSY/USB
CABLE-SUBASSY/DASR
* V-R200-BD only
CABLE-SUBASSY/FG
Connector (female)Connector (male)
Tube (70mm, 10 mm)
Note on reassembling
0
Fix the cables with tape.
FILAMENT-TEPE (15 40)
NOTE: Align the border between black and white of the
USB-CABLE-SUBASSY with the boss.
NOTE: Fold back the lead wires of the motor at the rib.
To Next Page
