Cassese CS 940 - Page 19

USER & PARTS MANUAL
CS940
19

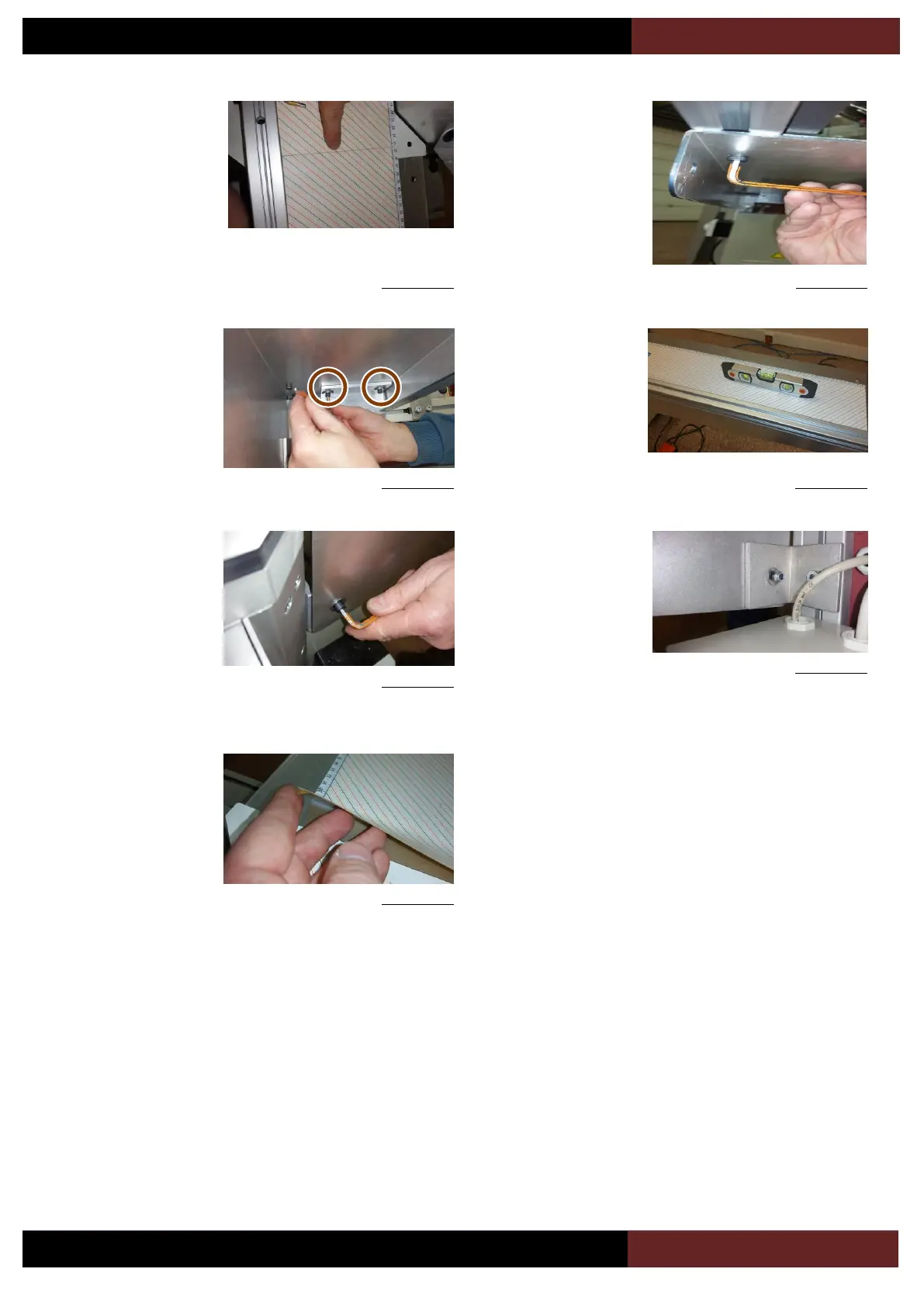

Make sure the scales
are well aligned.
Figure 4-22
Figure 4-21
Still with the help of
the second person
holding the arm
levelled, lock the 3
screws under the arm.
Lock the 2 screws
under the arm.
Figure 4-23
With a bubble level on
the arm, hold it in
correct position while
a second person is
locking the front screw
(see following image).
Figure 4-24
Lock the screw (V1) of
the right arm.
Figure 4-25
Install back the
washer and the nut of
the screw (V1). Lock
the nut while holding
the screw with an
Allen key.
Figure 4-26
Remove the adhesive
protection of the arm
scale and stick it on
the table of the
machine.
Figure 4-27
