Feed gap adjustment of the unit is always performed before shipment. However, feed gap
adjustments may be required periodically. The rubber components in the feed mechanism will wear
over time, causing the feed gap to get larger. This can lead to Double or Half Note errors. On the
other hand, if the feed gap is adjusted too tight, this can lead to Chain errors or bill jamming.
3.a) If more than one bill is being pulled into the
feed mechanism (Double or Half Note errors),
turn the knob clockwise (tighten the feed gap).
Adjust 1 dot, then re-test the machine to see if
the problem is corrected. Repeat if necessary.
3.b) If Chain error or bill jamming is seen on the
input, turn the knob counterclockwise (loosen
the feed gap). Adjust 1 dot, then re-test the
machine. Repeat if necessary.
6.2 Feed Gap Adjustment
To adjust the feed gap properly, you will
need a
flathead screw driver
(not included).
1) Ensure the machine is turned off

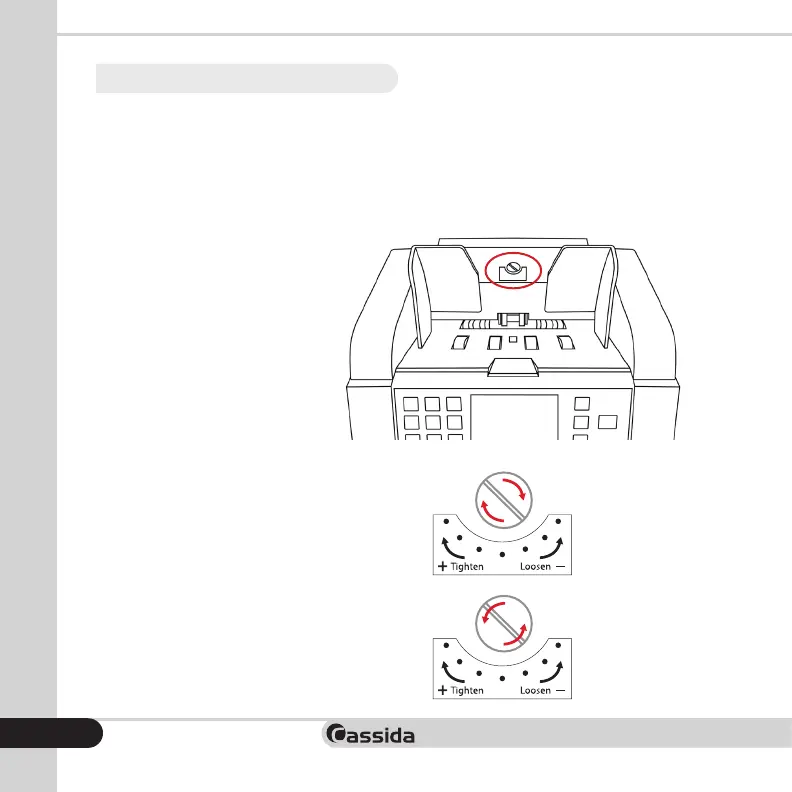

2) Locate the feed gap adjustment
screw (see diagram to the right)
on the top of the machine.
24
