Cassida 8800R Mixed Currency Counter & Sorter
The contact image sensors (CIS), ultraviolet (UV) and infrared (IR) sensors of the unit are calibrated
properly from the factory. With regular, basic use, the sensor’s sensitivity decreases which can lead to
IMAGE errors. To resolve this issue, the unit can be re-calibrated using the white calibration card that
came with the unit.
Please follow the steps below to calibrate the sensor:
1. Ensure the machine is turned on
2. Press MENU, select 4. SERVICE, and then select 2. CALIBRATION. Now, select CIS, and follow
the instructions on the screen.
3. Rotate the 8800R to the back.

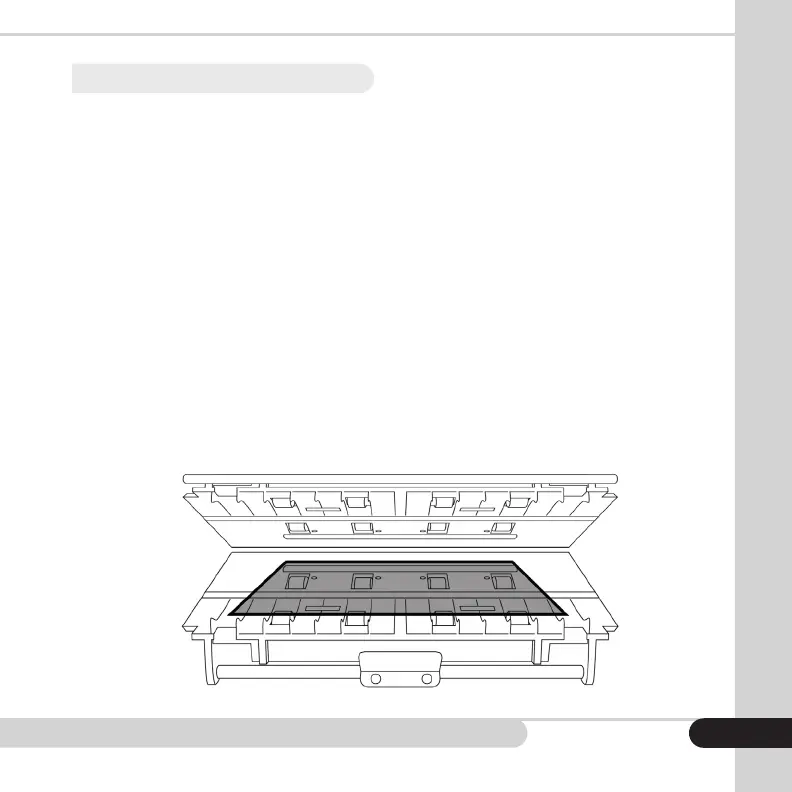

4. Pull back door handle to get access to sensor blocks. When inside, push the metal latch down to
get access to upper and lower sensor block with CIS sensors. Put provided laminated calibration
card between the two sensor blocks. Bring the lower sensor block back to its initial position by
pushing the metal latch down and lifting the lower sensor block. Make sure the lower sensor block is
hooked back properly.
6.3 Calibration Procedure
