REV 12.18.24 Pg.14 MAX

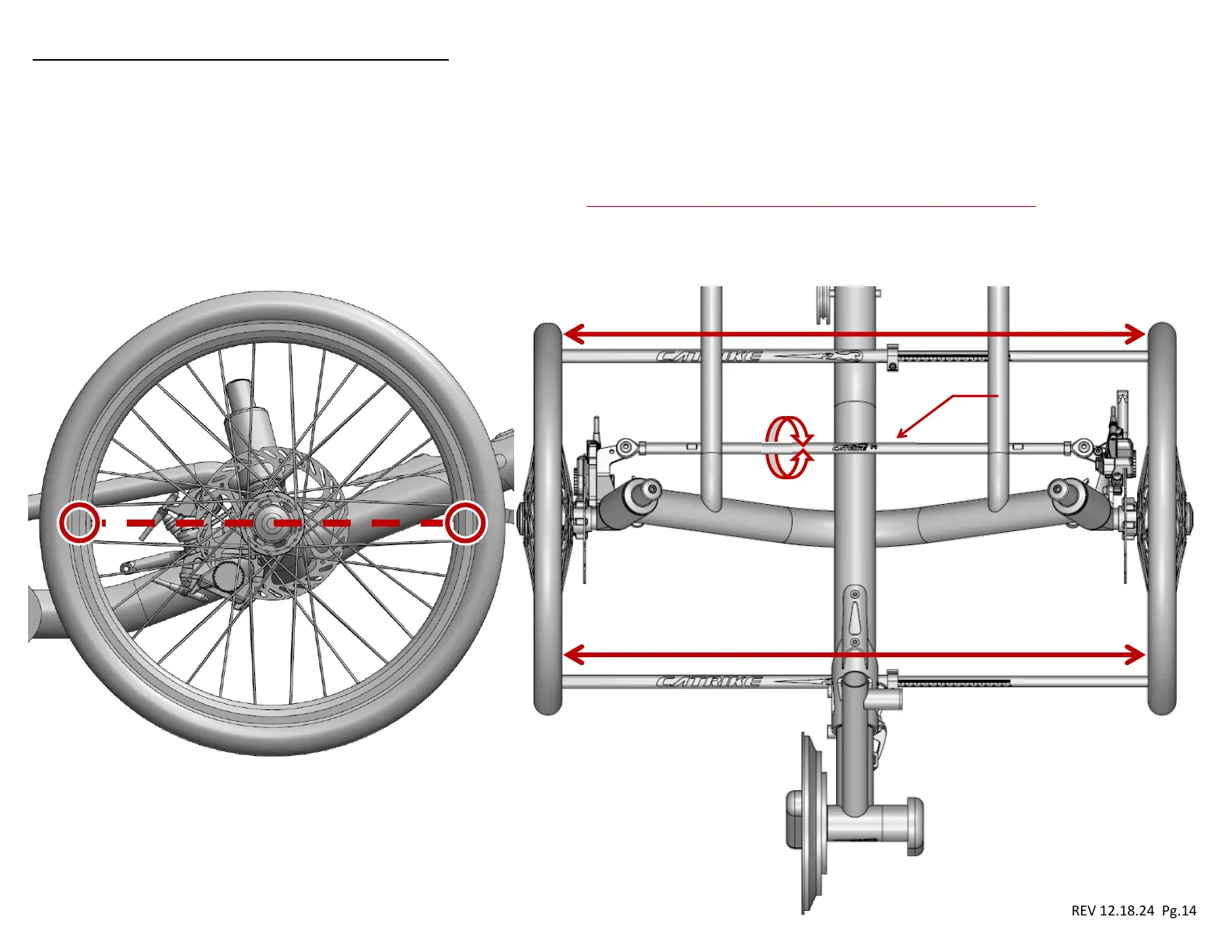

TIE-ROD ADJUSTMENT CONTINUED
FRONT MEASUREMENT
REAR MEASUREMENT
TIE-ROD BODY
STEP 4
ONCE THE TIE-ROD HAS BEEN ADJUSTED
TIGHTEN THE JAM NUTS AGAINST THE TIE-
ROD BODY.
STEP 2
WITH THE WHEELS POINTING AS STRAIGHT AS
POSSIBLE, USE THE CALIBRO OR A TAPE
MEASURE TO MEASURE ACROSS THE FRONT
WHEELS ON THE RIM AT AXLE HEIGHT; TWO
POINTS CIRLCED BELOW.
STEP 3
COMPARE THE FRONT AND REAR MEASUREMENTS, ADJUST THE TIE-ROD BY
SPINNING THE MAIN BODY SO THAT THE FRONT AND REAR MEASUREMENT ARE
EQUAL WHILE SITTING ON THE TRIKE.
IF IT IS NOT POSSIBLE TO SIT ON THE TRIKE WHILE ADJUSTING TOE, THEN REFER
TO THE SUPLEMENTAL INSTRUCTIONS ON THE FOLLOWING PAGE.
