TIE-ROD ADJUSTMENT
STEP 1
LOOSEN THE JAM NUTS ON BOTH
SIDES OF THE TIE-ROD.
NOTE THAT ONE SIDE OF THE TIE-
ROD IS REVERSE THREADED.

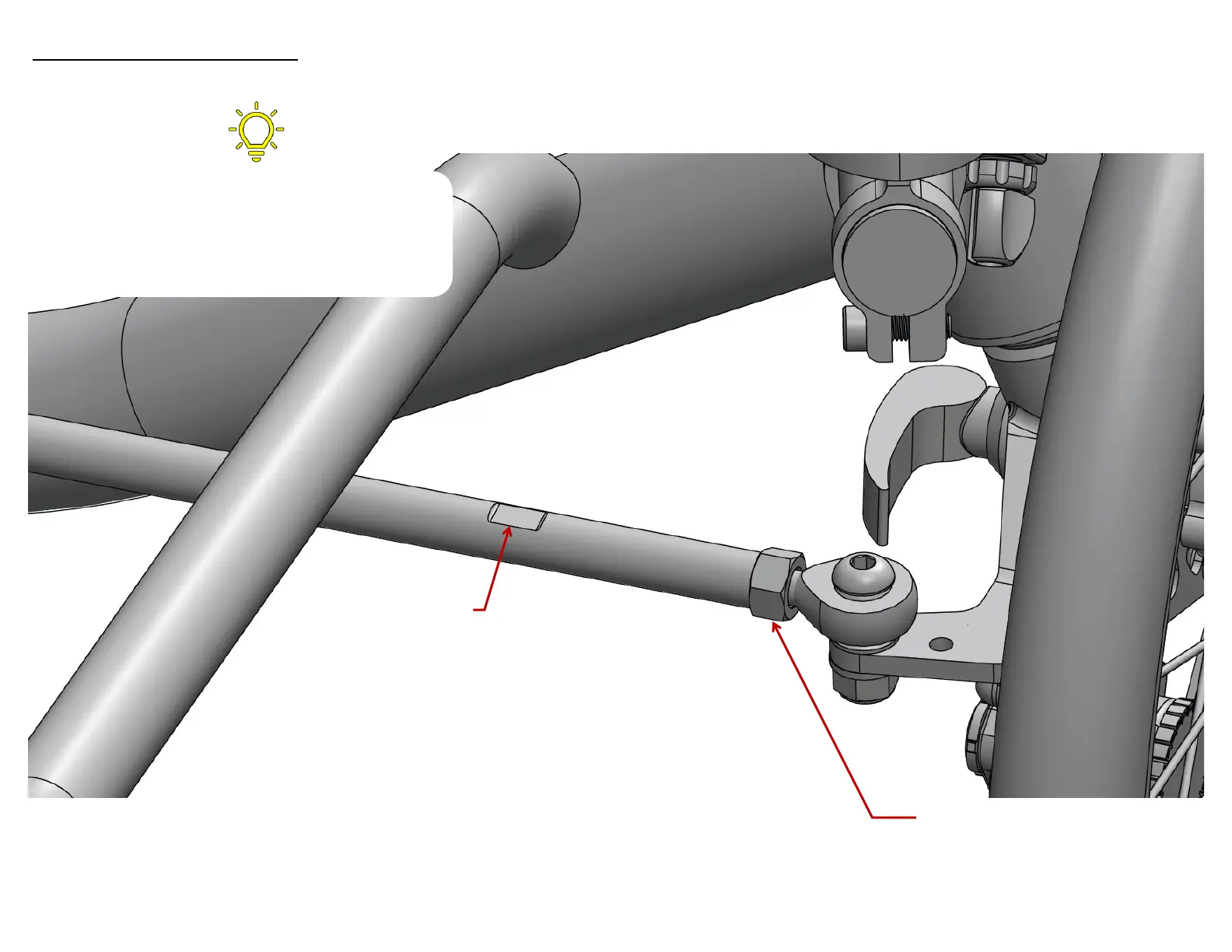

11MM WRENCH FLATS
*ON BOTH SIDES OF TIE-ROD
JAM NUT - 14MM WRENCH
*ONE SIDE IS REVERSE THREADED
THE PURPOSE OF SETTING THE CORRECT TOE IS TO
OPTIMIZE TIRE LIFE AND HANDLING.
IT IS RECOMMENDED TO MEASURE AND ADJUST THE
TOE WHILE SITTING ON THE TRIKE. THIS WILL ENSURE
THE PERFECT TOE SETTING.
