Catrike MAX - Rear Wheel Install

REV 12.18.24 Pg.12 MAX

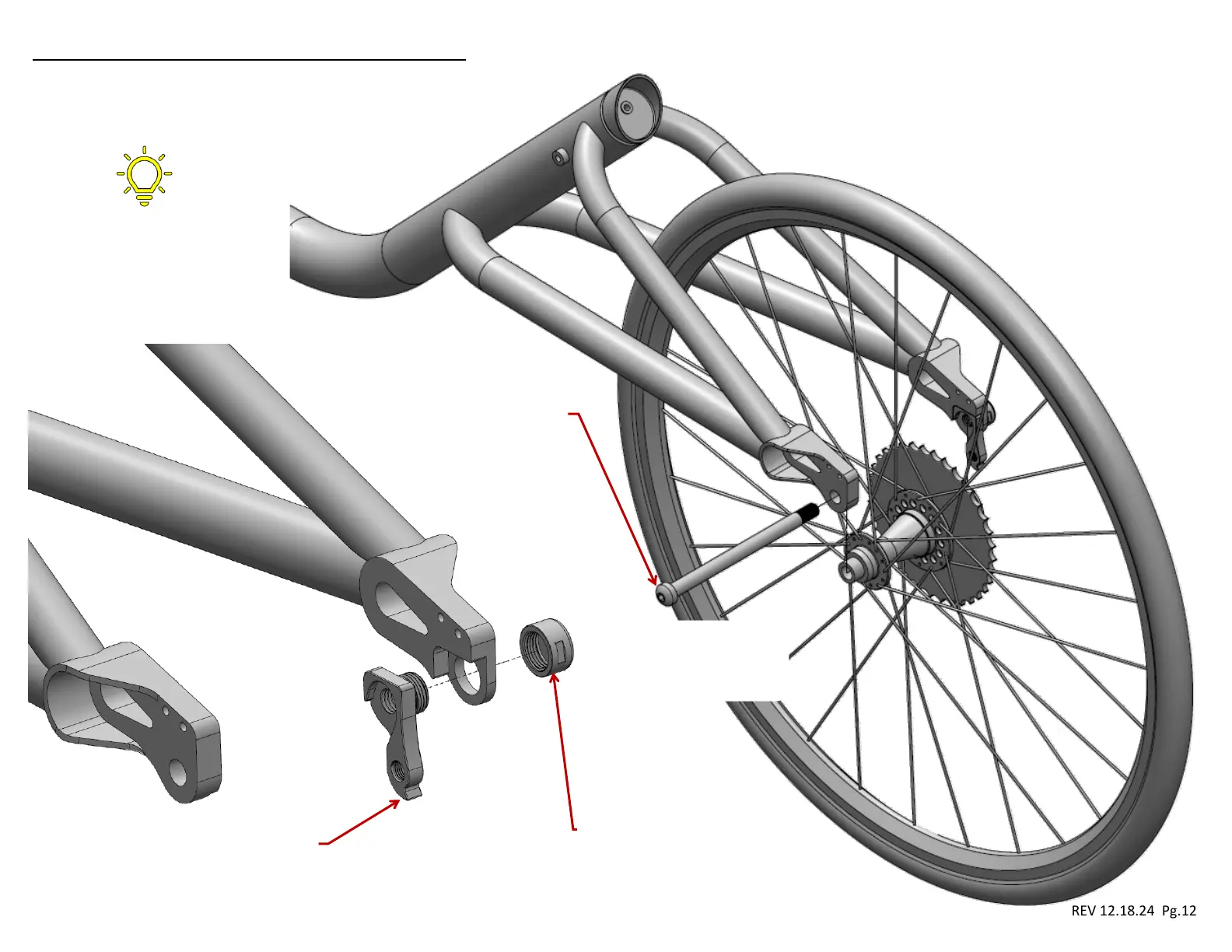

THRU AXLE HUB & HANGER INSTALL
REAR DERAILLEUR NUT - THRU AXLE
# BC1353
TORQUE 17Nm
THRU AXLE 12x167
# FB-M12
GREASE THREADS AND SHAFT
TORQUE 10Nm
REAR DERAILLEUR HANGER - THRU AXLE
# BC1352
GREASE THREADS
STEP1
INSTALL DERAILLEUR
HANGER.
STEP2
INSTALL HUB IN TO REAR
DROPOUTS.
STEP3
INSTALL AND TIGHTEN
THRU AXLE TO 10NM
TIP:
IF INSTALLED, SHIFT REAR
DERAILLEUR TO SMALLEST
COG TO MAKE TIRE
INSTALL AND REMOVAL
EASIER
