Catrike MAX - Spindles

REV 12.18.24 Pg.5 MAX

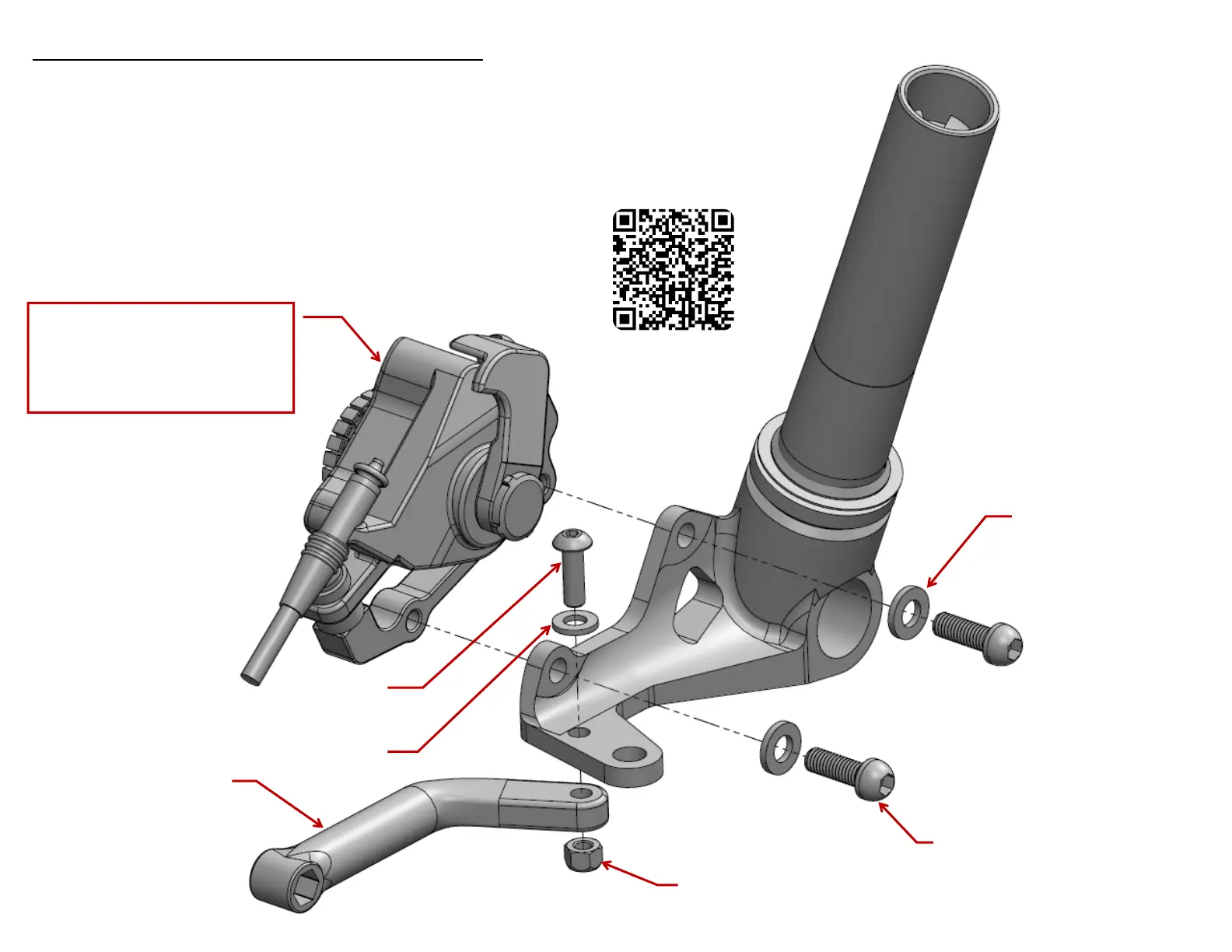

RIGID SPINDLE MAIN ASSEMBLY LEFT
M6 WASHER
M5 NYLOCK HEX NUT
INSTALL INTO HEX POCKET
M6 WASHER (2x)
COMPUTER SENSOR MOUNT
# BC1443
SRAM BB7 FRONT BRAKES
20MM IS MOUNT FOR 160MM ROTOR
TORQUE BOLTS TO 10Nm (88INLBS)
BRAKE MOUNT BOLTS (2x)
TORQUE 10Nm (88INLBS)
FOR BRAKE AND CALIPER
ADJUSTMENT VISIT
SRAM SERVICE HUB
M5x16 BHCS
DO NOT OVER TIGHTEN
