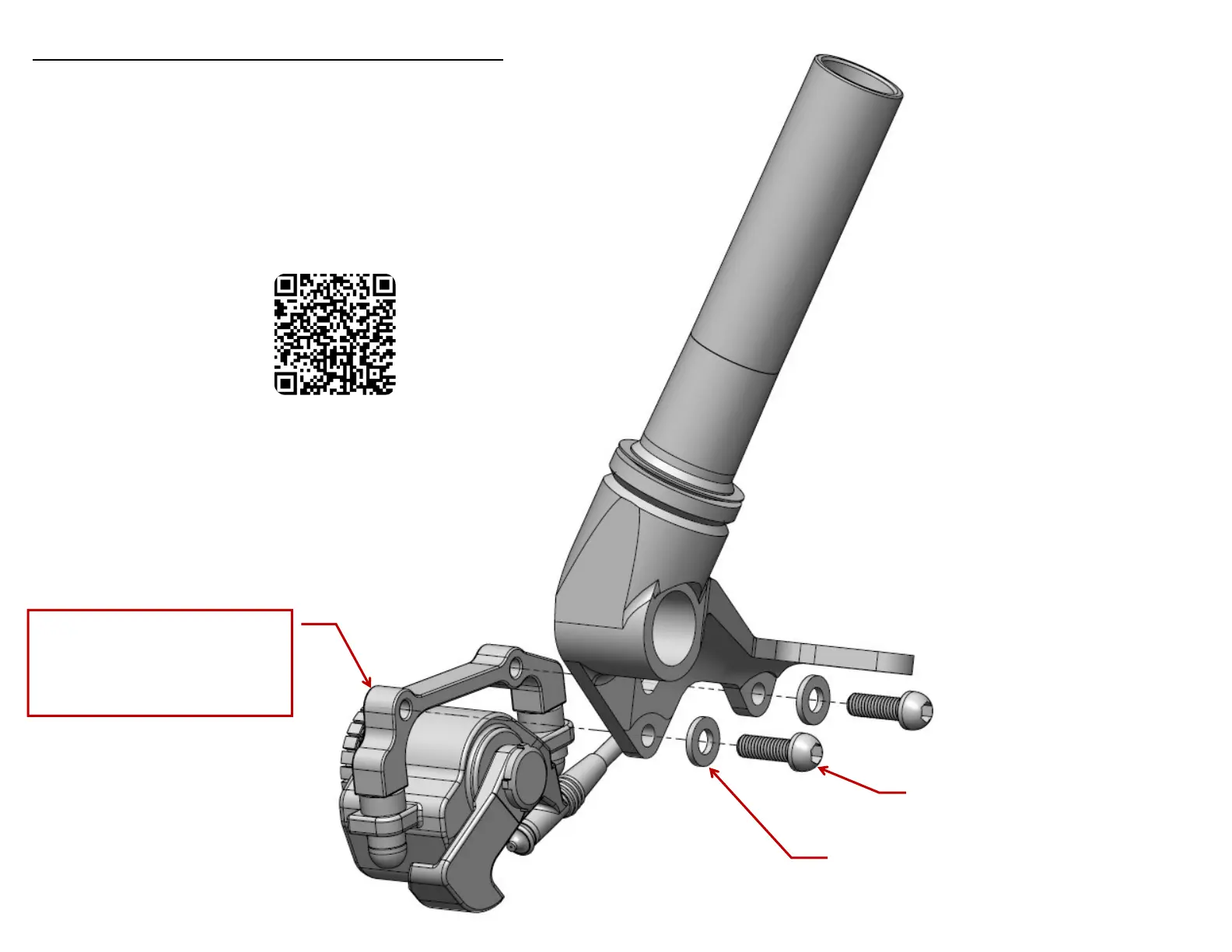

RIGID SPINDLE MAIN ASSEMBLY RIGHT
M6 WASHER (2x)
SRAM BB7 FRONT BRAKES
20MM IS MOUNT FOR 160MM ROTOR
TORQUE BOLTS TO 10Nm (88INLBS)
BRAKE MOUNT BOLTS (2x)
TORQUE 10Nm (88INLBS)
FOR BRAKE AND CALIPER
ADJUSTMENT VISIT
SRAM SERVICE HUB
