Catrike MAX - Assist Bar Adjustment

REV 12.18.24 Pg.18 MAX

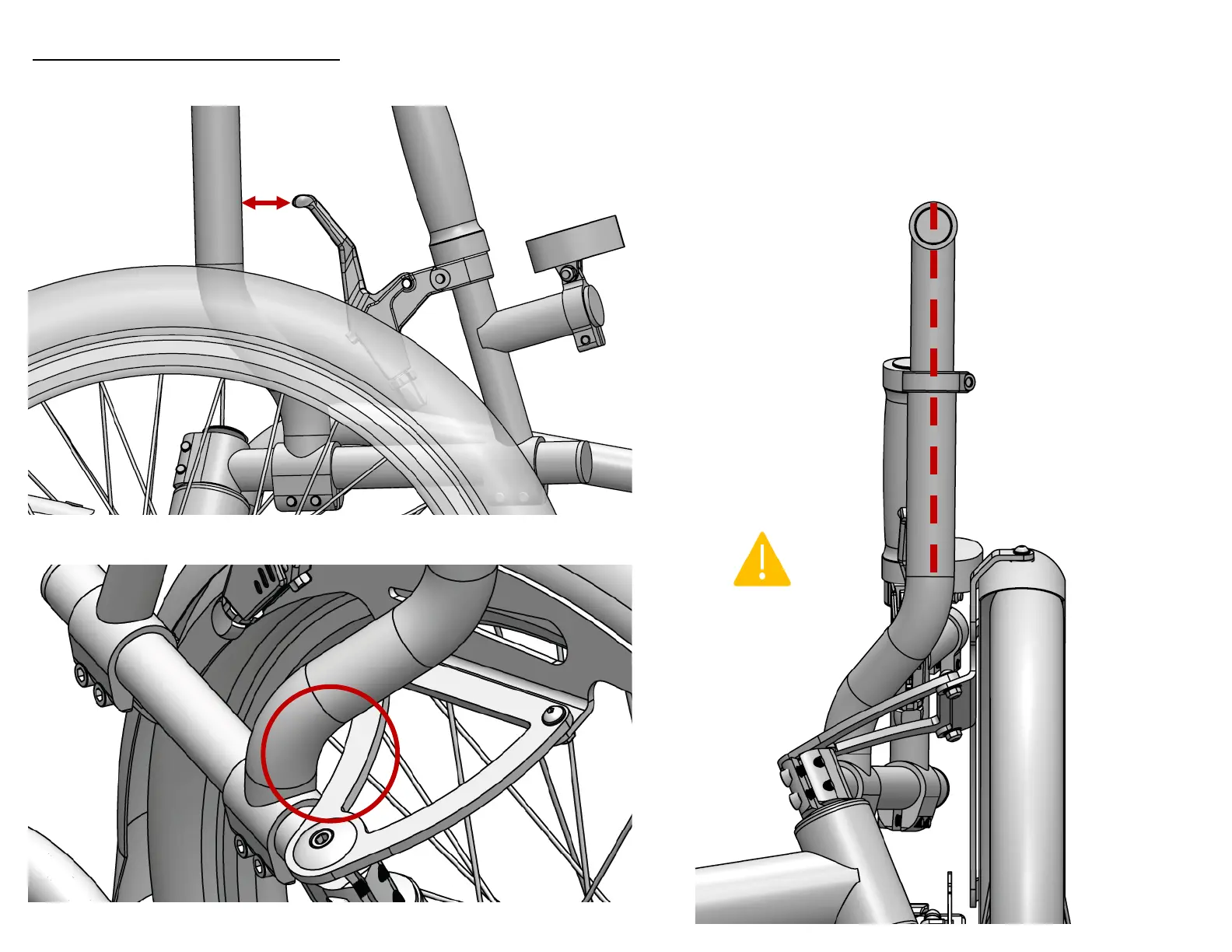

ASSIST BAR ADJUSTMENT
ALIGN ASSIST BAR SO THAT IT IS
VERTICAL AND LEAVES SPACE
FOR THE RIDERS HAND AND THE
BRAKE LEVER
IF USING A FRONT FENDER,
LEAVE CLEARANCE BETWEEN
THE FENDER MOUNT BOTTOM
AND THE ASSIST BAR BODY
