REV 12.18.24 Pg.15 MAX
SUPPLEMENTAL TOE ADJUSTMENT INSTRUCTIONS

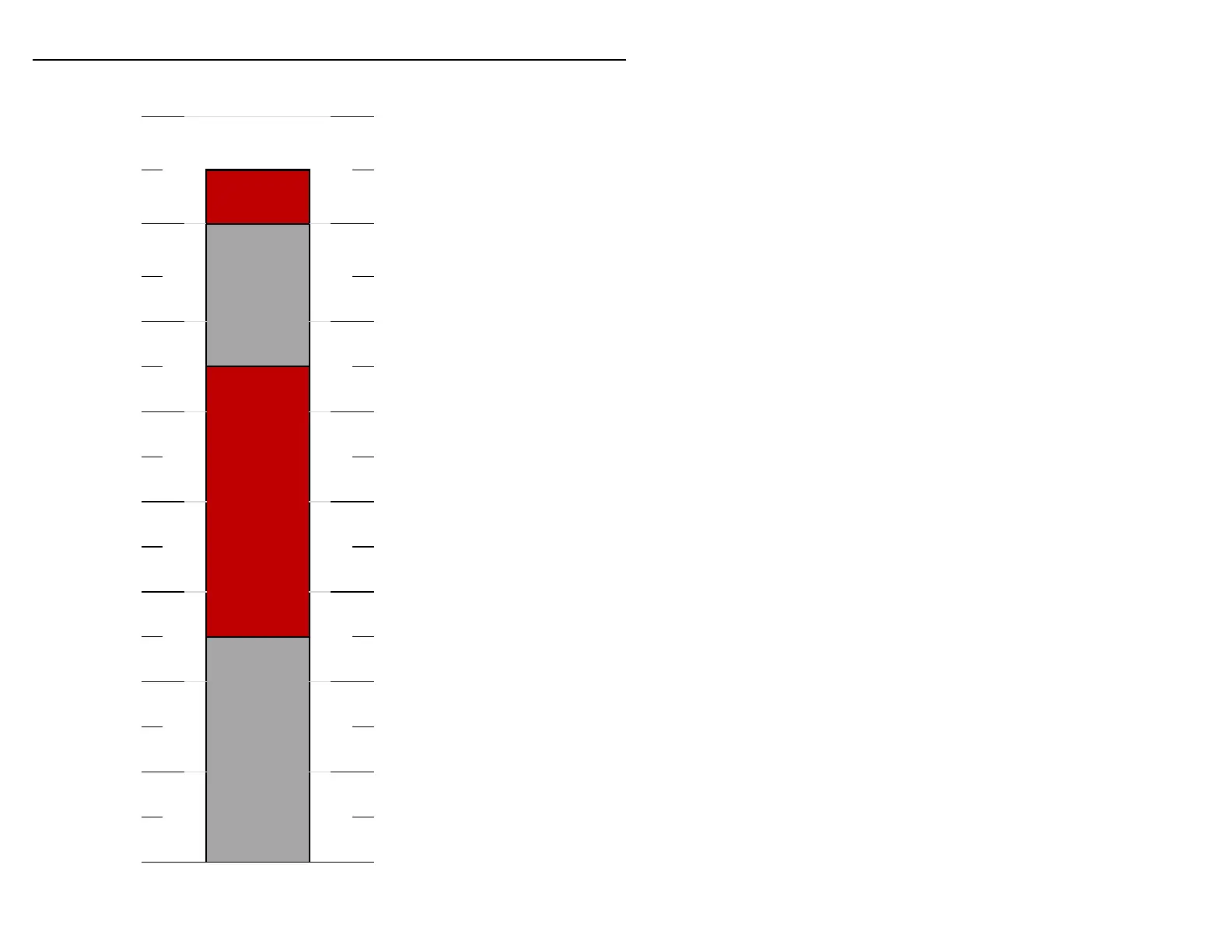

Rider Weight (lbs)
450 204
Rider Weight (kgs)
MAX Toe-In Offset
400
3
181
2.5
350
159
300
1.5
136
250
113
200
91
150
0
68
100
45
0
0
Toe-In Offset (mm)
IF THE RIDER CAN NOT SIT ON THE TRIKE WHEN PERFORMING THE TOE
ADJUSTMENT THEN FOLLOW THE STEPS TO APPROXIMATE THE CORRECT TOE FOR
THE RIDERS WEIGHT:
STEP 1
LOOSEN THE JAM NUTS ON THE TIE ROD.
STEP 2
SET THE FRONT WHEELS AS STRAIGHT AS POSSIBLE AND SET THE TOE TO 0MM
(THE FRONT AND REAR MEASUREMENTS ARE EQUAL).
STEP 3
WITH THE TOE SET TO 0, REFER TO THE CHART ON THE LEFT AND FIND THE TOE-IN
OFFSET USING THE RIDERS WEIGHT.
e.g. IF A RIDER WEIGHS 325 LBS (~147 KGS) THEN THE TOE-IN OFFSET IS 1.5MM.
STEP 4
WITH THE CALIBRO POSITIONED AT THE FRONT MEASUREMENT, ADJUST THE TIE
ROD SO THAT THE FRONT MEASUREMENT SHRINKS BY THE APPROPRIATE TOE-IN
OFFSET. FOR EXAMPLE, IF A RIDER WEIGHS 325 LBS (~147 KGS) THEN THE FRONT
MEASUREMENT SHOULD SHRINK BY 1.5MM. ONCE THE RIDER SITS ON THE TRIKE
THEN THE TOE SHOULD BE APPROXIMATELY 0.
STEP 5
TIGHTEN THE JAM NUTS AGAINST THE TIE ROD BODY.
