Catrike MAX - Headset Assembly

REV 12.18.24 Pg.4 MAX

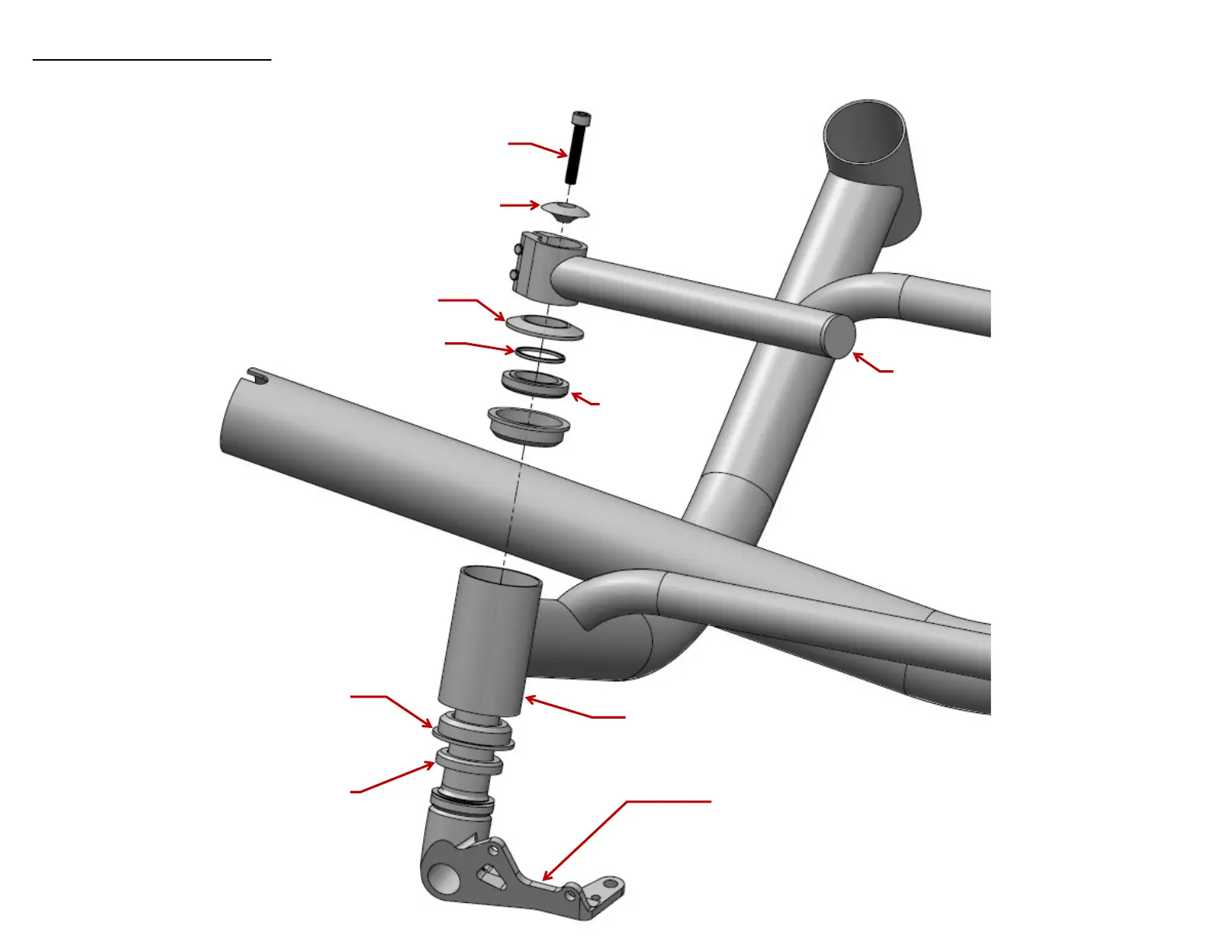

HEADSET ASSEMBLY
HANDLEBAR LOWER HORIZONTAL SUPPORT
# R: BC1004 / L: BC1005
BOLTS FACE TOWARDS INSIDE OF TRIKE
M6x35 SHCS
TOP CAP
DUST COVER
2MM HEADSET SPACER
HEADSET CUPS (2x)
PRESSED INTO HEADTUBE AT FACTORY
PTFE BEARING
HEADTUBE
HEADSET BEARING 36x45 BLUE SEAL
RIGID SPINDLE
# R: BC1243 / L: BC1244
