Catrike MAX - Chain Routing

REV 12.18.24 Pg.23 MAX

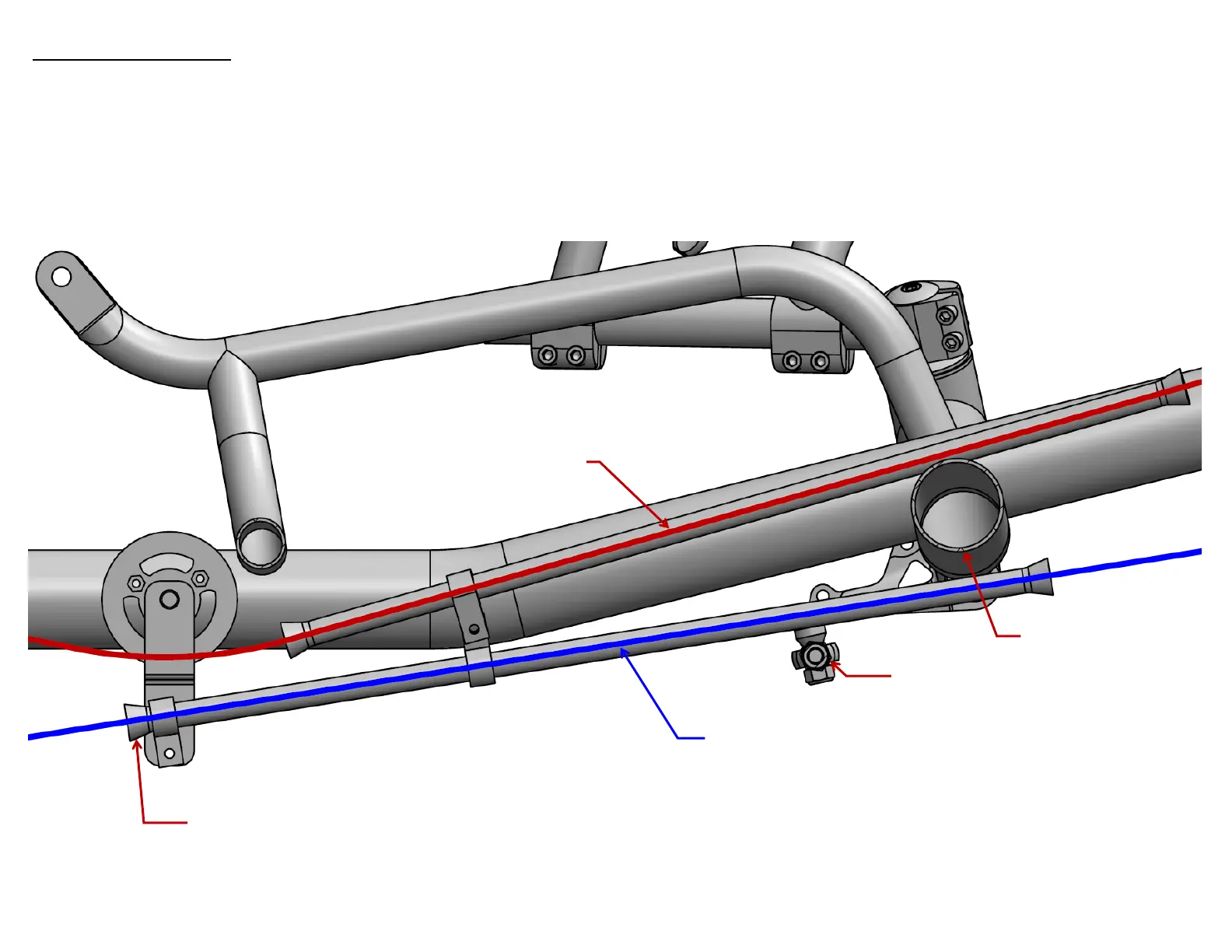

CHAIN ROUTING
DRIVE SIDE CHAIN TUBE ROUTED
ON TOP OF CROSS MEMBER
RETURN SIDE CHAIN TUBE
ROUTED ON TOP OF TIE-ROD AND
BELOW CROSS MEMBER
IF A CHAIN TENSIONER IS
INSTALLED THEN ROUTE CHAIN
TUBE BELOW TIE-ROD
TIE-ROD
CROSS MEMBER
SLIDE RETURN SIDE CHAIN TUBE
ALL THE WAY FORWARD TO AVOID
CHAIN RUB ON CROSS MEMBER
