Catrike MAX - Page 20

REV 12.18.24 Pg.19 MAX

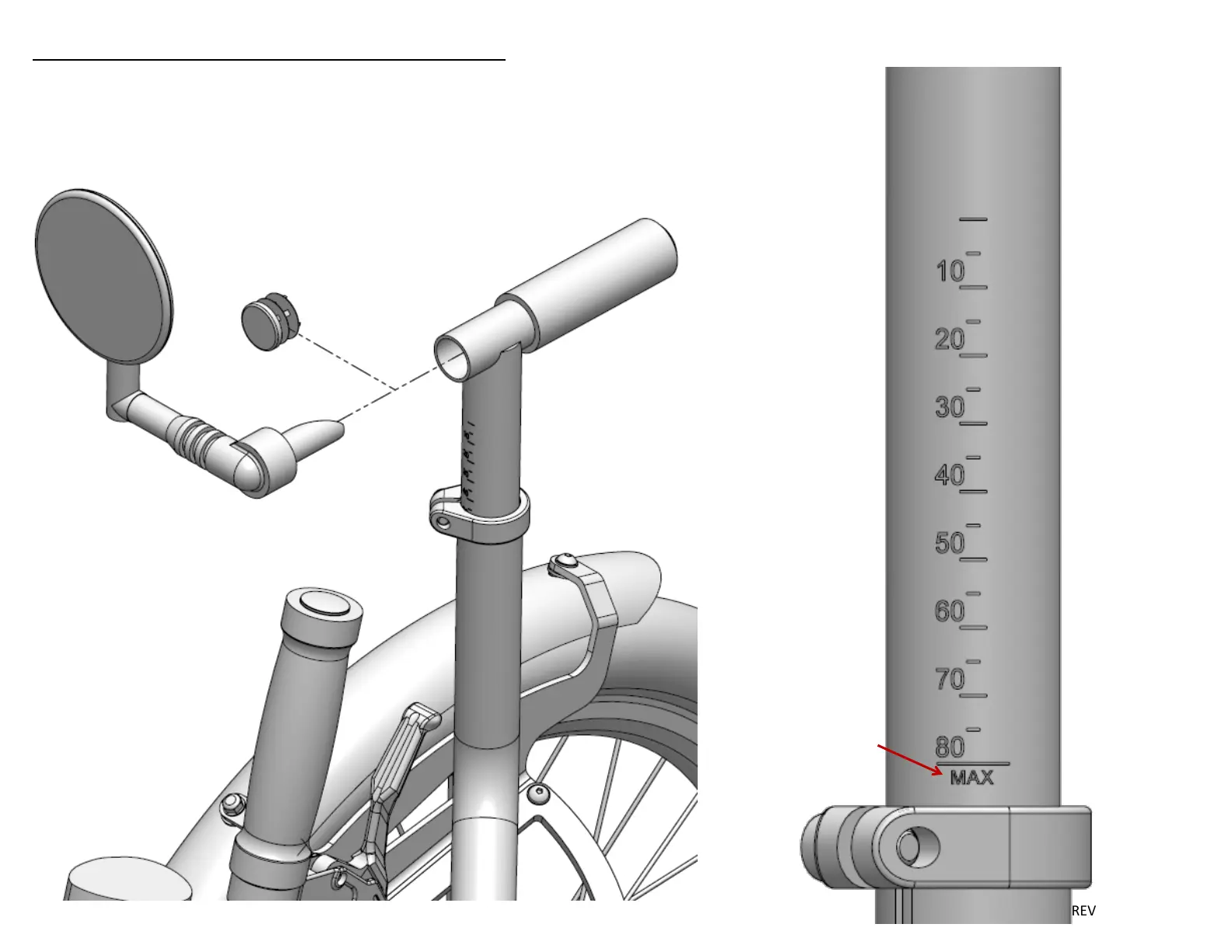

ASSIST BAR ADJUSTMENT AND MIRROR
ADJUST THE ASSIST
BAR TO A
COMFORTABLE HEIGHT
TO GET IN AND OUT OF
THE TRIKE
DO NOT EXTEND
ASSIST BAR PAST
“ MAX ” LINE
INSTALL THE MIRROR BY
REMOVING THE PLUG CAP
AND INSTALLING
MIRRYCLE MIRROR ON LEFT
ASSIST BAR
MIRRORS CAN BE PLACED
ON BOTH ASSIST BARS IF
DESIRED
