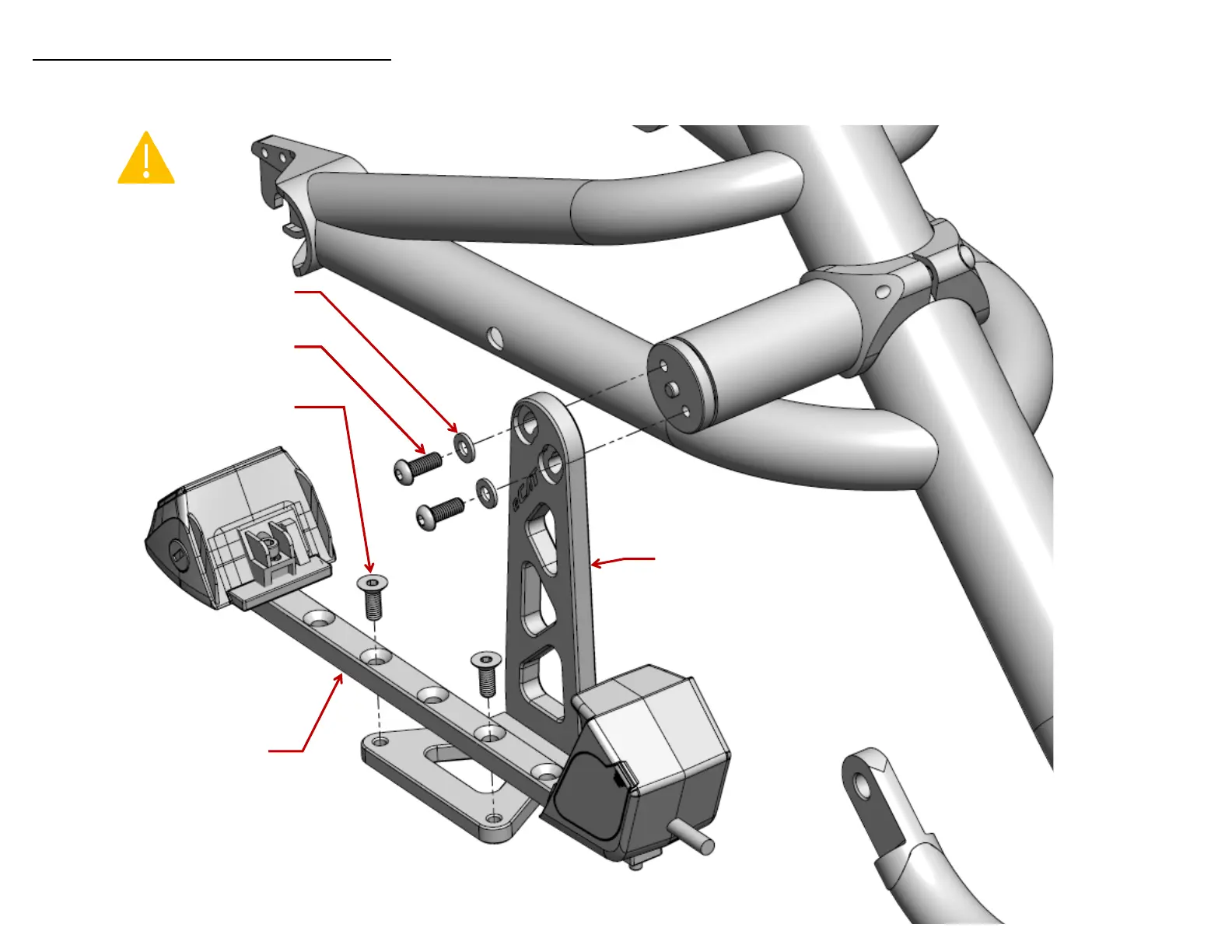

EKIT BATTERY RAIL ASSEMBLY
M6 SMALL OD WASHER (2x)
BATTERY MOUNT PLATE WELDED
# BC1421
M6x16 BHCS (2x)
LIGHTLY GREASE THREADS
M6x16 BHCS (2x)
LIGHTLY GREASE THREADS
M6x16 FHCS (2x)
TORQUE 5Nm (40INLBS)
BATTERY RAIL ASSEMBLY
DO NOT TIGHTEN
BOLTS ALL THE
WAY YET UNLESS
SPECIFIED
