Catrike MAX - Page 37

REV 12.18.24 Pg.36 MAX

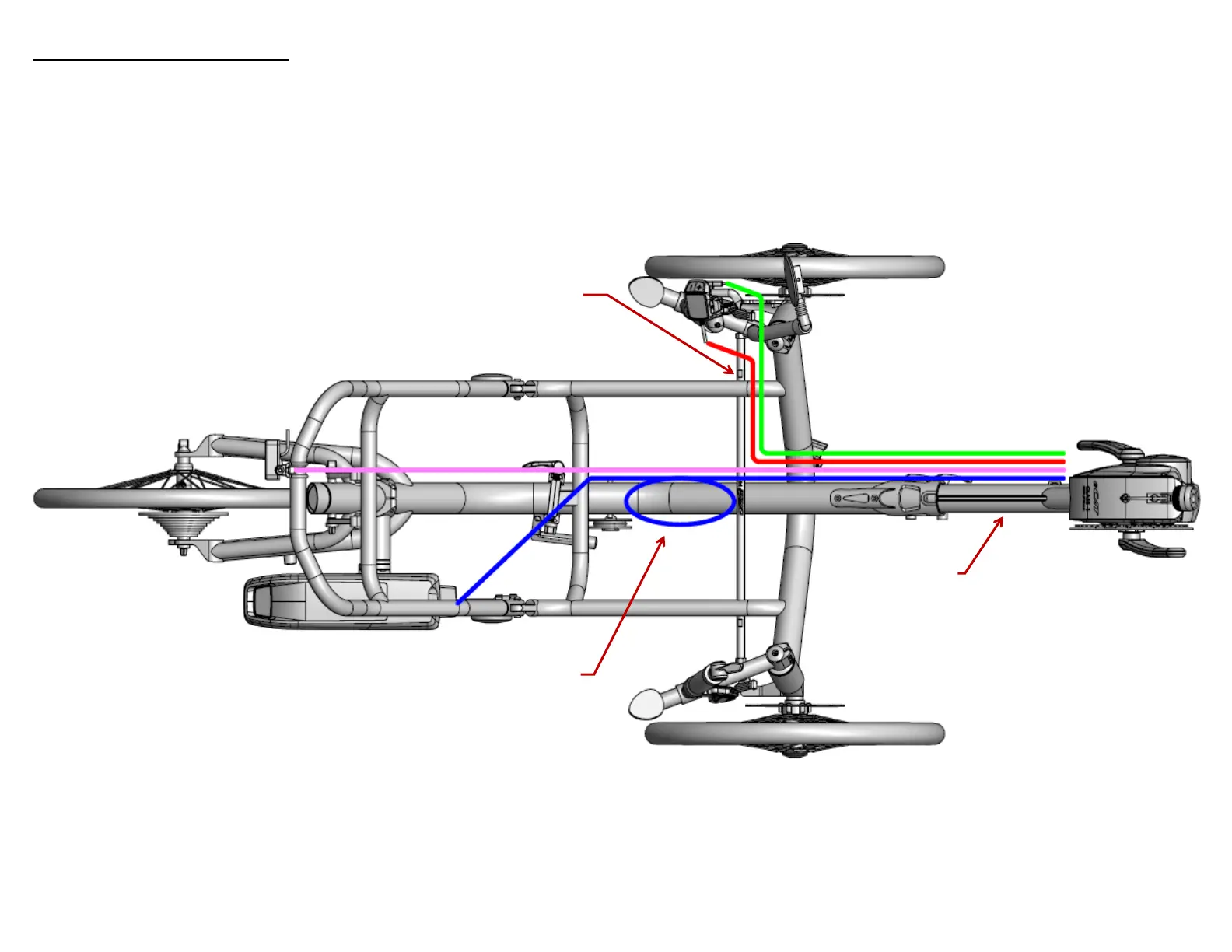

EKIT CABLE ROUTING
SPEED SENSOR CABLE
CONTROLLER CABLE
BRAKE LIGHT CABLE
BATTERY CABLE W/ DISCONNECT
ZIP TIE CABLE
CLUSTER TO
BOOM AND
BOOM CLAMP
ZIP TIE CABLES TO
TIE ROD AND
ENSURE THEY DON’T
SNAG UNDER FULL
STEERING LOCK
LOOP & ZIP TIE
EXCESS POWER
CABLE UNDER
SEAT MESH
