Cayin CS-100A - Rear Panel; Signal Input Terminal; Signal Output Terminal; Tubes Selection Switch

8
Rear Panel
1. Signal Input Terminal
Used for audio source input.
2. Signal Output Terminal
Used for audio source output.
3. Tubes Selection Switch
Used to select tube EL34 or KT88.
4. Right Channel Output
Used to connect with the right channel of speaker.
5. Left Channel Output
Used to connect with the left channel of speaker.
6. Power Socket with Main Fuse
Main fuse is located just below the power socket.
Replace the fuse with the same type as indicated.
Power tube replacing:
1. Refer to the "Tube Replacement" on page 11,
find out what types of tubes you can use for
replacement.
2. Tube Sel. on the rear panel must be turned to
position KT88,if you are going to use KT88
series of tubes for replacement.
3. Tube Sel. on the rear panel must be turned to
position EL34,if you are going to use EL34 series
of tubes for replacement.Bias adjustment
methods please refer to page 9.
Please turn off the amplifier when you are
turning the Tube Sel. Switch.
1 2 3 64 5 3

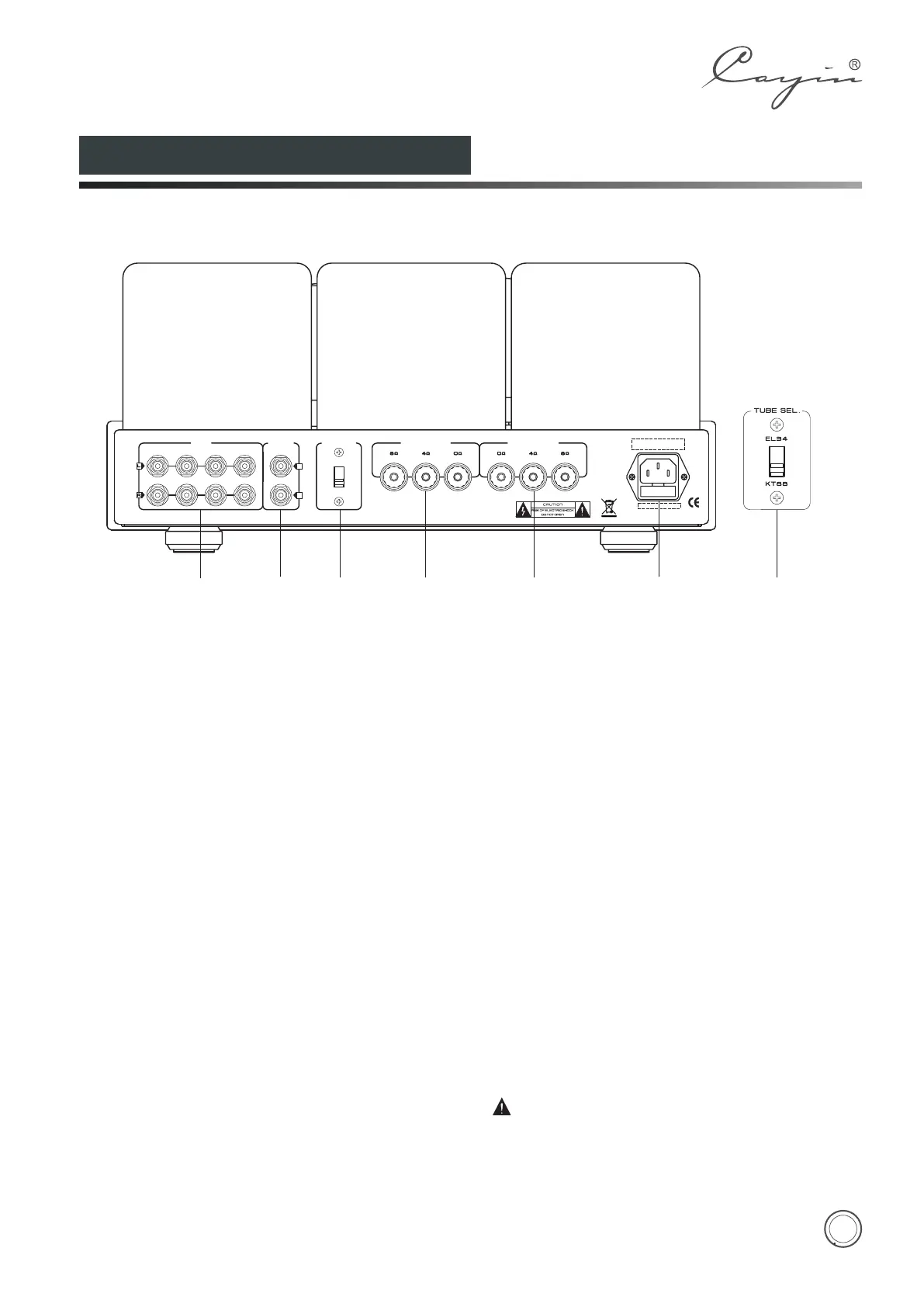

Diagram 2：CS-100A BACK
LEFT OUTPUT
RIGHT OUTPUT
INPUT
LINE2
LINE1
LINE3
PRE-IN
TUBE SEL.
EL34
KT88
MODEL : CS - 100A
SER.NO.:
VACUUM TUBE INTEGRATED AMPLIFIER
ZHUHAI SPARK ELECTRONIC EQUIPMENT CO.,LTD.
SUB OUT
OUTPUT
